Parameter index

Input  Power

110V AC or 220V AC selectable for universal use

 Power

Testing  range:0-0.5W

Output range:0-0.5W

Testing Accuracy:± 0.2% of  FSR

Output Accuracy:± 0.2% of  FSR

Data Record

Sampling  rate:1Hz; 1 samples/sec

Recording  rate:1Hz; 1 point/sec

Recording  condition:

Channel Features

Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure

Channel Control Mode

Independent Control

Voltage

Constant Voltage Range

0.75V~5V

Accuracy

± 0.1% * FSR

Stability

± 0.1% * FSR

Current

Per Channel Current Range

Accuracy

± 0.1% * FSR

Stability

±0.1% * FSR

Time

Current Response Time

The Current gets to 100mA Hardware Response Time is  30ms

Step Time Range

0.1s≤Single Step Time Range≤365*24 h,

Time Form Support 00:00:00(h,min,s)

Charge

Charge Mode

Constant Current Charge,Constant Voltage Charge,

CC-CV Charge ,CP-Charge

End Condition

Voltage,Current,Relative Time,Capacity,

Discharge

Discharge Mode

Constant Current Discharge  CP-D CR-D

End Condition

Current,Current,Relative Time,Capacity,

Pulse Model

Charge

Constant Current,Constant Power

Discharge

Constant Current,Constant Power

Min Pulse Width

500ms

Pulse Number

Single Pulse Step Support 32 different Pulse

Charge r To Discharge

One Pulse Step Can Support Continuous Charge And Discharge Change

Stop Condition

Voltage, Relative Time

DCIR Testing

Support Custom Access Point And Count The DCR

Cycle

Loop Measure Range

1~65535 times

Max Steps Per Loop

254

Nested Loop

Nested loop Function,Max Support 5 Layers

Protection

Software Protection

l Power-down Data Protection

l Setting Protection Condition,Setting Parameter:Low Voltage limit,Upper Voltage limit,Low Current limit,Upper Current limit,Delay Time

Input impedance

≥1 MOhm

Voltage and Current Testing Sample

4-wire connecting

Noise

<85dB

Data Management

MySQL Database

Communication Means

TCP/IP Protocol

Data Output

EXCEL,TXT

Communication Interface

Ethernet Port

Main Channels

8

Dimension

245x197x60mm

Working Temperature Range

0℃~40℃

Storage Temperature Range

-10℃~45℃

Working Environment Relative Humidity Range

≤70% RH

Storage Environment Relative Humidity Range

≤80% RH

Item

Qty

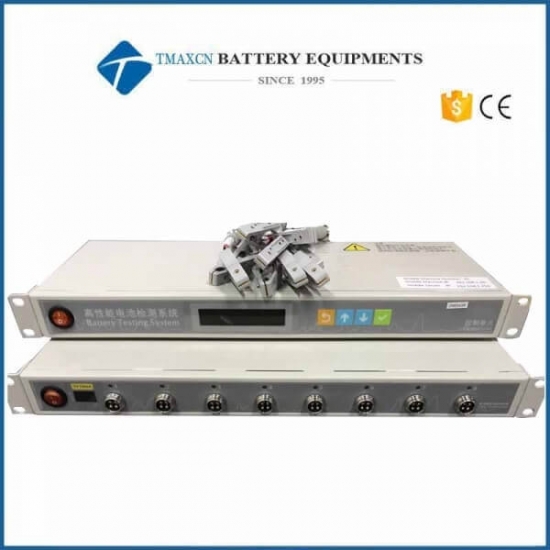

Lithium battery tester

1 set

Battery tester controller

1 set

Coin cell testing clamp

8 pcs

Software CD

1 pcs

Required Power line

2 pcs

Web line

2 pcs
