Manual Aluminum-Laminated Film Pouch Case Punching Forming Machine for Pouch Cell Production
Model Number:
TMAX-SCK200Dimension(L*W*H):
800x500x1850mmNet Weight:
450kgCompliance:
CE CertifiedWarranty:
One Year limited warranty with lifetime supportMOQ:
1Payment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Al-laminated Film Manual Punching Forming Machine for Polymer Battery/ Pouch Cell Cup FormingNext:
Pouch Cell Case Forming Machine for Aluminum-Laminated Films
Manual Aluminum-Laminated Film Pouch Case Forming Machine for Pouch Cell Production

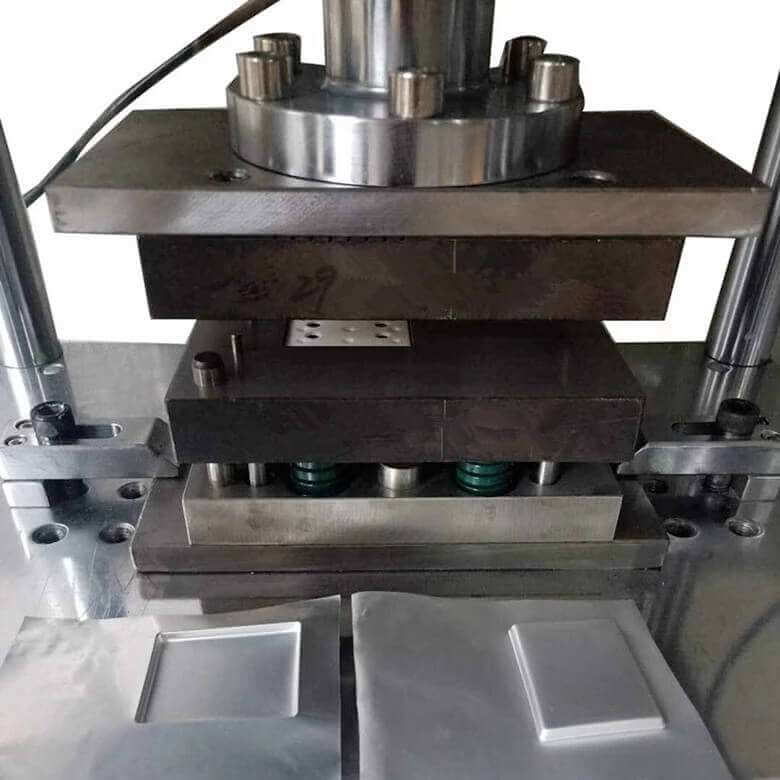

TMAX-SCK200 is a CE Certified cup forming machine used in the production line of making pouch cell batteries with optional size range. It is used to prepare polymer cases made of Aluminum Laminated Films. To ensure continuity and compatibility for customer's research, adjustable depth (spacers is included in standard package) to directly match the electrodes cut by electrode cutting machine.
SPECIFICATIONS:
Model |
Lab Polymer Battery Pouch Forming Machine TMAX-SCK200 |
Source voltage |
AC 220V/110V, 50/60HZ |
Power |
100W |
Warranty |
Two years limited warranty with lifetime support |
Advantages |

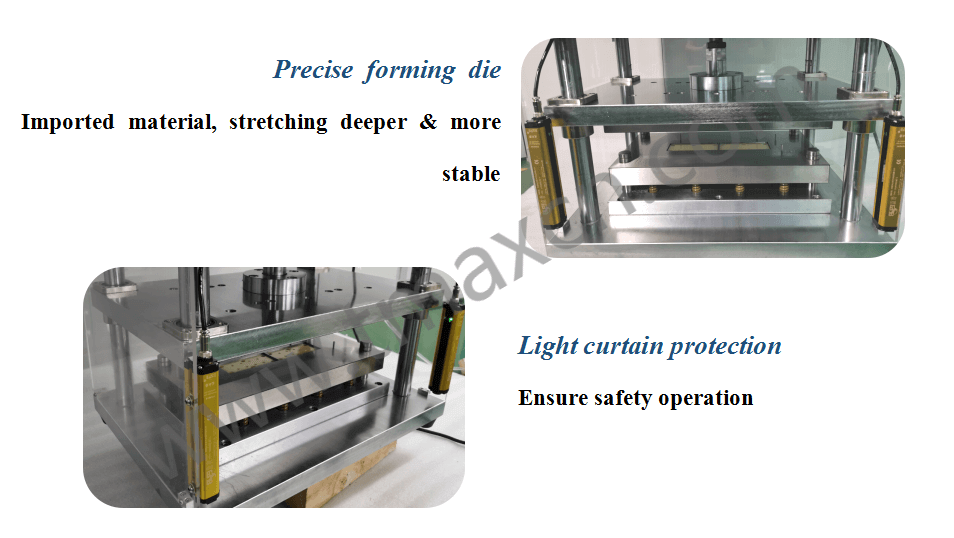

1 Structure of guide pin, slide up and down smoothly with high precision 2 Change mould, adjust tensile depth simply, quickly 3 Use screen and casing protection, guarantee safety 4 High strength of chrome steel and aluminum alloy, surface roasts the paint processing through environmental protection electroplating |
Suitable aluminum film thickness |
0.1-0.2mm |
Suitable mold size |
Customized as customer's request, with punching depth ≤24mm |
Max. Cup Depth |
Single pit punching depth ≤24mm |
Output |
200-400EA/H |
Output pressure |
5T |
Air source |
0.5-0.7MPa |
Mold materials |
SS136 Die steel |
Dimension (L*W*H) |
460*320*925mm |
Weight |
About 130kg |
