Punching Forming Machine

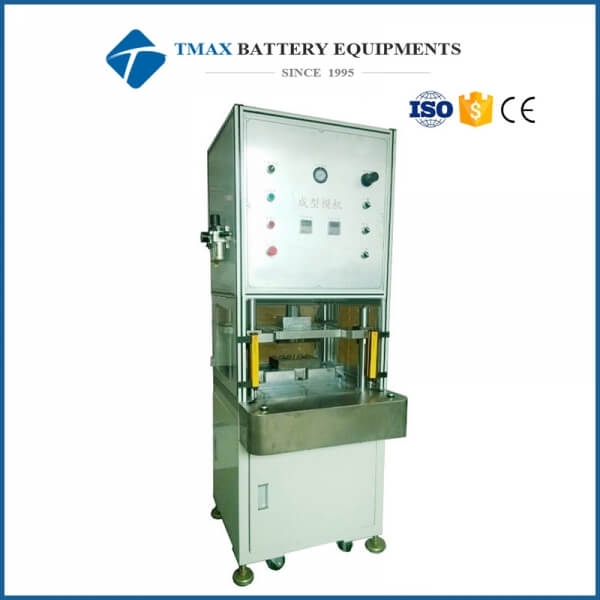

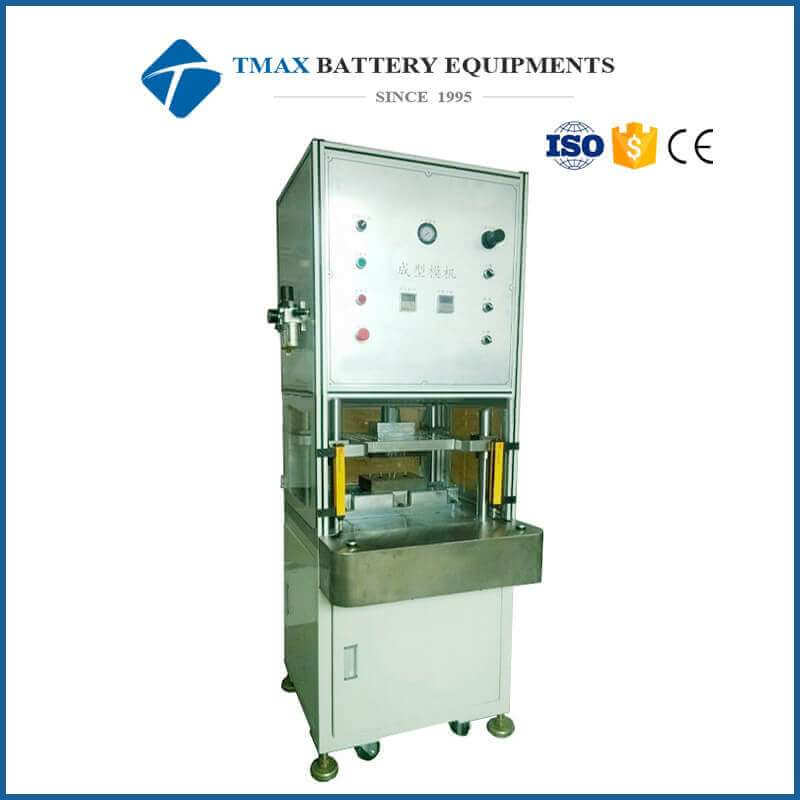

Al-laminated Film Manual Punching Forming Machine for Polymer Battery/ Pouch Cell Cup Forming

  • Model Number:

    TMAX-SCX300
  • Dimension(L*W*H):

    800*760*1900mm
  • Net Weight:

    1200kg
  • Compliance:

    CE Certified
  • Warranty:

    1 year
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details


Al-laminated Film Manual Punching Forming Machine for Polymer Battery/ Pouch Cell Cup Forming


DESCRIPTION:

This pouch forming machine is mainly used for lithium battery production line, it's mold can be bespoked according to customers' requirements.

TMAX-SCX300 Manual Aluminium Punching Machine is used for lithium polymer battery/ pouch cell cup forming in the production line of making pouch cell batteries.

The machine is used to prepare polymer cases made of Aluminum Laminated Films.


Main technical parameters

Manual Aluminium Punching Machine TMAX-SCX300

Source voltage

AC 220V/110V, 50/60HZ

Power

2500W

Suitable aluminum film

0.1-0.2mm

Warranty

One year limited warranty with lifetime support

Suitable aluminum film

320*200mm(L*W), customized, with punching depth ≤6mm

Output

200-500EA/H

Output pressure

0-5T, Adjustable

Air source

0.5-0.7MPa

Mold materials

S136 Die steel

Dimension(L*W*H)

800*760*1900mm

Weight

About 1200kg
