Lithium Battery Electrode Cutting Machine for 18650 26650 21700 32650 4680 Cylindrical Cell

Model Number:
TMAX-EC-CM
Input Power:
1500W
Dimension(L*W*H):
1200*1000*1100mm
Net Weight:
400kg
Compliance:
CE Certified
Warranty:
One Year limited warranty with lifetime support
Payment:
L/C D/A D/P T/T Western Union
Delivery Time:
5 days

WhatsApp : +86 13003860308
Email : David@tmaxcn.com
Email : Davidtmaxcn@gmail.com
Wechat : 18659217588

Product Details

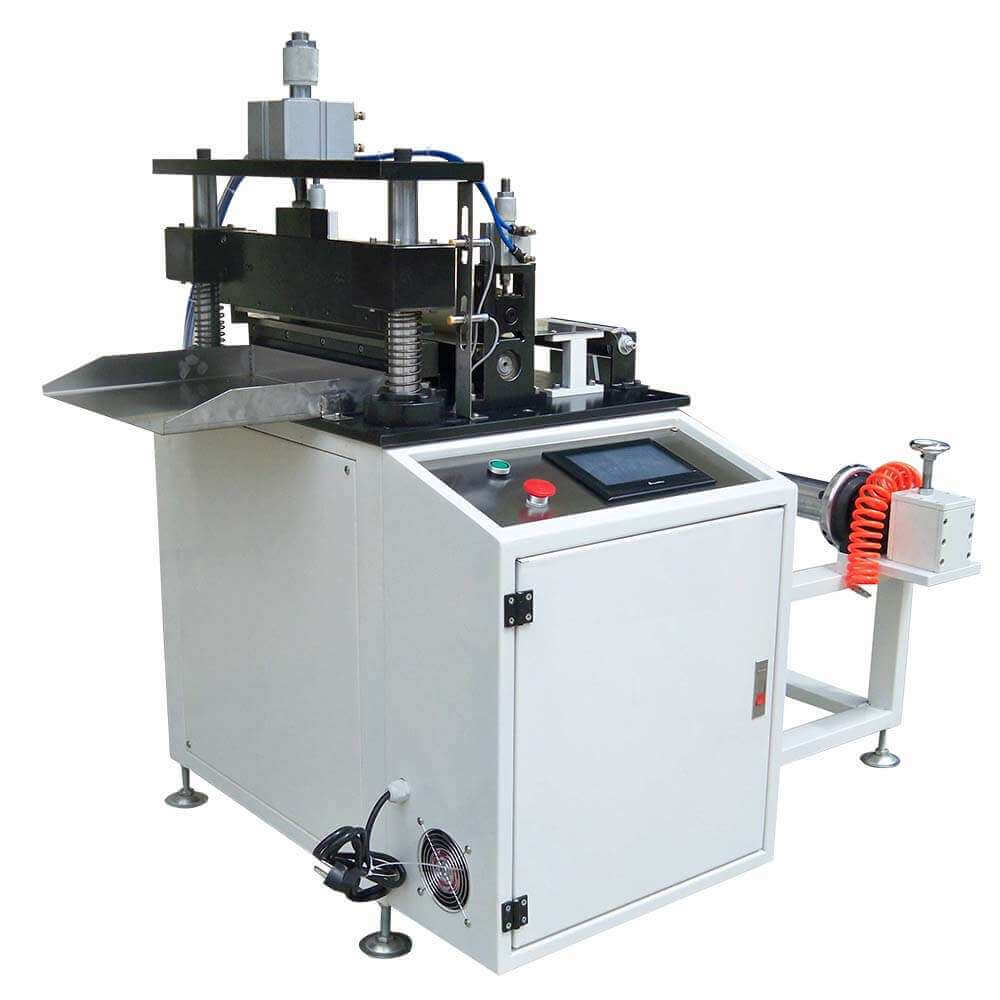

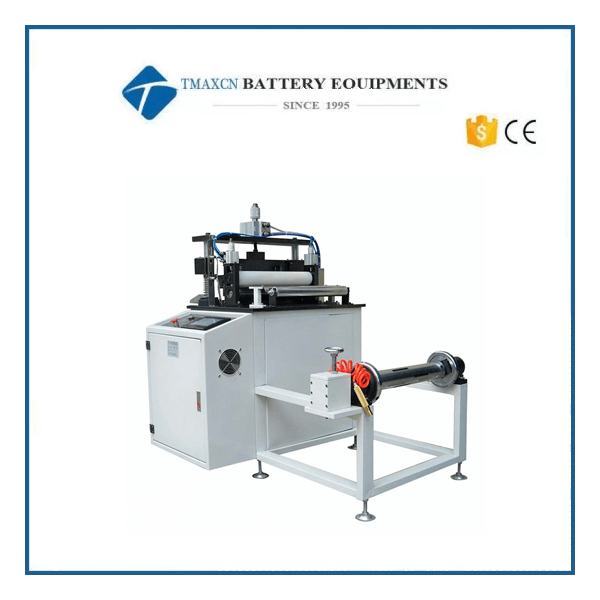

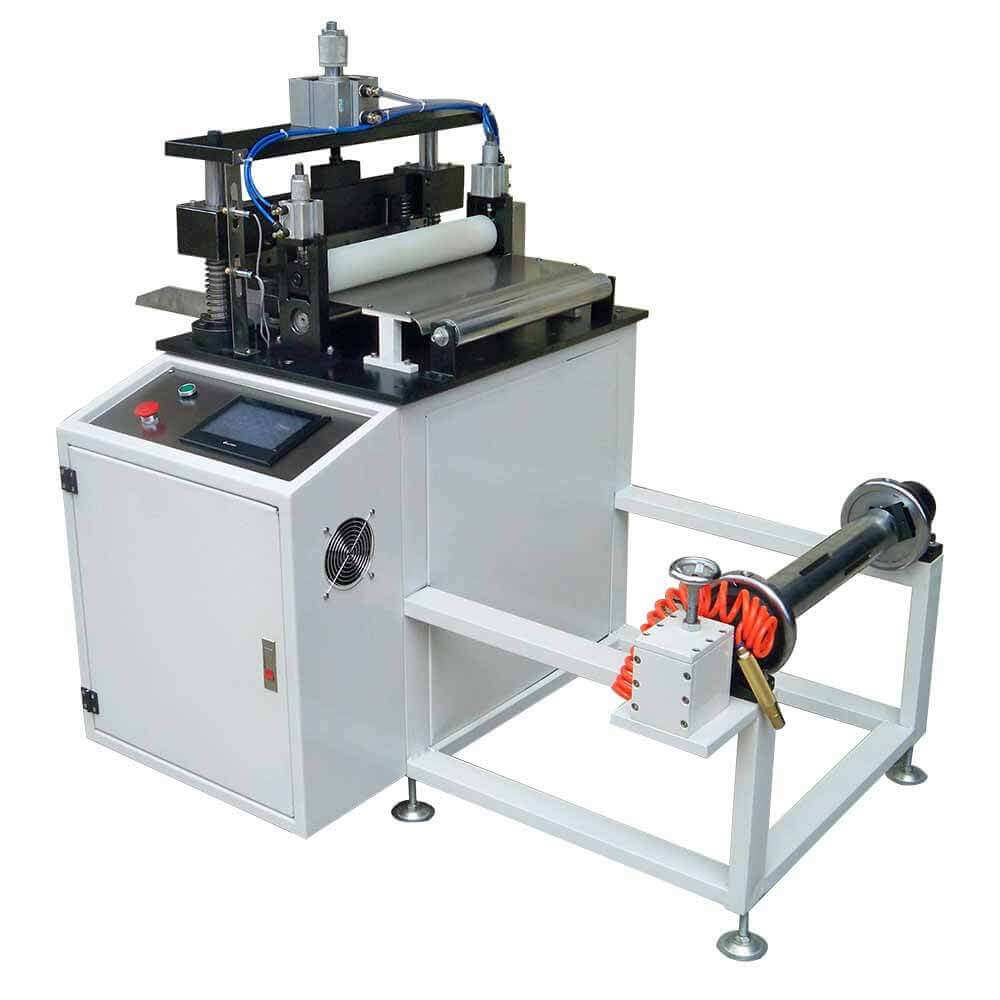

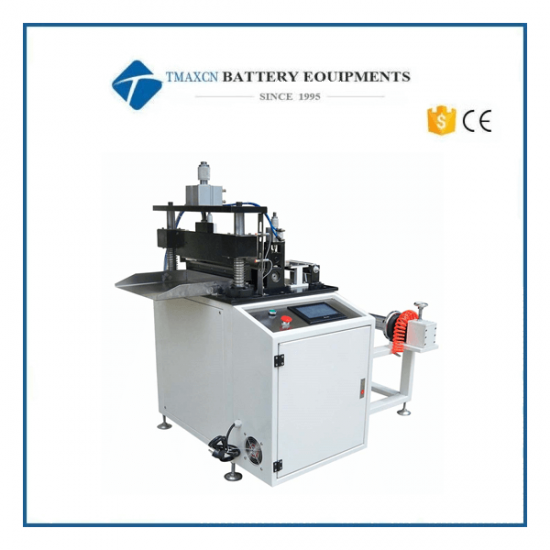

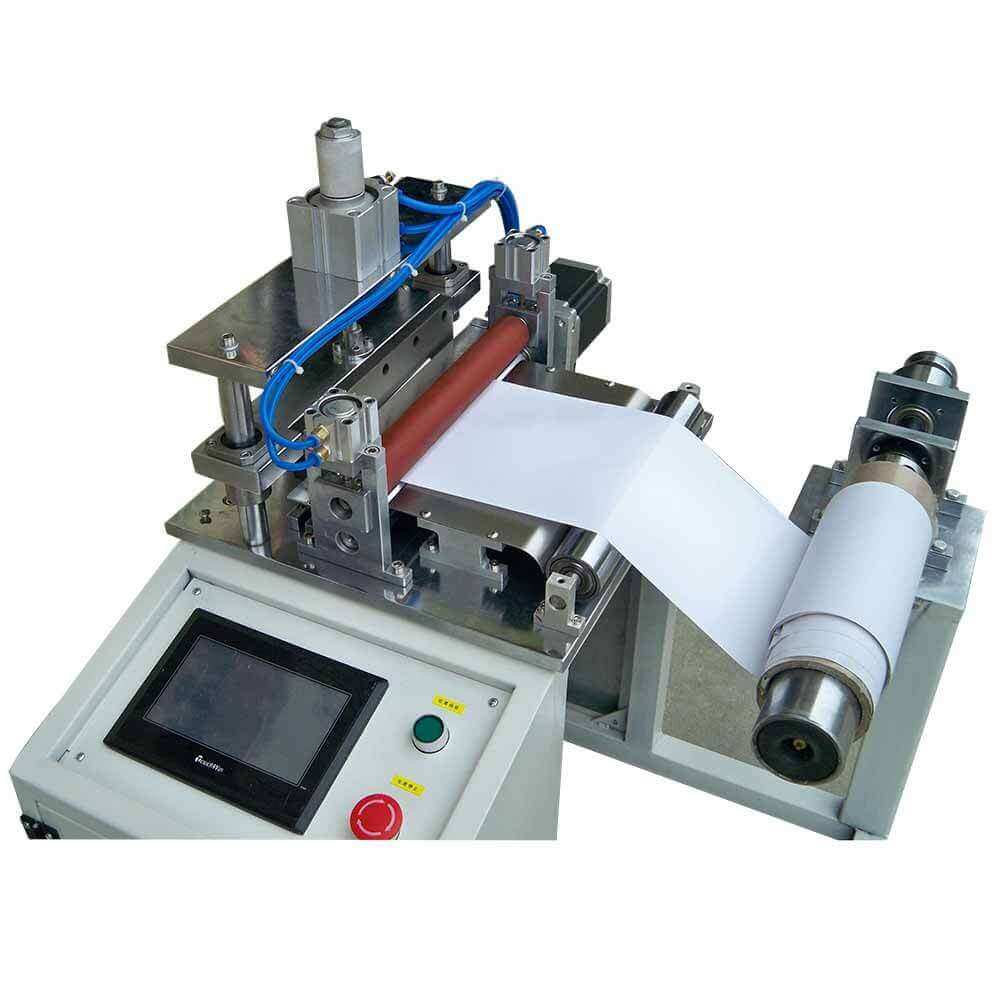

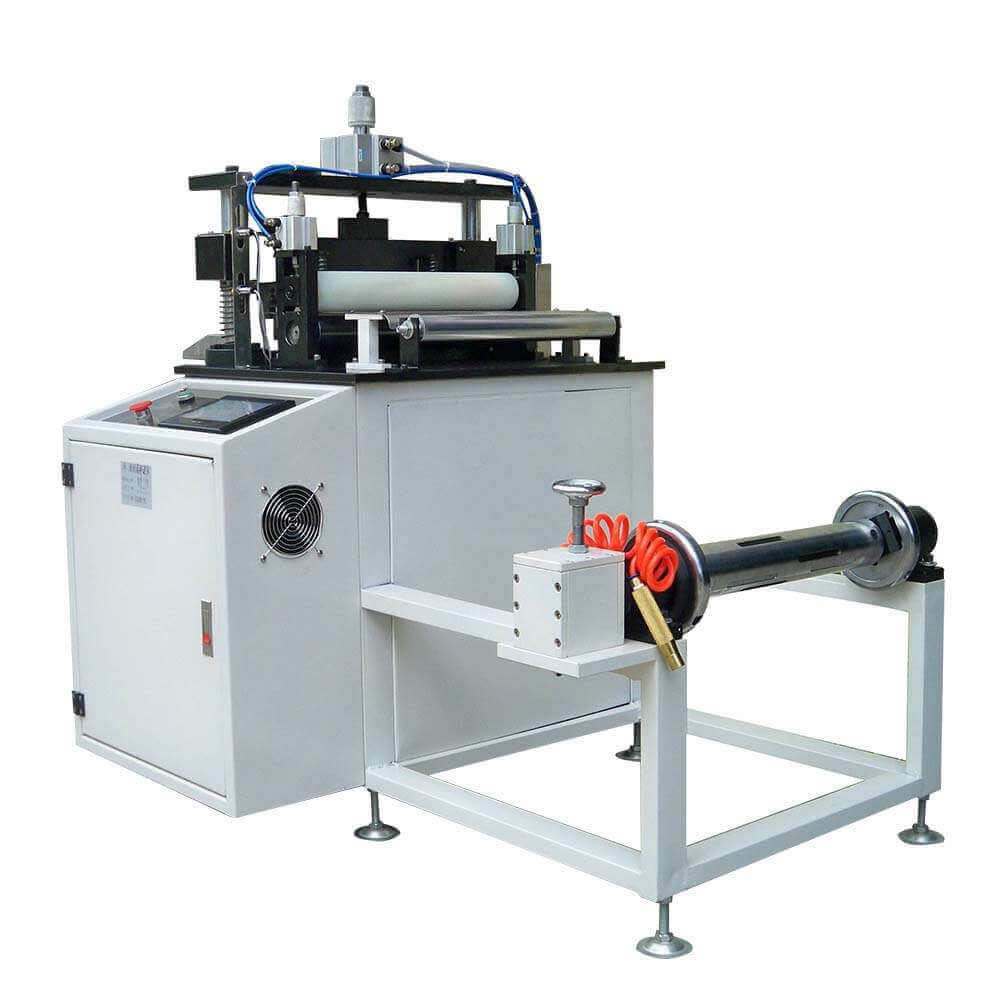

Lithium Battery Electrode Cutting Machine for 18650 26650 21700 32650 4680 Cylindrical Cell

Features

1. The Automatic shear cutting machine is used for lithium battery big electrode cutting after coating process or after continuous rolling press process. Cut big electrode is more easy for slitting or punching to small pieces for battery making.

2.This cutter machine can also used for aluminum laminated film cutting.

3. TMAX-EC-CM model battery electrode cutting machine has a 500mm cutting width with set cutting length, it can be used for lithium battery lab research and production line.

Specifications

Model	TMAX-EC-CM
Source voltage	AC 220V/110V, 50HZ/60HZ
Power	1500W
Warranty	One Year limited warranty with lifetime support
Max electrode width	500mm(The cutting length can be arbitrarily set)
Cutting length	0.25-10m(adjustable)
Cutting thickness	80-300um
Cutting quantity	1-99999 free settings
Cutting material	Battery continuous or clearance cathode and anode electrode Aluminum laminated film
Cutting speed	1-8m/min,adjustable
Cutting accuracy	± 0.25mm
Setting accuracy	± 0.5mm
Trimming precision	+ 0.5mm
Dimension(LWH)	120010001100mm
Weight	About 400kg

Basic configuration

Import stepping motors and drives	1Set
Magnetic particle tension control mechanism	1Set
Taiwan WeiLun touchscreen and Panasonnic PLC	1Set
Transmission roller and steel roller	1Set
Ø75 inflatable shaft	1Set
Material pressing cylinder	1Set
Acrylic cutting cylinder	1Set
Magnetic powder clutch	1Set
Photoelectric eye	1Set
Cut-off knife:SKD11	1Set
