Laboratory Precision Coin Cell Battery Disc Cutter Machine
Model Number:
TMAX-JK-CPJ-CR20Dimension(L*W*H):
110x150x235mmNet Weight:
6kgCompliance:
CE CertifiedWarranty:
1 yearMOQ:
1Payment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Electric Coin Cell Crimping Machine for All Coin CellsNext:
CR2032 Coin/Button Cell Crimper Crimping Machine for Coin Cell Pilot Machine
Laboratory Precision Coin Cell Battery Disc Cutter Machine
Features

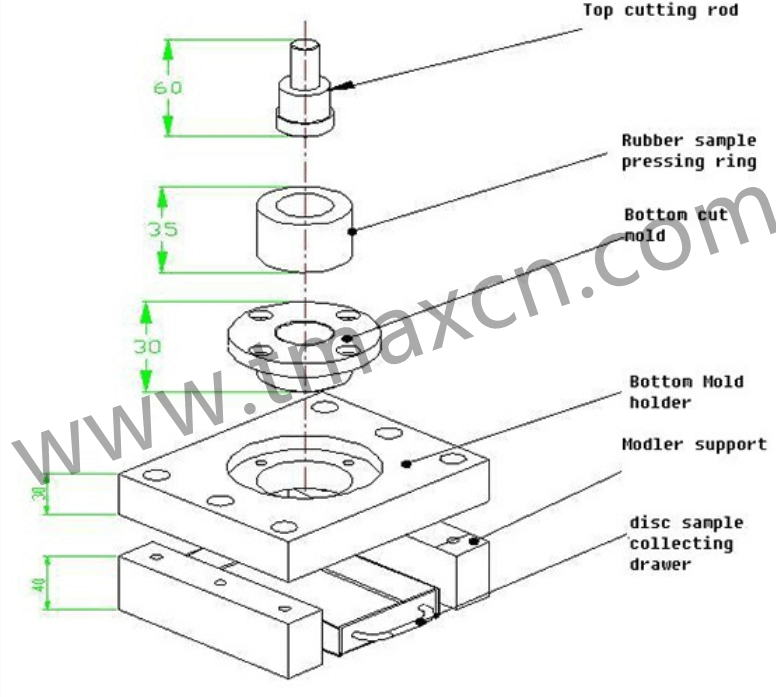

TMAX-CP60 is a compact disc cutter with quality sliding rail with ball bearing for precision cutting. It can be easily placed into a glove box with a transition chamber diameter larger than 230mm. This tool is manually operated and is designed for cutting round discs from a thin metal sheet/foil (< 0.5 mm) or separator film (<30um). The resulting discs can be used as electrode/separator discs of split test cell and coin cell for battery researchers as well as TEM sample preparation. We also supply quality button cell crimper for you! Your satisfaction is our nice purpose!
Specifications
Structure |
Major structural material: Cr Plated Steel |
Cutting Die |
Optional 3 - 24mm customized dies are available upon request |
Product Dimensions |
L110×W150×H235mm Compact size which can be put into glovebox through air lock chamber |
Warranty |
Two years limited manufacturer warranty with lifetime support. |
Application Notes |
1. If you are going to make CR2016, CR2025 or/and CR2032 coin cell batteries, you will need at least three cutting dies: |
Compliance |
CE Certified |
Net Weight |
6 kg |
