Jar Ball Mill

Laboratory Grinding Jar Rotating Roller Jar Mill with 2 Working Stations with Self-Locking Device

  • Model Number:

    TMAX-PM-2

  • Input Power:

    0.75KW

  • Dimension(L*W*H):

    950*480*690mm

  • Net Weight:

    80KG

  • Compliance:

    CE Certified

  • Warranty:

    One years limited warranty with lifetime technical

  • Payment:

    L/C D/A D/P T/T Western Union

  • Delivery Time:

    5 days
Product Details

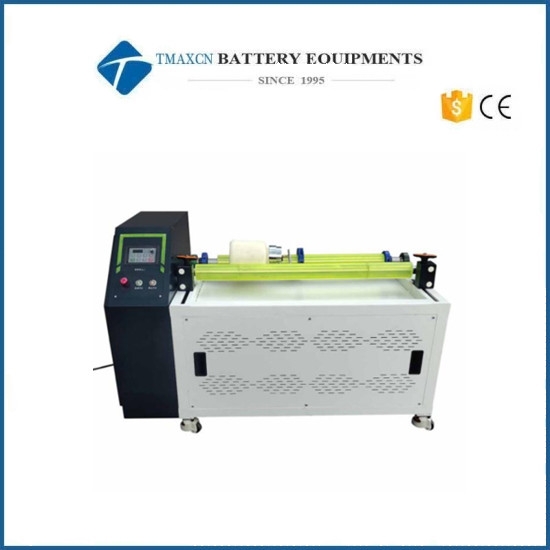

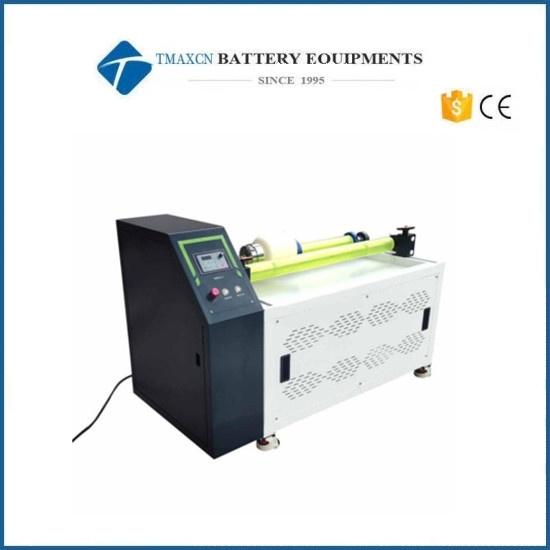

Laboratory Grinding Jar Rotating  Roller Jar Mill with 2 Working Stations with Self-Locking Device

Features

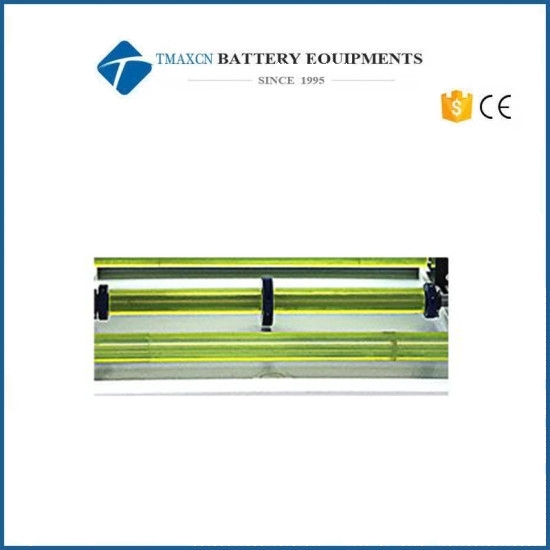

Quick lock ball mill tank


Adopt this kind of fast lock fixed way, solve the trouble of lock screw, configure portable hook device, convenient handling. You can also choose  semi-automatic lifting ball material separation system, fast lifting jars and handling balls material separation.




The control panel

Frequency control, high precision speed, with under voltage, over current,
overload protection. Equipped with high-grade emergency stop and start
button with light.




Self-locking device

Adopt dial bead self-locking device, manual operation can be locked, safe,
reliable and convenient, solve the problem of adjusting the distance between
shafts need to use wrench tools to operate.




Wearable objects

Wear resistant materials (polyurethane, rubber, etc.) are used for driving shaft
and driven shaft. Wear resistant and sliding materials are used for retaining
blocks to reduce friction coefficient.



Introduction

Tin ball mill works - root outsourcing wear-resisting rubber pieces of main shaft
by motor pulley connection do drive pulley, the outsourcing on the spindle
wear-resisting rubber pieces of relative motion between tanks, namely with ball
mill tank surface friction drive another root - driven shaft to realize rolling,
grinding medium and material of ball mill tank - up with the cylinder rotation
increases to a certain height, The material is crushed under the impact of the
grinding medium and the friction and shear caused by the rolling and sliding of
the grinding medium. The equipment has the advantages of novel appearance
design, simple structure and convenient use.



Use

Tank mill ball mill is a laboratory, small batch production with ultra-fine grinding,
mixing equipment. This machine is beautiful and novel, compact structure,
easy to operate, high efficiency, uniform grinding particle size, is the scientific
research, teaching, test, production of preferred equipment. It can be widely
used in electronic materials, magnetic materials, biological medicine, ceramic
glaze slurry, metal powder, non-metallic minerals, new materials and other
industries.



Characteristics

1. It can be used in single or multiple cans at the same time, and multiple
samples can be ground at the same time;
2. Timing, intermittent shutdown or continuous cycle operation;
3. The outer wear-resistant adhesive parts of the shaft are made of special
materials, which are durable;
4. Suitable for material fine grinding, crushing, mixing, material precipitation
prevention and other technological requirements, high efficiency
5. Can be customized according to customer requirements (multi-station

customization, multi-stage power output customization, etc.)


Name

PM-2-5

PM-2-15

PM-2-20

Overall dimension

950*480*690

1130*550*700

1350*650*700

Weight(kg)

60KG

80KG

95KG

Specification

Y0.75-4B3

Y1.5-4B3

Y2.2-4B3

Frequency converter

0.75KW/220V

1.5KW/220

2.2KW380V

Roller speed(r/min)

50-450

40-420

40-340

Maximum load per jar

35KG

80KG

120KG

Handgear/protective cover

optional

optional

optional
