Laboratory electrode stacking machine for pouch cell production line
Model Number:
TMAX-JK200Dimension(L*W*H):
200mm Max.Compliance:
CE CertifiedWarranty:
One Year limited warranty with lifetime supportDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Laboratory Automatic Layer by Layer Stacking Machine for Pouch Cell AssemblyNext:
Lab Electrode Die Cutter for Pouch Cell electrode Sheet with Two Size Range Optional

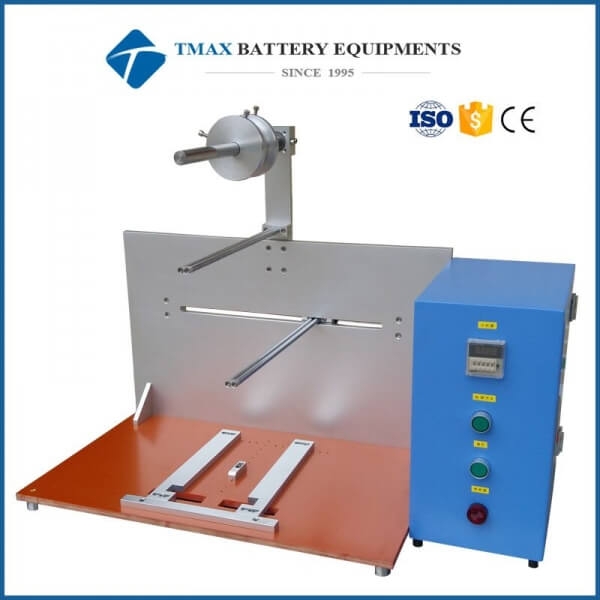

Laboratory electrode stacking machine for pouch cell production line

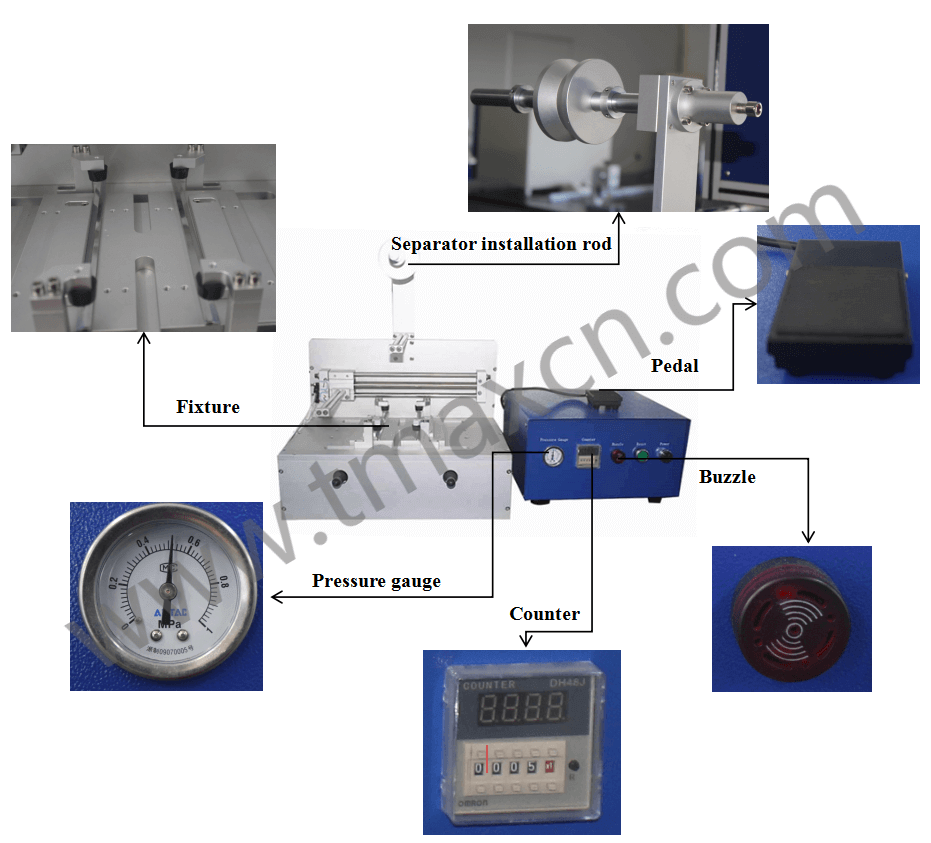

1 TMAX-JK200 Battery stacking machine is a semi-automatic stacking machine. It is an ideal tool for stacking multiple layers of positive & negative electrode and separator for pouch cell.

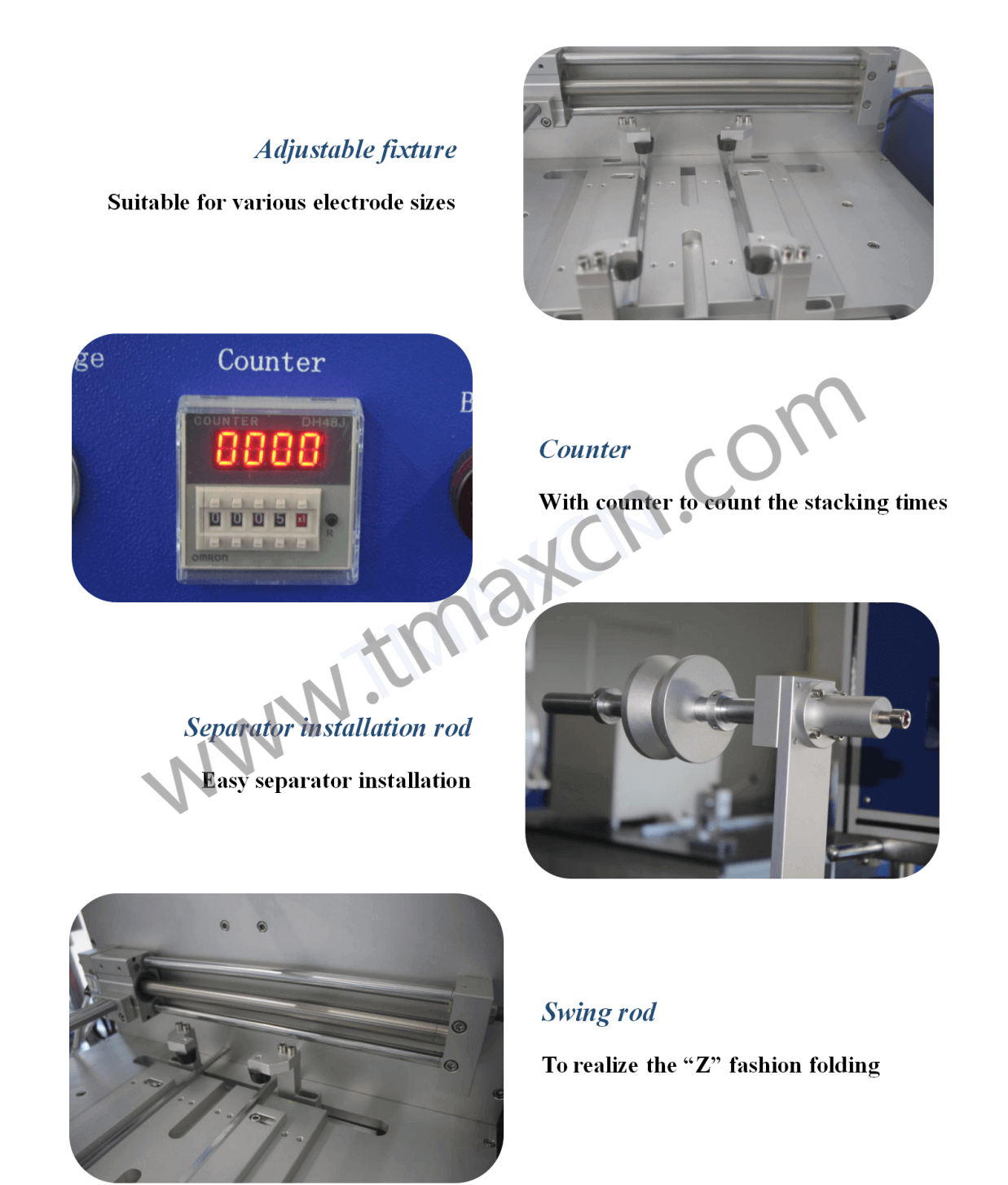

2 The battery stacking machine is used for lithium battery stacking process, put the cathode, anode electrode and battery separator Z shaped lamination.
| Model |
Battery Stacking Machine TMAX-JK200 |
| Voltage
supply |
AC
110v-220V Customized by requirements, 50HZ±10% |
| Power |
100W |
| Warranty |
One Year
limited warranty with lifetime support |
| Stacking
Layer Length |
L(0-200)mm,
W(0-200)mm |
| Max
separator feeding diameter |
Φ250mm |
| Fixed
travel distance |
400mm |
| Travel
cycle |
1 - 9999
cycles |
| Air
supply |
0.25-0.55MPa
(40 - 80 psi) |
| Machine
dimension(L*W*H) |
650*400*700mm |
| Controller
dimension(L*W*H) |
200*300*380mm |
| Weight |
40kg |
| Package
size for stacking machine |
660*740*430mm |
| Package
size for control box |
470*330*520mm |
