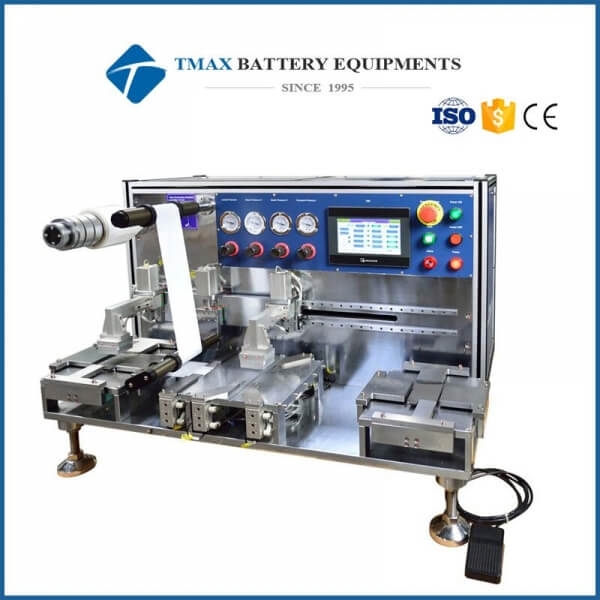

The equipment realizes manual loading, subsequent electrode position correction and lamination. The stacking process is completed automatically. It has the characteristics of high stacking efficiency and high precision. Different electrode sizes can be realized by adjusting the fixture. It is very suitable for the R&D and sample production of stacking type lithium-ion battery. The equipment adopts single cantilever structure design, separator automatic constant tension control and automatic correction control.

Features

*The number of stacking layer can be automatically controlled according to the preset;

*The compatibility design is adopted, and the change of battery size can be realized by adjusting the positioning fixture, with a large adjustment range;

*PLC control, HMI operation, easy to use and maintain;

*Electrode manual loading, automatic positioning, manipulator automatic suction and automatic stacking;

*Separator automatic servo constant tension control.

*Separator automatic photoelectric correction control.

Technical parameters
