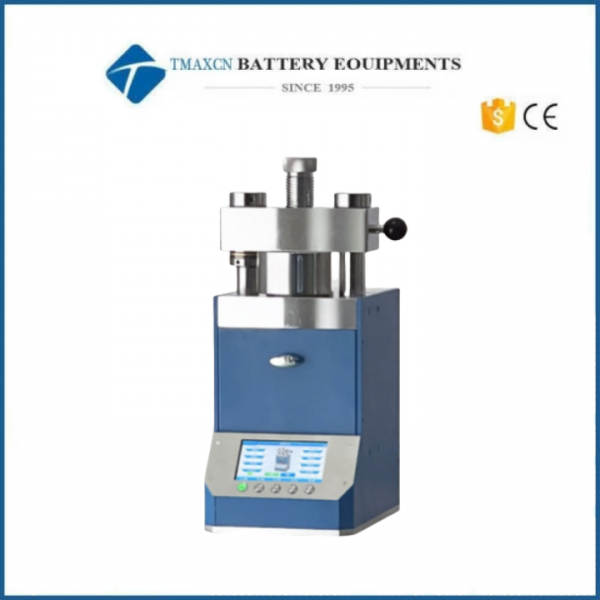

Instrument model

PP-40J

Pressure range

0-40T

Piston diameter

130 mm in chrome plated cylinder (d)

Pressurization process

Programmed Pressurization-Programmed Pressure Retention-Timed Pressure Relief

Holding time

0-999.59 minutes

Pressure conversion

Program automatically converts the pressure to which the sample is subjected

Liquid crystal display

4.3 inch LCD screen

Equipment protection

Steel plate protection with plexiglass door

Isostatic pressure

700MPa

Isostatic pressure chamber

22mm

Cylinder stroke

50mm (T)

Sample making characteristics

Upper plate rocker structure, more convenient operation

Dimension

280*460*660 (L*W*H)

Equipment power supply

220V/1500W

Equipment weight

180Kg

Dimension schematic
