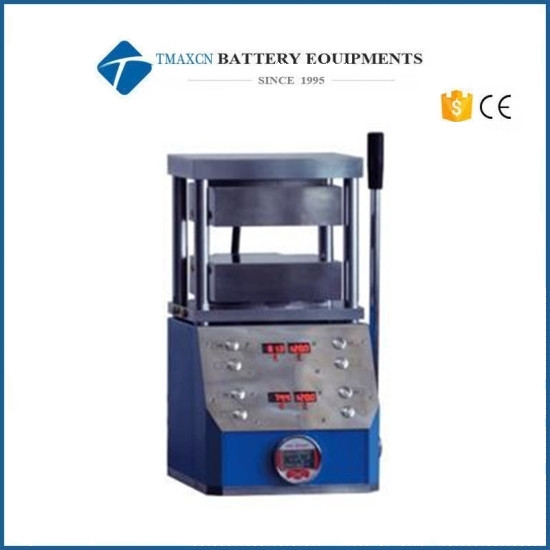

Lab Widened Manual Integrated Hot Hydraulic Press with Double Heating Plates 300C 500C
Model Number:
TMAX-SYJ-600ECompliance:
CE CertifiedWarranty:
One year limited standard warrantyPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Laboratory Intelligent -automatic Powder Tablet Press with Programmable Controller 20T to 100TNext:
15T 30T Mini Four Column Manual Powder Tablet Hydraulic Press
Lab Widened Manual Integrated Hot Hydraulic Press with Double Heating Plates 300C 500C
Features
New RYJ-600E series manual hot press is our company combined with market demand, developed a new small tonnage, widened type, integrated, double plate hot press. This machine satisfied to stress more stringent control accuracy, and wide size sample hot-pressing experimental users, for powder, rubber, plastic film and so on some sample experiment of high temperature solid samples can also be used as a small rheometer, is now widely used in scientific research, teaching, persistence, medicine, catalysis, chemical and other industries, can replace similar imported products.
Main Technical Parameters
Product name |
RYJ- 600E1 |
RYJ- 600E2 |
RYJ-600EG1 |
RYJ-600EG2 |
Pressure range |
0-10T(0-30Mpa) |
|||
Pressure conversion |
1t=3Mpa/1Mpa=0.33t |
|||
Piston diameter |
Dia65mm chrome plating cylinder |
|||
Type of pressure gauge |
Digital display, range 0.001-40.000Mpa, display precision 0.001mpa |
|||
Pressure mode |
Manual pressure |
|||
Temperature controller type |
XNNETS PLC programmed temperature controller (double temperature controller) |
|||
Temperature control range |
RT-600.0℃/0.1℃ |
|||
Type of hot pressing die |
Double die heating up and down (polished surface) |
|||
Heating die size |
180*180mm |
200*200mm |
180*180mm |
200*200mm |
Temperature of hot pressing die |
RT-300℃ |
RT-500℃ |
||
Heating die cooling method |
Cooling by natural or water cooler |
Cooling by natural or water cooler |
||
Equipment insulation Mode |
Imported heat shield |
Imported heat insulation board + stainless steel water cooling cycle heat insulation board |
||
Power |
220V/1800W |
220V/2500W |
||
Overall structure |
One-piece construction |
|||
Size of the machine |
280*320*520mm(The weight of the water cooler is not included) |
|||
Weight |
About 80-95kg |
|||
Model specification |
Water cooling machine (optional) |
