Vacuum Glove Box

Lab Stainless Steel Vacuum Glove Box

  • Model Number:

    TMAX-GBV-2
  • Dimension(L*W*H):

    800 x 650x 650mm
  • Net Weight:

    240 kg (520 lbs)
  • Compliance:

    CE Certified
  • Warranty:

    One Year Limited Manufacture Warranty with Life Time Support
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

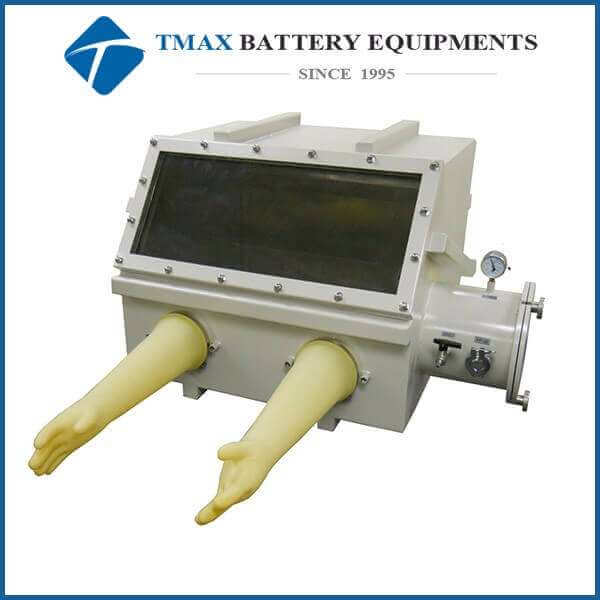

Lab Stainless Steel Vacuum Glove Box


DESCRIPTION:

1.The whole box is made of stainless steel, which is reinforced and sprayed plastic on surface so that the box is anti-corrosion and easy to clean.

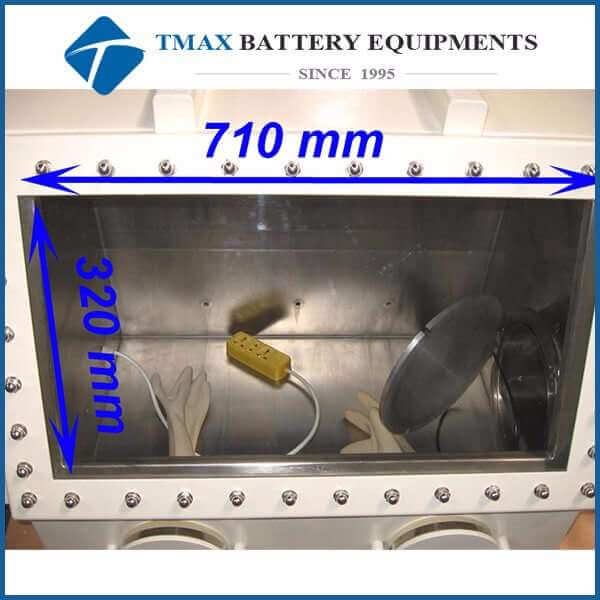

2.The inside of lab glove box can be seen clearly from the tempered glass visual window.

3.Installed electric bulb and socket can heat partially.

4. Thick latex gloves for operation have characteristics of sealing, reliable and durable.

5. The sealing device is designed new, reliable, and easy to start.

6. Water faucets are installed both inside and outside, which is easy for the gas or water to get in.

7. Two doors in transition cabinet solves the problem of pumping vacuum repeatedly for main box.


Parameters of Stainless Steel Vacuum Glove Box

No.

Model No.

Outline Dimension
(mm)

Box Size
(mm)

Transition Cabinet
(mm)

Glove Port
(mm)

Vacuum Degree

1

GBV-1

1030*570*530

600*500*500

Ф200*280

Ф145

0-0.1Mpa
Keep vacuum for
more than 12 hours

2

GBV-2

1295*715*675

800*650*650

Ф273*350

Ф145

3

GBV-3

1755*776*1010

1200*700*950

Ф350*400

Ф196



SPECIFICATIONS:

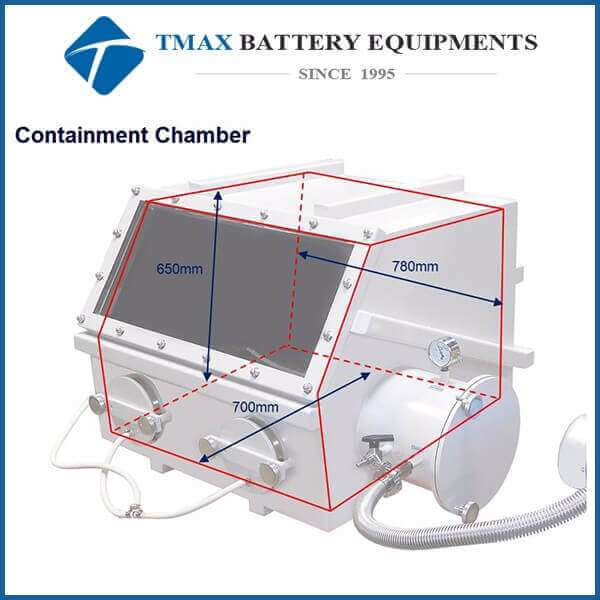

Glove Box Chamber

1 Case Material: Made of 11 gauge (5mm thickness) 304 stainless steel sheet with sport frame and plastic painting, which provide heavy duty structure for vacuum
2 Dimensions: 800mm(L) x 650mm(W) x 650mm(H)
3 Max. Positive Pressure: 810 Torr (1.1 atm)
4 Note: Gloves cannot work if pressure is higher than 810 Torr
5 Max. Vacuum Level: 0.5 Torr
6 Note: Stainless Steel case may deform at higher vacuum level

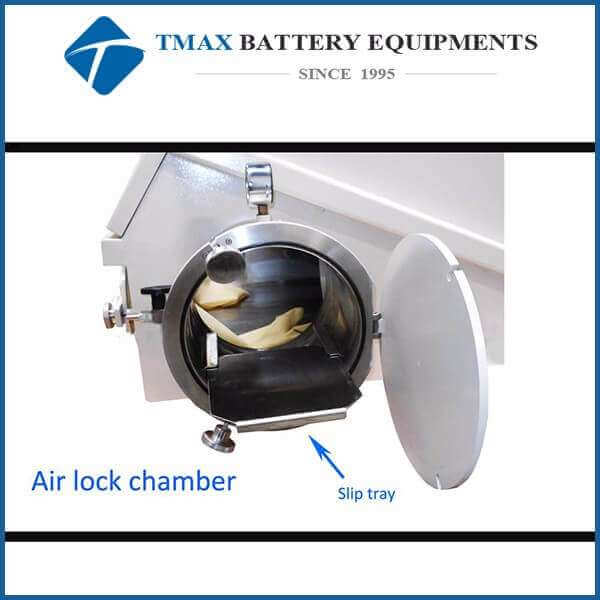

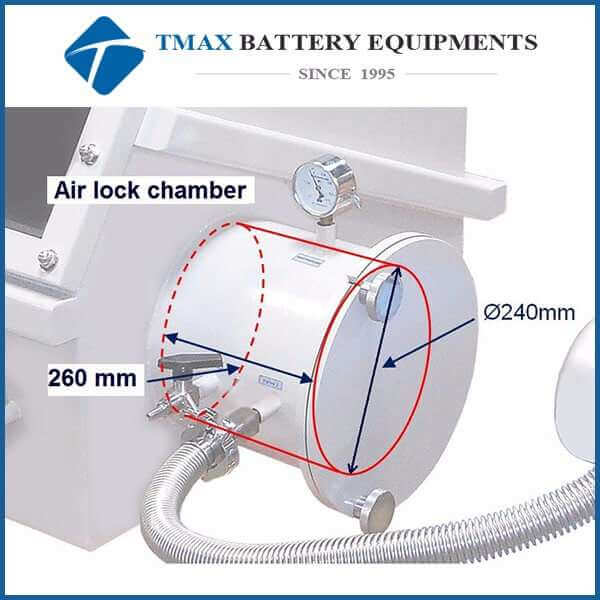

Air-lock Chamber

Dimensions: 273mm(ID) x 350mm(L)
Max. Vacuum Level: 0.05 Torr

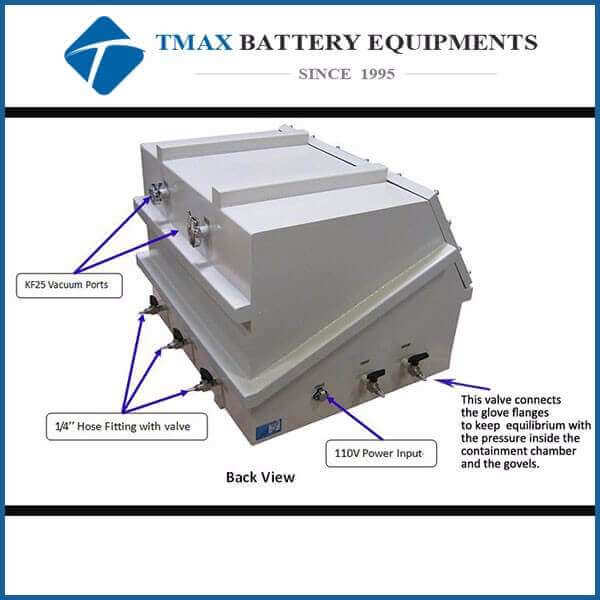

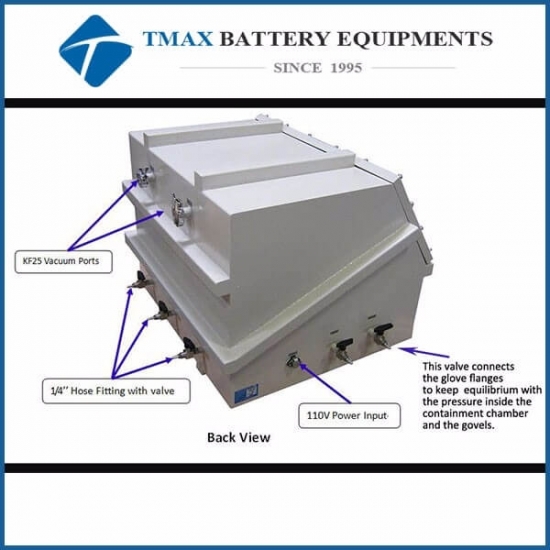

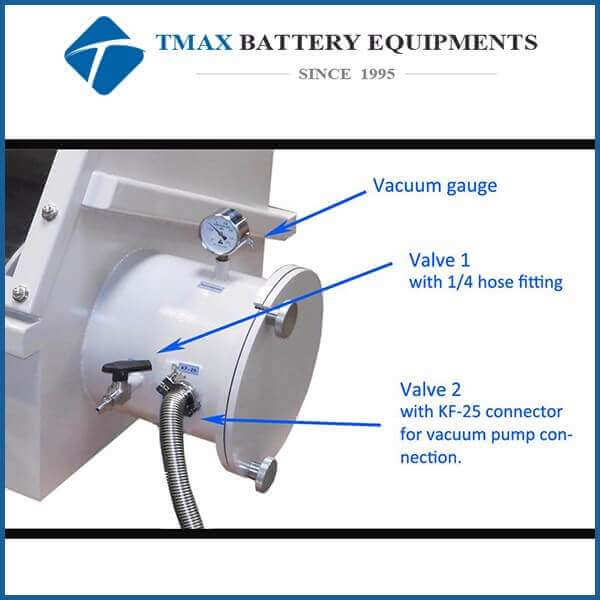

Vacuum gauge and valves

1 Two vacuum flanges are included for glove box to achieve vacuum to remove moisture and oxygen without expensive inert gas purging
2 Do not operate under vacuum status. Vacuum process is used for purging the glove box chamber before operation.

Leakage Rate in Glove Box Chamber

< 6 Torr/hour

Gloves

One pair of Latex Gloves are included for immediate use
Glove hole diameter : 139mm (2 pcs)

Shipping Dimensions

50" x 40" x 37"

Shipping Weight

240 kg (520 lbs)
