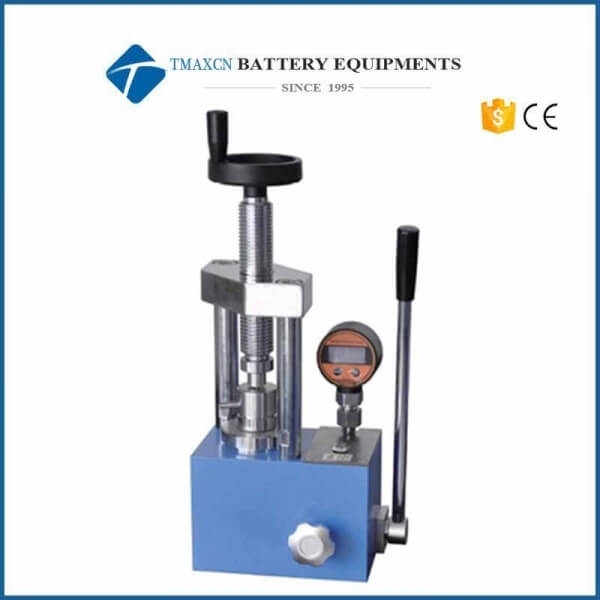

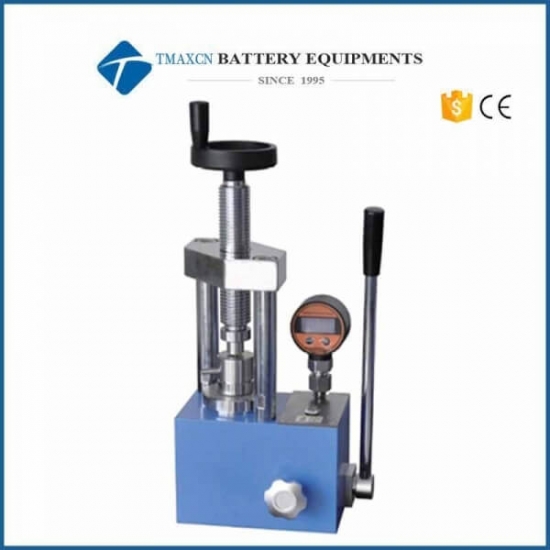

Lab Small 3T Manual Hydraulic Press
Model Number:
TMAX-SYP-3TNet Weight:
About 38kgCompliance:
CE CertifiedWarranty:
One year limited standard warrantyPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
100T Electric Hydraulic Press Machine with Digital Programmable ControllerNext:
500℃ 30T Manual Hot Press with High Temperature Double Heating Plate
Lab Small 3T Manual Hydraulic Press
Our manual tablet press is widely used in the fields of new materials, superconductivity, powder ceramics, new power supply, batteries, building materials, metallurgy powder, etc. it can be used together with ferrocalcium analysis, infrared spectroscopy (IR), X-ray fluorescence (XRF) analysis instruments. The machine has the advantages of compact structure, small volume, fast compression, simple operation, easy cleaning, convenient safety, etc. it can be used through specific In the mold, powder materials such as potassium bromide (KBr) and sodium chloride (NaCl) are pressed into various shapes such as test pieces, columns, special shapes or combinations for scientific analysis and research; at the same time, it is also suitable for other working occasions requiring corresponding pressure, as a press, testing and analyzing the pressure resistance of various objects, etc., which is widely used.
Advantages
Because of its small tonnage and small volume, it is very suitable for use in glove box. The diameter of oil cylinder is Φ 35mm. It adopts imported pressure sensor and pointer type double scale pressure gauge/digital gauge(optional), which is suitable for small sample pressing test. Because of its smaller tonnage, smaller cylinder diameter and more accurate pressure control for sample press.
Technical Parameters
Pressure range |
0-3T(0-28.8MPa) |
Pointer pressure gauge |
Pointer type, double scale display of pressure(Ton) and intensity of pressure(Mpa)→Default in the standard package |
Digital gauge (Optional) |
Digital display, 0.00-40.00 MPa, accuracy 0.01 MPa |
Piston diameter |
Chrome plated cylinder φ35mm |
Overall structure |
Integrative structure patented technology, no sealed connection of equipment, reduce oil leakage point |
Maximum piston stroke |
30mm(T) |
Pressure stability |
≤1MPA/10Min |
Number of columns |
2 pillars |
Working space |
96×130mm |
over dimension |
225×155×380mm |
Weight |
28kg |
NOTE |
The work space can be customized to increase the height |

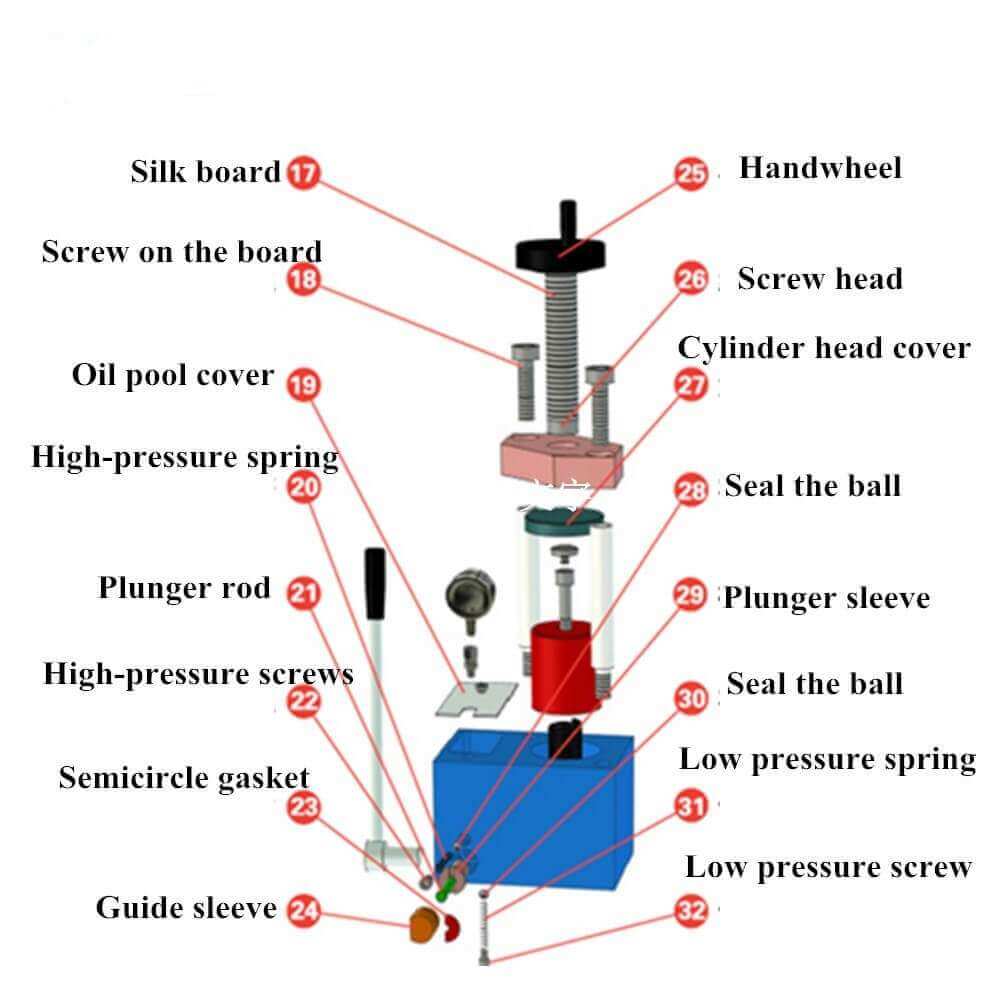

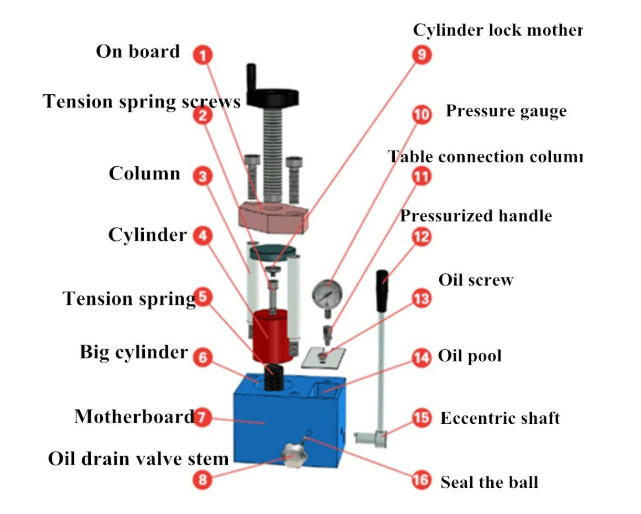

Sheet breakdown structure diagram

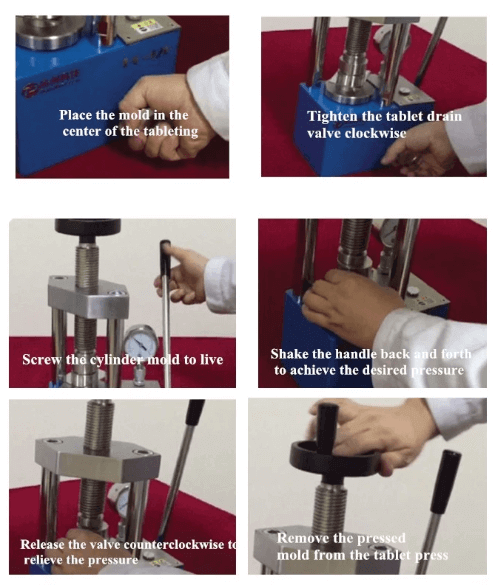

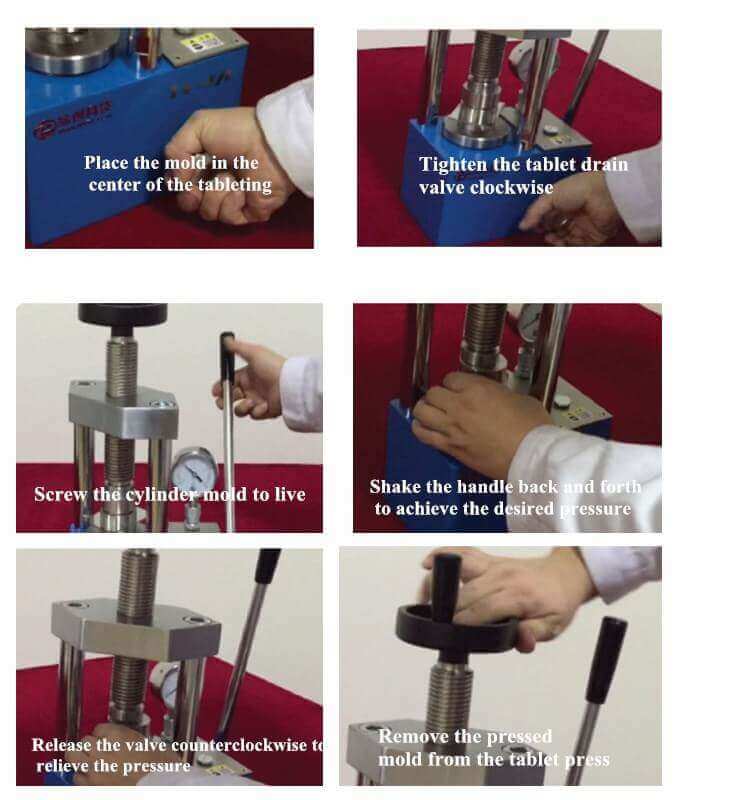

Operation
It is suggested that the general system pressure should not exceed 35MPa, otherwise it will affect the service life of the equipment.
