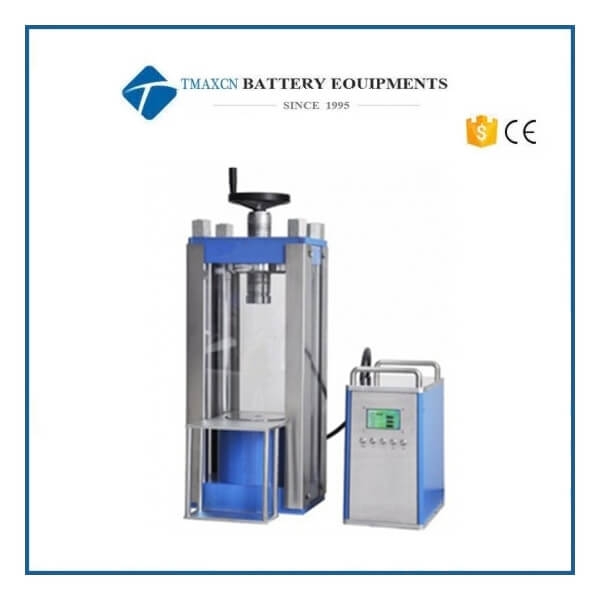

100T Electric Hydraulic Press Machine with Digital Programmable Controller
Model Number:
TMAX-100TFZCompliance:
CE CertifiedWarranty:
1 yearPlace of Origin:
China (Mainland)Payment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Laboratory 100T Programmable Electric Cold Isostatic Press CIP Press MachineNext:
Lab Small 3T Manual Hydraulic Press

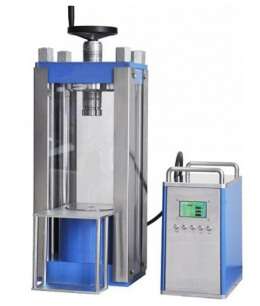

100T Electric Hydraulic Press Machine with Digital Programmable Controller
TMAX-TZ series electric hydraulic press is mainly used for samples that need large pressure to form, such as ceramic, metal powder and other large-scale mold. The hydraulic press adopts the split structure, full-automatic program operation: program pressurization / slow pressurization - pressure maintaining - pressure supplement - timing pressure relief, etc. It adopts the liquid crystal display screen, which makes the operation more intuitive and simple. It is equipped with the organic glass protective cover as standard, which makes the operation and production safer and more secure, the pressure stable, and the operation convenient.
Related products:
Technical Parameter
Model |
TMAX-100TFZ |
TMAX-150TFZ |
Pressure range |
1-100T/0.1t |
1-150T/0.1t |
Piston diameter |
Φ200mm Chrome plated cylinder |
Φ250mm Chrome plated cylinder |
Maximum cylinder stroke |
50mm |
|
Pressurization mode |
Electric pressurization |
|
Pressurization process |
Intelligent full-automatic, program pressurization / slow pressurization - program pressure maintaining - program pressure supplement - timed pressure relief |
|

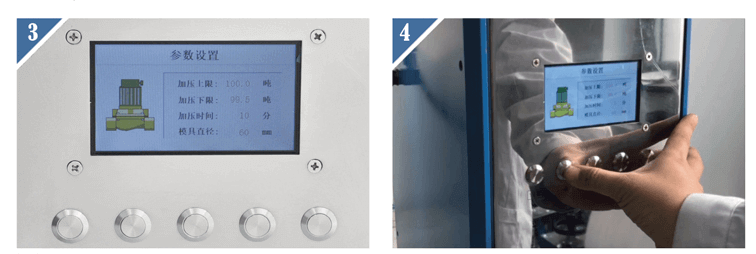

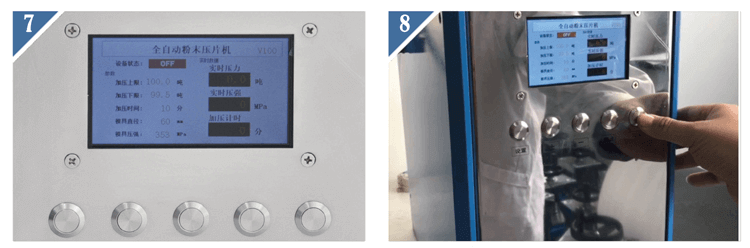

Display |
4.3" LCD |
|
Holding time |
0-999.59(minute.second) |
|
Pressure conversion |
Program automatic conversion of die sample pressure (MPA) |
|
Equipment protection |
Steel plate protection, equipped with plexiglass protective door |
|
Equipment structure |
Split structure |
|
Device power supply |
220V(50Hz/60Hz) |
|
working space |
260×400mm(W/H) |
285×460mm(W/H) |
Outline size |
850×500×1100mm |
950×600×1100mm |
Equipment weight |
520kg |
620kg |
