Automatic Isostatic Press

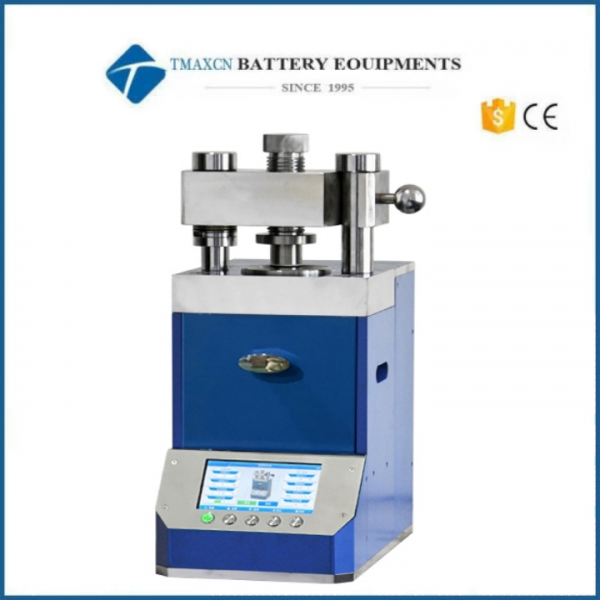

Lab Programmable 100T Automatic Isostatic Press

  • Model Number:

    TMAX-PP-100J
  • Compliance:

    CE Certified
  • Warranty:

    One year limited standard warranty
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

Lab Programmable 100T Automatic Isostatic Press








Operation interface (Manual mode)



Standard interface: Various parameters such as pressure, demoulding, time, sample size, etc. can be set in this interface alone.

Pressurization button: Press according to the parameters set on the interface.

Stop button: Press the stop button during the pressurization process to stop the pressurization.

Demoulding button: Press the demoulding button to release the sample according to the demoulding pressure.

Timing switch: The timing function can be turned on and off.





Operation interface (Automatic mode)



Start button: It can be pressurized according to a multi-stage pressurization program.

Stop button: During the pressurization process, you can stop the pressurization process.

List/Curve: The current display state can be switched between list and curve





Setting interface



Tap Settings on the operation screen to enter the Settings screen. The Settings screen has four ICONS.

Program Settings:Multi-stage pressure procedures and pressure holding times can be set.

Sample setting: The shape and size of the sample can be set to facilitate the user to calculate the pressure of the sample.

Data management: Previously saved data records can be invoked and modified..

System Settings: Administrators can set various parameters, enter the password "666"





Setting interface



Multi-segment program Settings: Up to 5 segments of pressurized programs can be set.

Invoke button: Invoke the set parameters to the automatic operation interface for pressure.

Save button: Save the set parameters to the database for later invocation.

Back button: Returns to the Settings screen





Mold diagram





Mold operation diagram






Operation procedure










Technical parameter

Instrument type

PP-100J

Pressure range

0-100.0 tons

Piston diameter

Chrome plated cylinderΦ200mm(d)

Pressurization process

Programmed pressure - programmed pressure retention - timed pressure relief

Holding time

1 s to ∞ s

Pressure conversion

The program automatically converts the pressure of the sample

Liquid crystal display

7 inch LCD screen

Equipment protection

Steel plate protection with plexiglass doors

Isostatic pressure

300MPa

Isostatic pressure chamber

Φ 60 x150 (MXN)

Cylinder stroke

50mm

Sample preparation characteristics

Upper board rocker arm structure, more convenient operation

Overall dimension

330x580x720(LxWxH)

Equipment power supply

550W(220V/110 can be customized)

Equipment weight

290KG

Powder tablet press size diagram
