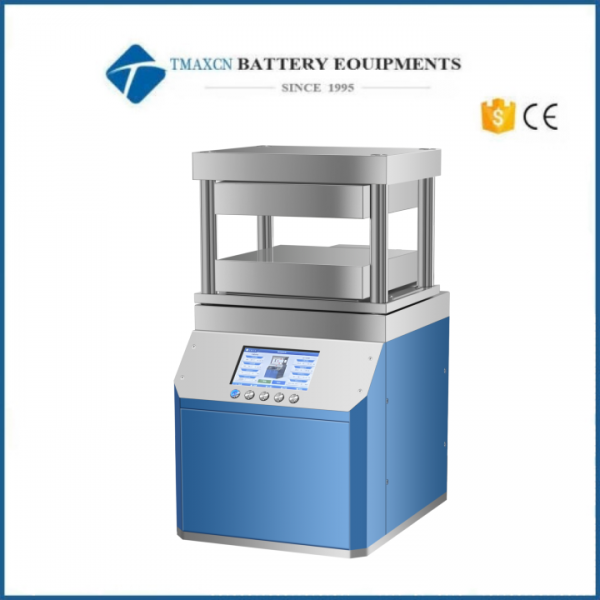

Lab High Temperature Automatic Hot Press with 300×300mm Mold Size
Model Number:
TMAX-PP-600ECompliance:
CE CertifiedWarranty:
One year limited standard warrantyPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Different Tonnage Manual Electric Automatic Tablet Press with Boric Acid MoldNext:
Lab 24T High Temperature Flat Hot Press Machine
Lab High Temperature Automatic Hot Press with 300×300mm Mold Size
Instruction manual
Setting interface
Settings:
Under the operation interface, press the setting button to enter the setting interface and then press the setting button to move the setting content. After moving to the mold diameter, press the setting button again to return to the operation interface.
+ :
Under the operation interface, press the "+" key to increase the setting number
-:
Under the operation interface, press the "-" key to reduce the number of Settings
Preloading:
Press the prepress button to close the upper and lower heating plates together.
Operating interface
Upper plate:
Press the "upper plate" button on the operation interface, the upper plate starts to heat to the set temperature, and the temperature will be automatically timed, and the heating will stop after the timing is over. Or press the "upper plate" button again, the upper plate will stop heating. All setting buttons are invalid during heating.
Lower plate;
Press the "Lower plate" button on the operation interface, and the lower plate will be heated to the set temperature automatically. When the timing is over, stop heating. Or press "lower plate" button again, the lower plate stops heating. All setting buttons are invalid during heating.
Stop:
When the equipment is running, press the "Stop" button, the equipment will stop the motor operation and open the pressure relief valve to release the pressure.
Pressurization:
Press the "pressurization" button, and the device will start. When the pressure reaches the set pressure, the pressurization will be stopped and the pressure will be kept by timing. When the pressure is lower than the lower limit of pressurization, the pressure will be replenishedautomatically.
Procedure of operation
Technical parameters
Instrument type |
PP-600E |
Pressure range |
0-30.0 tons |
Mold size |
300×300mm (MXN) |
Heating temperature |
Room temperature -300° C |
Manual mode |
The upper and lower heating plates and pressure can be controlled separately |
Automatic mode |
Multiple temperature programs can be set |
Cooling mode |
Automatic and rapid cooling according to cooling program |
Remote control |
Support computer connection remote control (computer optional) |
Data management |
Historical data and curve maps can be printed |
Liquid crystal display |
7 inches touch screen |
Machine size |
400×490X580mm(LXWXH) |
Power supply |
3500W(220V/110V can be customized) |
Main machine weight |
280 Kg |
Powder press size diagram |
|
