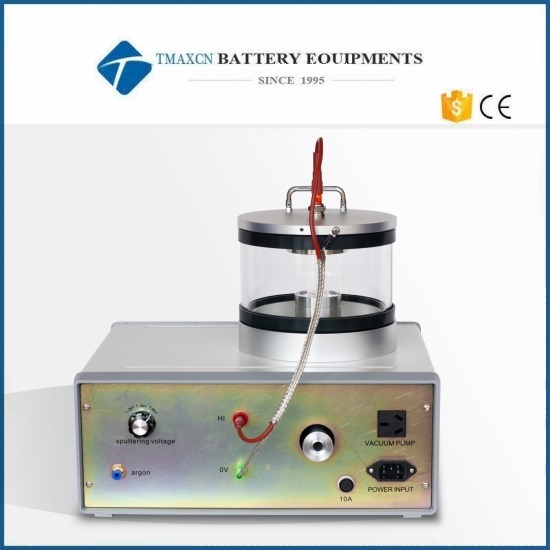

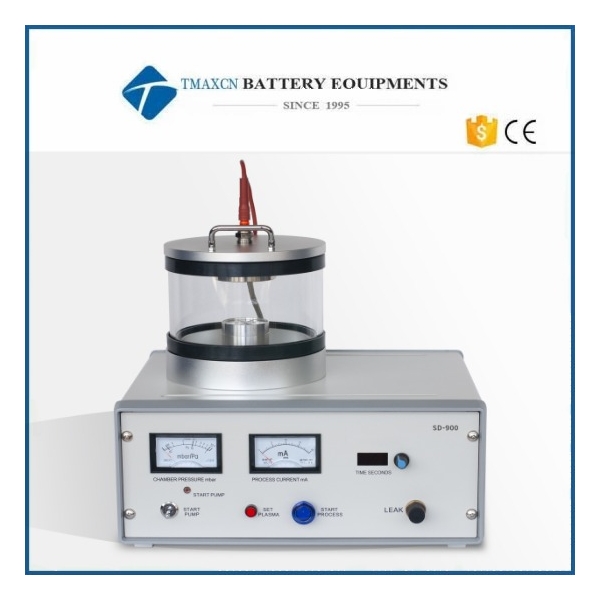

Lab DC Vacuum Ion Sputtering Coating Coater with Chamber Size of 150*120mm
Model Number:
TMAX-SD900Input Power:
1500WCompliance:
CE CertifiedWarranty:
One Year limited warranty with lifetime supportShipping Port:
XiamenMOQ:
1Payment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
DC or RF High Vacuum Magnetron Ion Sputtering Coating CoaterNext:
Lab Two Zones CSS Furnace for Rapid Thermal Processing Up to 3" Dia. & 650ºC.
Lab DC Vacuum Ion Sputtering Coating Coater with Chamber Size of 150*120mm
Introduction
Ion Sputtering Coater (SD900 Model) is ideal and designed for lab SEM sample preparation. It is widely used to coat non-conductive SEM samples with Au for better imaging. It is also excellent for surface treatment.
Working vacuum pressure can be achieved quickly within 2 minutes when using proper vacuum pump. It generates much less heat. It is user friendly and easy to operate.

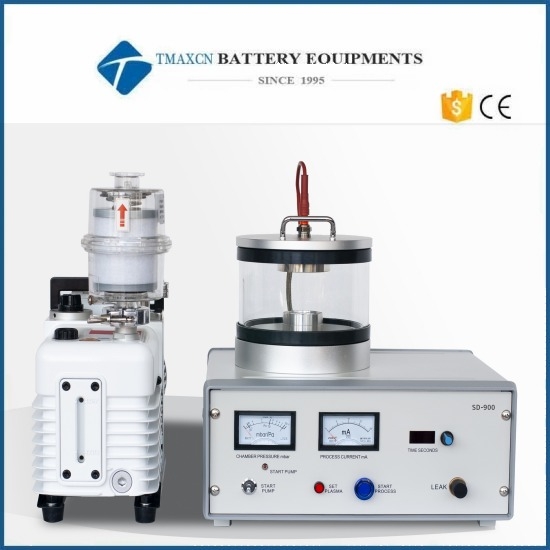

Vacuum pump is included.
Parameter
Vacuum pump set |
(Oil required) rotary vacuum pump |
Rotary pumping speed |
50 Hz : 8 m³/h (2.2 L/s)/ 60 Hz : 9.6m³/h (2.6 L/s) |
Vacuum limit |
2Pa |
Max sputtering current |
0-20mA |
Working pressure |
30Pa -7 Pa |
Vacuuming time |
<5 Min(2 Pa) |
Vacuum measure |
Measuring range from atmosphere to 2*10-2mbar |
Gas control |
Gas flow controller |
Chamber size |
Φ150*120mm (height) scratch resistant quartz glass |
Magnetron target source |
Target size φ 50*0.1mm(Au)/ target source: Au,Ag,Pt |
Operation method |
Instruction Manual |
Weight/size |
45kg/360mm length x 300mm wide x 380mm high |
Power supply |
AC 110V 60Hz or AC 220V 50Hz |
Power consumption |
<1500W |
Cooling method |
Air cooling |
Warranty |
One year limited warranty with lifetime product support |
