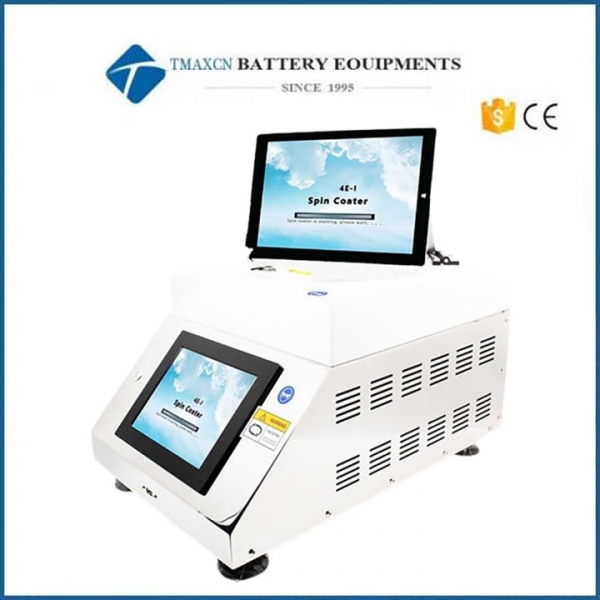

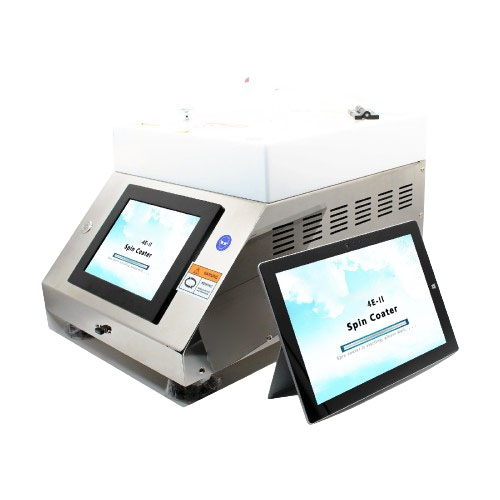

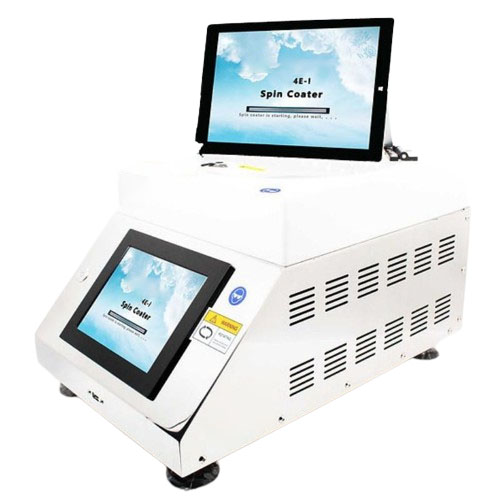

Lab 200C Spin Coater Equipped with 2-4 Channels of Automatic Glue Dispensing And Developing Function

Glue coating and developing function

2-way glue development (standard configuration)

Substrate size

5-200mm（ Standard）/5-600mm （Optional）

Speed range

10- 12000RPM（ Standard）/10-20000RPM

（ Optional）

Acceleration range

10-30000RPM/S， Adjustable

Motor speed stability

±1RPM

Spin coating uniformity

±1%

Heating range

Room temperature -200℃

Heating Speed

to 100℃ (1S) to 200℃(2S)

Cooling rate to room temperature

2 second

Human machine interface

8-inch touch screen

Communication interface

USB (standard) / RS485 (standard) /Bluetooth (Optional) With Bluetooth  communication,  free  PC   communication  software, which can remotely control the glue leveling machine

Turn around

Support forward and reverse

Stylus

Stylus BAMBOO resistance pen (standard)

Vacuum Pump

SC-550V

Set data

Unlimited  groups  data,15  speeds  per  group  (standard)  Or countless speeds (optional)

Seconds per period

0- 10000s

Storage data

Unlimited data

Data protection

default with power-down protection

Operating voltage(Spin Coater)

AC100-250V, single phase, 50/60Hz

Operating voltage(Pump)

AC220V(Standard)    AC110V(Optional)

Pumping speed

≥60L/MIN

Max vacuum

-85KPA

Sound Level

≤55db

Spin coater power

650W

Pump power

350W

Dimensions(Spin Coater)

340mm(W)X500mm(D)X250mm(H)

Chamber material

Overall PTFE material

Weight(Spin Coater)

18KG

Weight(Pump)

9KG

Relative humidity

< 85%

Ambient temperature

0-40℃

Warranty

1 year
