Spin Coater

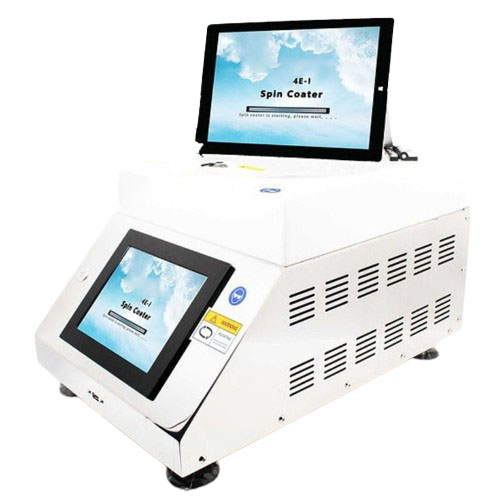

200C High Precision Spin Coater with Heating Function

  • Model Number:

    TMAX-4E-I

  • Dimension(L*W*H):

    440mm(L) x 460mm(W) x 1040mm(H)

  • Net Weight:

    57 kg

  • Compliance:

    CE Certified

  • Warranty:

    Two Years limited warranty with lifetime support

  • Shipping Port:

    Xiamen

  • Payment:

    L/C D/A D/P T/T Western Union

  • Delivery Time:

    5 days
Product Details

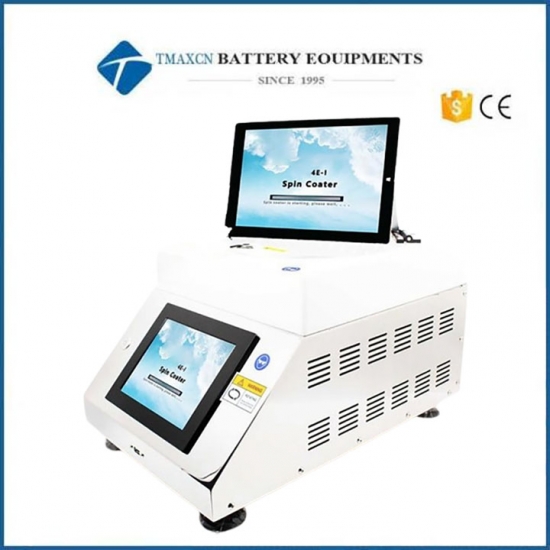

200C High Precision Spin Coater with Heating Function


Spin Coater



Key Features：

1.With heating function: room temperature -200℃

2.With Bluetooth communication function and supporting remote communication  software (only supported by KW-4E-I and above models)

3.Can be equipped with 2-4 channels of automatic glue dispensing and developing function (only supported by KW-4E-II and above models)

4.The adsorption force is adjustable, the adsorption force is displayed in real time, and it has leakage recovery function (only supported by KW-4E-III model)

5.The chamber is made of polytetrafluoroethylene PTFE material

6.Spin coating can be reversed and forwarded

7.Motor imported from Germany

Spin Coater Specifications



Feature

With Bluetooth communication,  free  PC communication  software, which can remotely control the glue leveling machine

Substrate size

5-200mm（Standard）/5-600mm（Optional）

Speed range

10- 12000RPM（Standard）/10-20000RPM （Optional）

Acceleration range

10-30000RPM/S， Adjustable

Motor speed stability

±1RPM

Spin coating uniformity

±1%

Heating range

Room temperature -200℃

Heating Speed

to 100℃ (1S) to 200℃(2S)

Cooling rate to room temperature

2 second

Human machine interface

8-inch touch screen

Communication interface

USB (standard) / RS485 (standard) /Bluetooth (Optional)

Turn around

Support forward and reverse

Stylus

Stylus BAMBOO resistance pen (standard)

Vacuum Pump

SC-550V

Set data

Unlimited groups data,15 speeds per group (standard) Or countless speeds (optional)

Seconds per period

0- 10000s

Storage data

Unlimited data

Data protection

default with power-down protection

Operating voltage(Spin Coater)

AC100-250V, single phase, 50/60Hz

Operating voltage(Pump)

AC220V(Standard)    AC110V(Optional)

Pumping speed

≥60L/MIN

Max vacuum

-85KPA

Sound Level

≤55db

Spin coater power

650W

Pump power

350W

Dimensions(Spin Coater)

340mm(W)X500mm(D)X250mm(H)

Chamber material

Overall PTFE material

Weight(Spin Coater)

18KG

Weight(Pump)

9KG

Relative humidity

< 85%

Ambient temperature

0-40℃

Warranty

1 year



Spin Coater
