Intelligent Electric Automatic Isostatic Compact Cold Pressing machine 20T 40T 60T 100T

Model Number:
TMAX-ZJYP
Compliance:
CE Certified
Warranty:
One year limited standard warranty
Payment:
L/C D/A D/P T/T Western Union
Delivery Time:
5 days

WhatsApp : +86 13003860308
Email : David@tmaxcn.com
Email : Davidtmaxcn@gmail.com
Wechat : 18659217588

Product Details

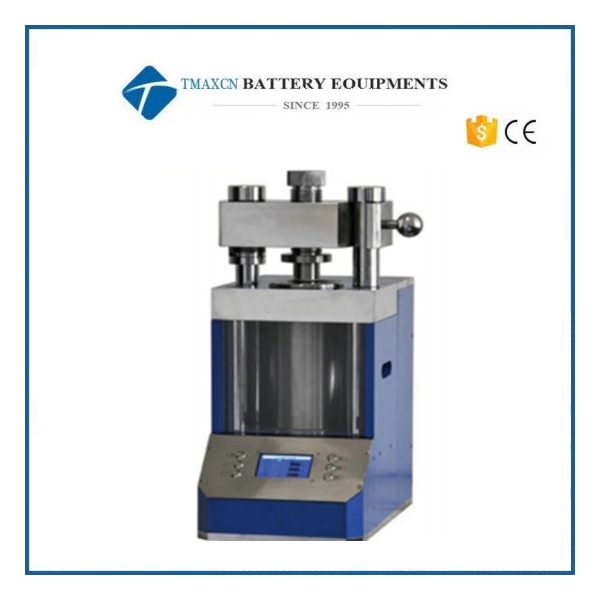

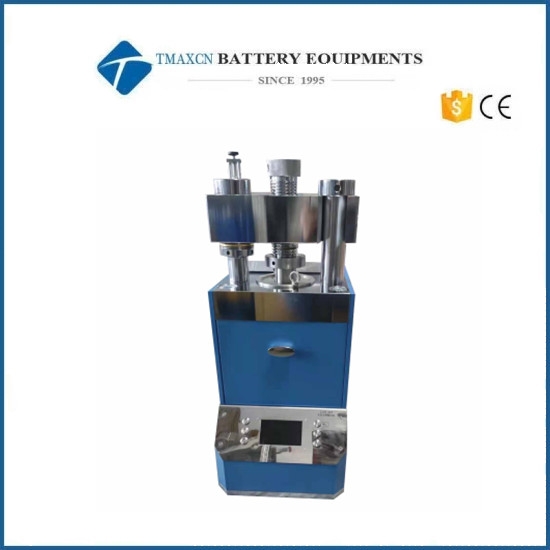

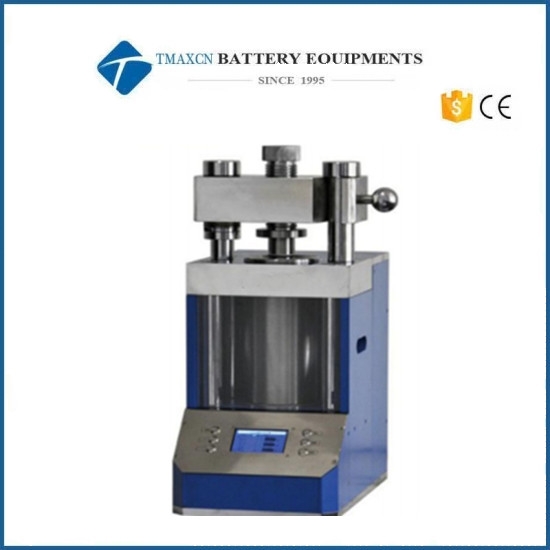

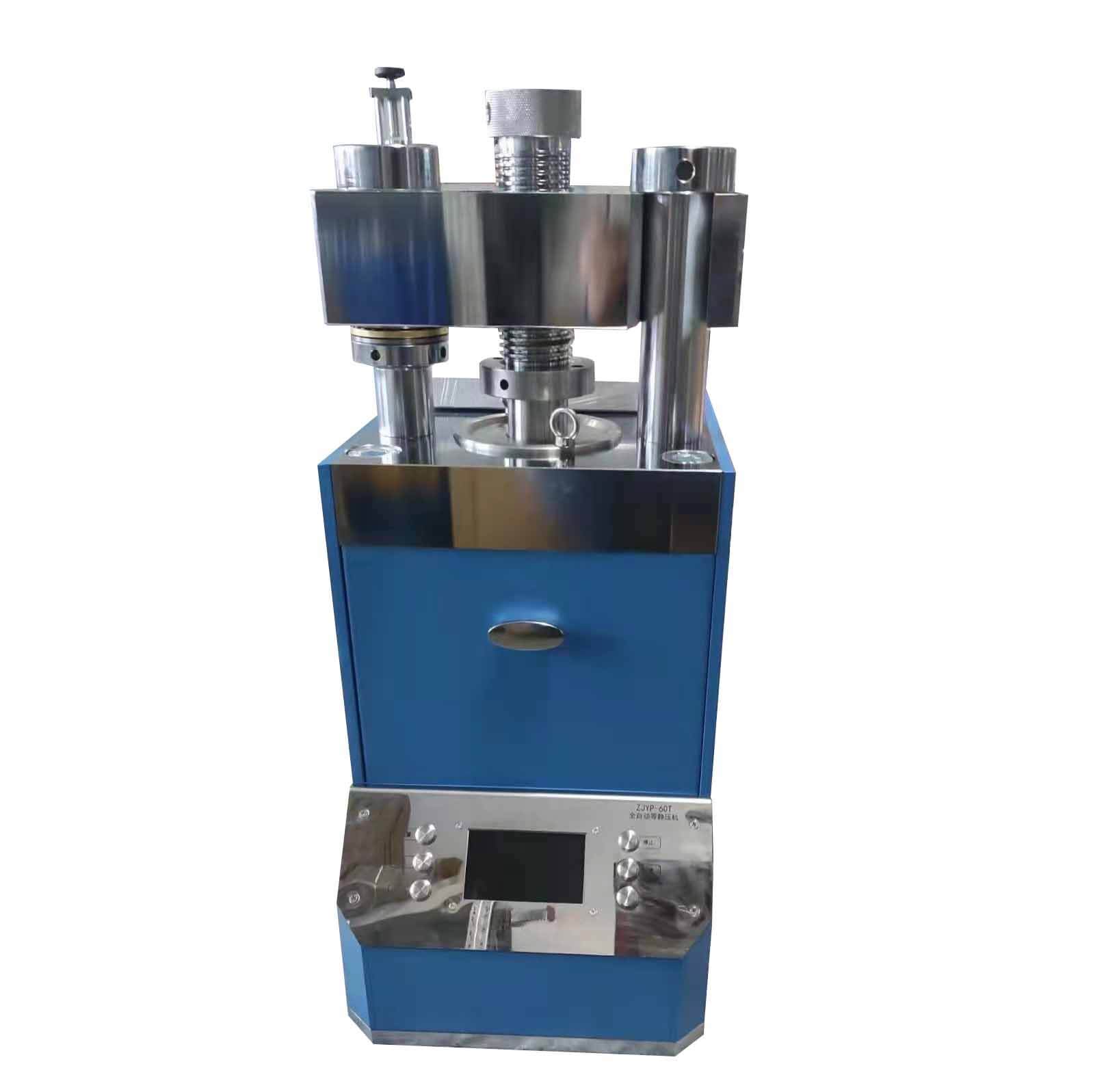

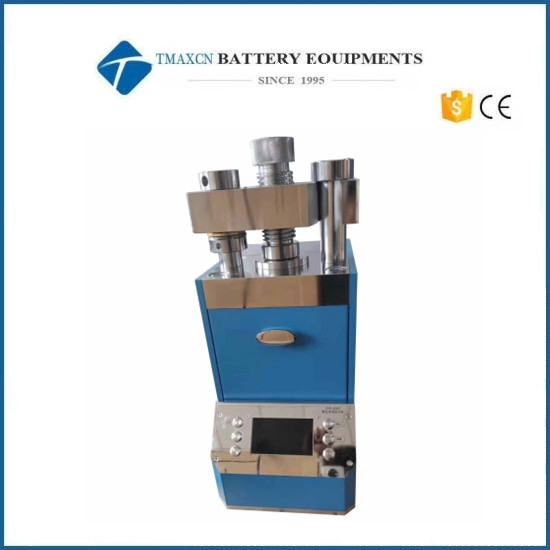

Intelligent Electric Automatic Isostatic Compact Cold Pressing machine 20T 40T 60T 100T

Features

New ZJYP-T series

ZYJP series automatic isostatic pressing machine adopts upper plate rocker arm structure, intelligent automatic operation: program pressurization/slow pressurization-pressure maintenance-pressure supplementation-time pressure relief, etc., steel plate protection and equipped with plexiglass protection door, operation production Safer and more assured, with stable pressure and convenient operation, it is another innovative masterpiece developed by Tmax on the basis of electric static press.


Technical parameters

Instrument model	ZJYP-20T	ZJYP-40T	ZJYP-60T	ZJYP-100T
Pressure range	1-20.0T	1-40.0T	1-60.0T	1-100.0T
Voltage regulation accuracy	0.1t	0.1t	0.1t	0.1t
Piston diameter	Dia110mm plated oil cylinder	Dia130mm plated oil cylinder	Dia150mm plated oil cylinder	Dia200mm plated oil cylinder
Maximum cylinder stroke	50mm
Pressurization method	Electric pressurization
Pressurization process	Intelligent full-automatic, programmed pressurization / slow pressurization - programmed pressure maintaining / pressure replenishing - timed pressure relief
Display method	XNNETS4.3 inch LCD screen
compress time	0-999.59 (minutes.seconds)
pressure conversion	The program is automatically converted, and the digital display of the pressure of the mold sample (Mpa)
Equipment protection	Steel plate protection + plexiglass protection door
Equipment structure	One-piece, upper plate rocker structure, easy to operate, saving time and effort
Device power	220V/1500W (50Hz/60Hz)
Isostatic chamber size	030 X 150mm	040 X 150mm	050 X 150mm	060 x 150mm
Cavity maximum pressure	300Mpa	300Mpa	300Mpa	300Mpa
Dimensions	240×390×560mm	280×460×660mm	300×500×680mm	330×580×720mm
Instrument weight	120kg	180kg	240kg	290kg
Model Description	The isostatic pressing machine with higher pressure (≤500Mpa) can be realized by adjusting the size of the isostatic pressure chamber.
