Hydraulic Sealing Machine

Hydraulic Battery Bag Sealing Machine For Sealing All Types Of Cylinder Cases

  • Model Number:

    TMAX-MSK-510M
  • Dimension(L*W*H):

    330x 240 x 400mm
  • Net Weight:

    26 kg (58 lbs)
  • Warranty:

    1 year limited manufacturer warranty with lifetime
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

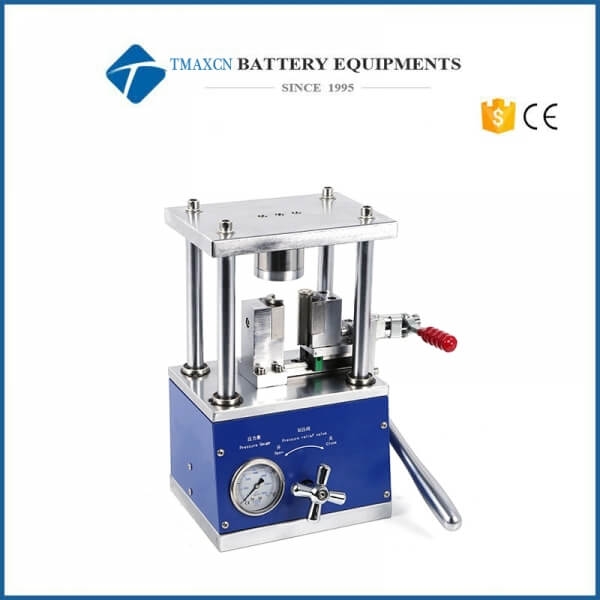

Hydraulic Battery Bag Sealer Machine For Sealing All Types Of Cylinder Cases


TMAX-MSK-510M is acompact hydraulic crimper for sealing all types of cylinder cases in battery R&D labs. The compact body design allows it to be easily placed inside a glove box and thus preventing contamination of the electrolyte materials during cell assembly. Simple operation with safety protection feature allows customers to master the sealing procedure within 5 minutes.


SPECIFICATIONS:

Model

Hydraulic Sealing Machine  TMAX-MSK-510M

Driving Force

Manual hydraulic pressing up to 5T

Pressure Gauge

0-3500 psi (0-250 kg/cm^2)

Body

Stainless Steel

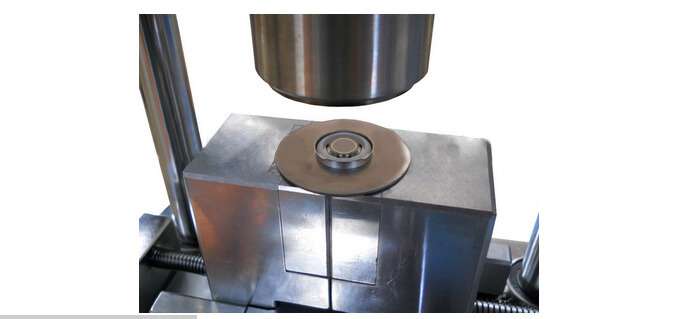

Crimping Dies

Six standard die selectable: CR123 /18650 / 26650 / 32650 / AA /AAA

Warranty

One year limited with lifetime support

Product Dimensions

330mm(L) x 240mm(W) x 400mm(H)

Application Notes

Customized die for other cylindrical cell types is available upon request

It is necessary to groove the opening end of the cylindrical case by using

the TMAX-GC650  grooving machine before sealing the cap

Each type of cylinder cell can only be sealed specifically by certain model of equipment.

Please select the type of cylinder cell in the Product Options drop box to check the model

number and price for the corresponding crimping die of each cylinder cell type

Net Weight

26 kg (58 lbs)
