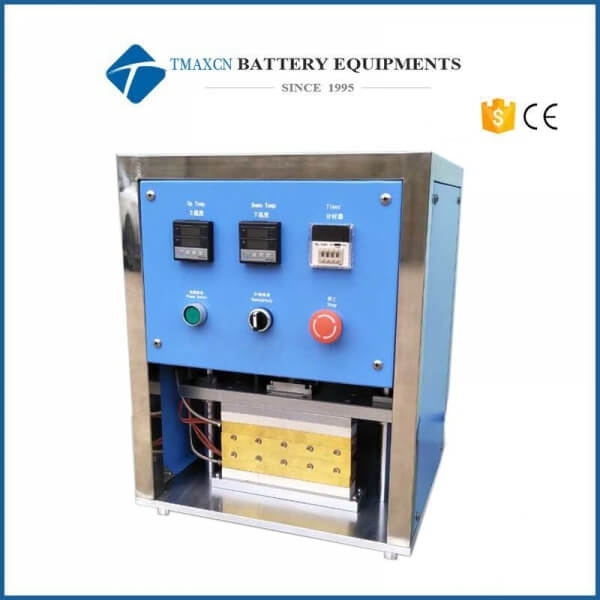

Battery Sealing Machine For Pouch Cell Top-side Sealing
Model Number:
TMAX-JD-TSS-300Input Power:
1000WDimension(L*W*H):
450*570*740mmNet Weight:
73kgCompliance:
CE CertifiedWarranty:
One Year limited warranty with lifetime supportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13174506016
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Hydraulic Battery Bag Sealing Machine For Sealing All Types Of Cylinder CasesNext:
Battery Pouch Vacuum Sealing Machine For Sealing Aluminum-laminated Case
Lithium Battery Sealing Machine

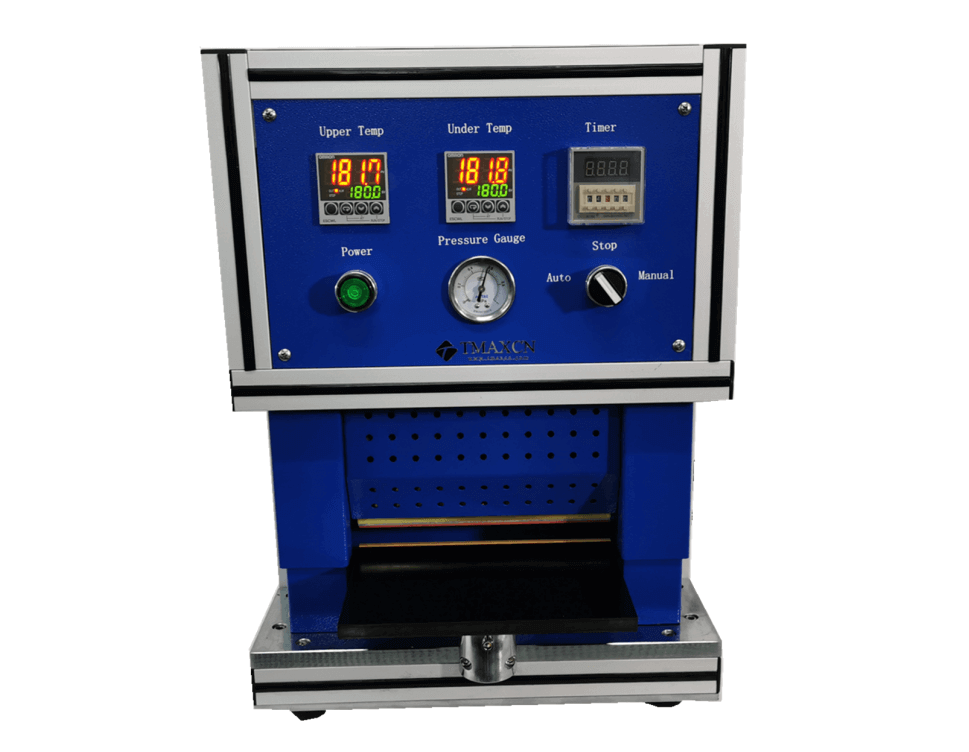

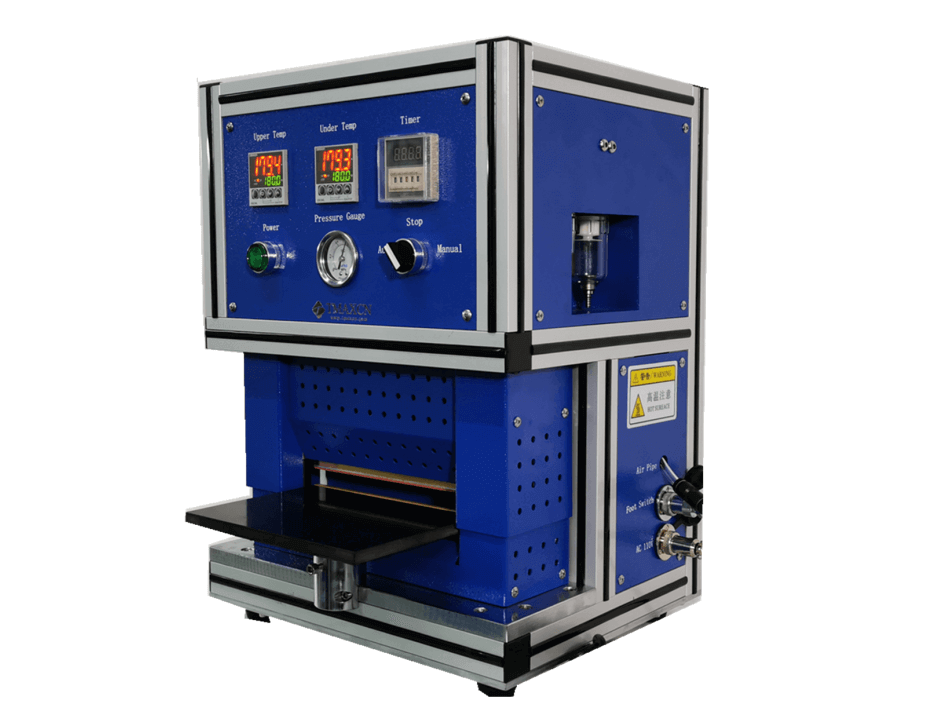

1. TMAX-JD-TSS-300 Battery
Sealing Machine is a compact heating sealer for sealing aluminum-laminated
films during pouch cell sealer (polymer Li-Ion cell) case preparation with 300mm
length sealing bar.

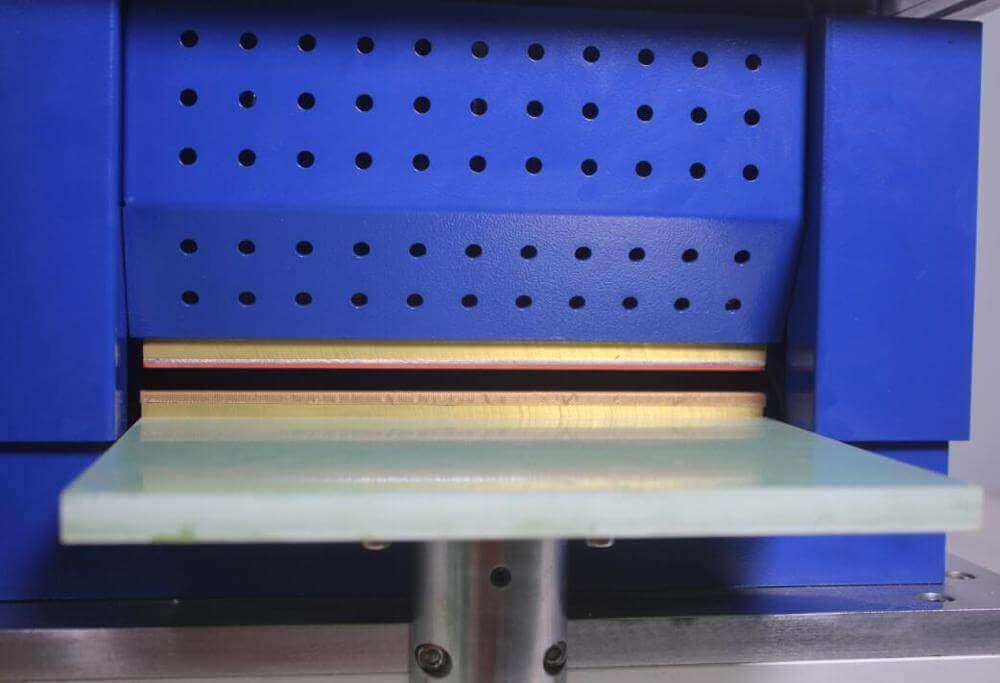

2. The Battery Sealing Machineadopts soft sealing bar, The sealing is copper in
bottom and aluminum and Silicone rubber piece on top. So it can be used for
both top and side sealing for pouch cell.
3. It can prepare the pouch cell for the injection of electrolyte by sealing
the side and top of the pouch cell with tab.
4. The sealing bar can be customized according to requirement, Sealing head
length 200-400 mm customized, and we can also put different sealing width in
one sealing head.
We are also good at manufacturing pouch cell secondary sealer.
SPECIFICATIONS:
Model |
Battery Sealing Machine TMAX-JD-TSS-300 |
Source voltage |
AC110V-240V, Customized |
Heating pipe power |
1000W |
Warranty |
One Year limited warranty with
lifetime support |
Max sealing length |
200-400mm |
Sealing time |
0-99s can be set |
Sealing time accuracy |
±0.1s |
Sealing temperature |
0-250℃ |
Temperature control accuracy |
±2℃ |
Parallelism of upper and lower
sealing head |
0.01mm |
Sealing stamp width |
3-6mm(customized) |
Sealing stamp thickness |
0.19-0.3mm |
Dimension |
355*470*540mm |
Weight |
73kg |
Shipping weight |
90kg |
Shipping dimension |
45*57*74cm |
