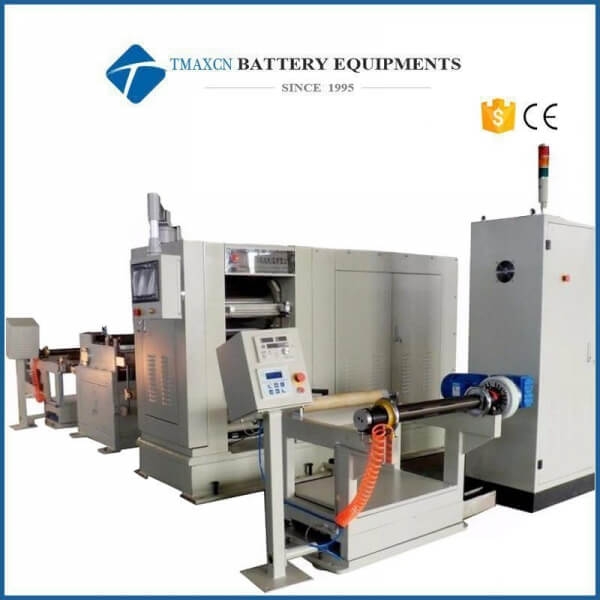

Hot Roller Press Calendering Machine for Li ion Battery Production Line
Model Number:
TMAX-RMCompliance:
CE CertifiedWarranty:
2 Year limited warranty with lifetime supportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Heating Roller Press Calender Machine For Li ion Battery Production Line
Characteristics of equipment：
TMAX-RM adapt to continuous rolling process for all kinds of lithium battery anode and cathode.
1. Rolling speed: 2~12r/pm, CVT adjustable.
2. Roller material: 9 Cr2Mo, Roller surface hardness: HRC 65~68
3. Gap adjustment method: Servo motor drive the middle wedge to adjust, mechanical self-locking.
4. Roller gap adjustment range: 0~2mm
5. Roller gap adjustment accuracy:1μm

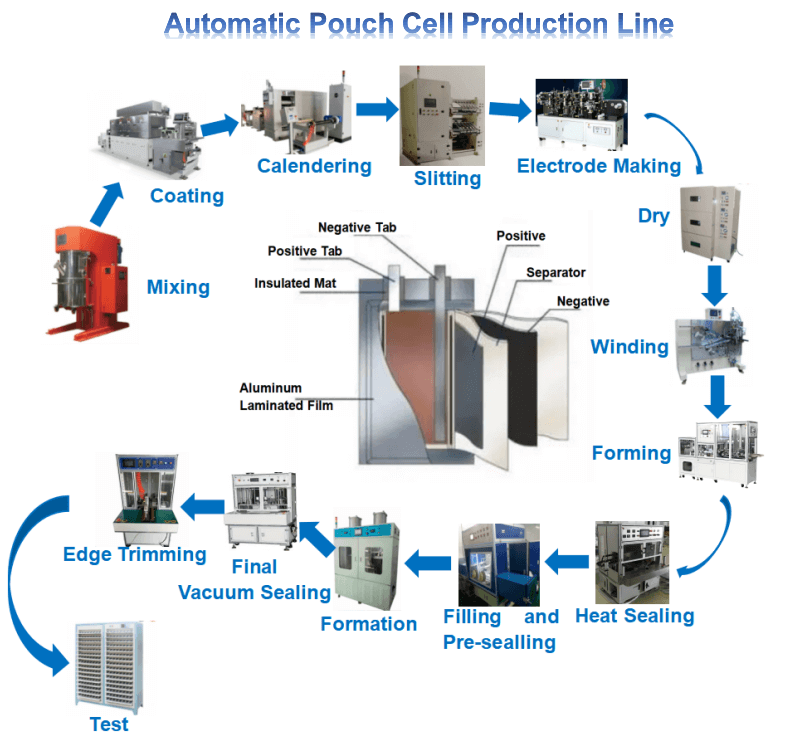

6. Thickness uniformity of pole sheet after rolling: ≤±2μm. Maximum rolling force:3000KN We provide a full ranges of Li ion cell making Machine.
Specifications
Item Type |
RM500 |
RM600 |
RM800 |
Roller size |
500*500mm |
600*600mm |
800*800mm |
Pole sheet width |
200~500mm |
200~550mm |
300~750mm |
Output speed |
2~11rpm |
2~10rpm |
3~12rpm |
Roll straightness speed |
4~17m/min |
4~19m/min |
6~30m/min |
Roller surface roughness |
Ra≤0.2 |
Ra≤0.2 |
Ra≤0.2 |
Roll cylindrical degree |
≤2.0μm |
≤2.0μm |
≤2.0μm |
Roll thickness accuracy |
±2.0μm |
±2.0μm |
±2.0μm |
Roll pressure range |
100~300t |
100~300t |
100~300t |
Roll gap adjustment range |
0~2.0mm |
0~2.0mm |
0~2.0mm |
Roll gap adjustment accuracy |
1μm |
1μm |
1μm |
Tension adjustment range |
2.2~20kg |
2.2~20kg |
2.2~20kg |
Orderly winding error |
±0.5mm |
±0.5mm |
±0.5mm |
Retractable roll diameter |
Max:Ø550mm |
Max:Ø550mm |
Max:Ø550mm |
Air pressure |
0.5MPA above |
0.5MPA above |
0.5MPA above |
Power |
15KW |
18KW |
35KW |
