Water Chiller

Digital Temperature Controlled Recirculating Water Chiller with 16L / min Flow

  • Model Number:

    TMAX-KJ5000

  • Input Power:

    840W

  • Dimension(L*W*H):

    550 X 280 X 430 mm (L x W x H)

  • Net Weight:

    100 lbs

  • Compliance:

    CE Certified/NRTL Certified

  • Warranty:

    One years limited warranty with lifetime technical support

  • MOQ:

    1

  • Payment:

    L/C D/A D/P T/T Western Union

  • Delivery Time:

    5 days
Product Details

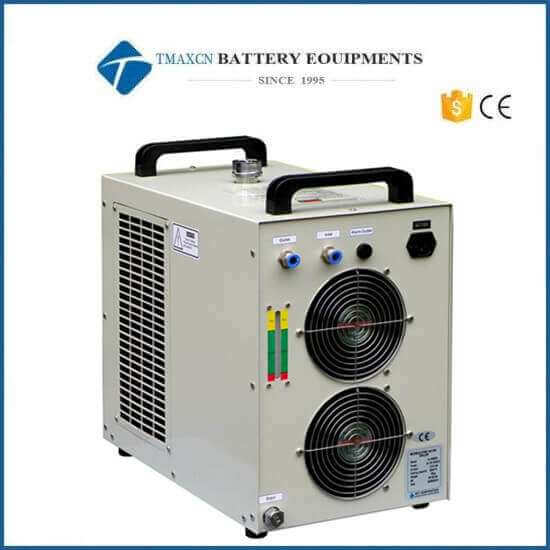

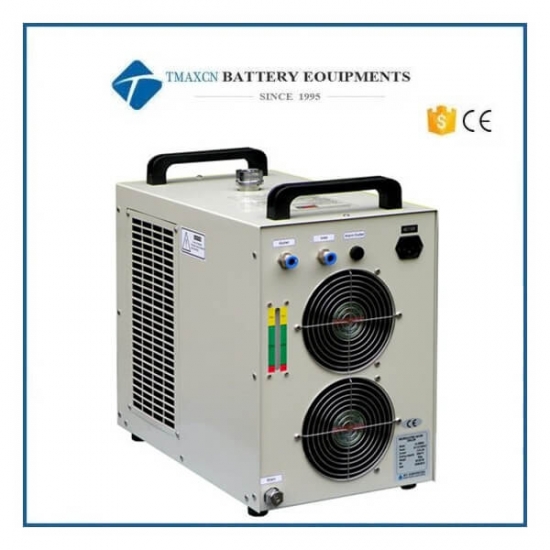

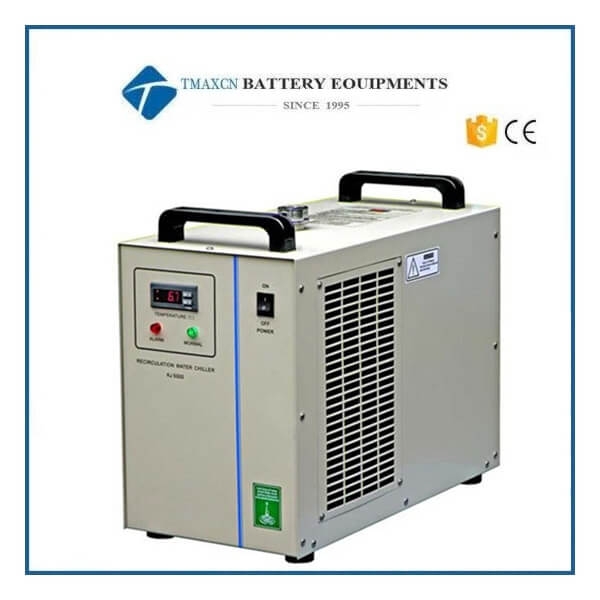

Digital Temperature Controlled Recirculating Water Chiller


Specifications

TMAX-KJ5000 is a CE certified Water-cooled Chiller with built in the refrigerating machine that provides a clean, environmentally friendly and reliable source of temperature-controlled fluid for closed loop systems up to 16L/min. It eliminates scale buildup, sewerage cost, and tap water cooling expenses. This small chiller provides high cooling capacity at low cost and has a convenient digital reading and setting display. Temperature range can be adjusted from 5 to 30°C. It is suitable for MTI RTP Furnaces, High-Temperature Ovens, and any lab equipment that need water cooling.

SPECIFICATIONS:

Power Supply AC 100-120V or AC 208-240V can be selected in options bar (50/60Hz).
Current 3.5-5.6A
Refrigerant & Cooling Capacity
  • Refrigerant: R134a (~300g)
  • Capacity:    722Kcal/h;  2866Btu/h;  840W
Temperature Control  5~30 °C
Temperature Accuracy ± 0.3 °C
Max. Pump Head 10 meters (14psi)
Pipe Connectors
  • Φ 12mm PTC connector
  • 8mm I.D, 12mm O.D. polyurethane tube is included
Water Flow Rate 16 Liters / minute
Water Tank
  • 6 Liters Water Tank made of stainless steel
  • Water chiller should not be connected to a system with the capacity more than the tank's capacity itself.
  • Use coolant instead of water for longer service life.
  • Do not use deionized water as the cooling agent, DI water may cause the copper pipe to corrode, mainly pitting, and leak over time.

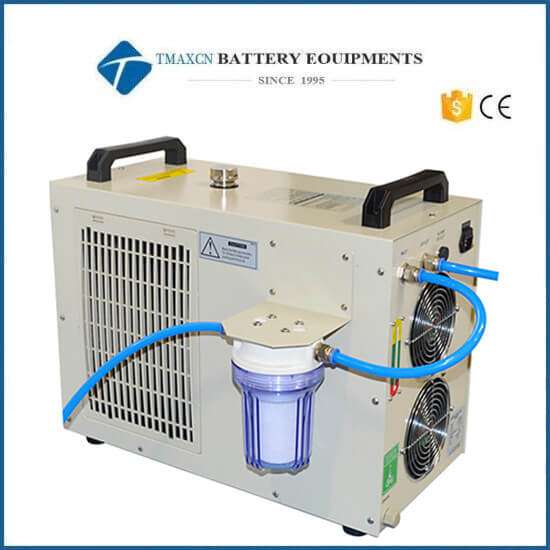

Water Filter
  • One water filter is included for immediate use.
  • Replace water filter every 3 to 6 months based on water quality and usage. Please click on pic to order
Protection Protected from overflow alarm and over temperature
Noise Level 85dBA (standing next to the unit)
75dBA (standing at 1 meter away from the machine)
Overall Dimensions 550 X 280 X 430 mm (L x W x H)
Shipping Weight 100 lbs
Warranty One year limited warranty with lifetime support
Compliance
  • CE approval
Application Notes
  • Must useRust Protection coolants to prevent rust and corrosion. The use of tap water is prohibited.
  • Please connect the chiller water outlet to the equipment water inlet, and the chiller water inlet to the equipment outlet. Otherwise, the water flow sensor on the equipment may fail to work due to wrong water flow direction
  • If you need temperature below 20C, please set Parameter F9 to the desired temperature(10C-20C).
