Jaw crusher is mainly used for all kinds of ores and large materials of medium size crushing, crushing compressive strength is not greater than 320Mpa of the material, divided into coarse breaking and fine breaking two kinds. JC series jaw crusher has complete specifications, and its feeding size is 40mm~1200mm, which is the preferred equipment for primary crushing.

Jaw crusher main structure: frame, eccentric shaft, large pulley, side protection plate, elbow plate, elbow plate backseat, adjusting screw, reset spring, fixed jaw plate and movable jaw plate, etc., which elbow plate also plays an insurance role. The crushing mode of this series of jaw crusher is flexural extrusion type. The motor drives the belt and pulley, and makes the moving jaw move up and down through the eccentric shaft. When the moving jaw rises, the Angle between the elbow plate and the moving jaw becomes larger, so as to push the moving jaw to the fixed jaw plate. At the same time, the material is squeezed, rubbed, crushed and so on. When the moving jaw goes down, the Angle between the elbow plate and the moving jaw becomes smaller, the moving jaw plate leaves the jaw plate under the action of the pull rod, and the broken material is discharged from the lower mouth of the crushing chamber. With the continuous rotation of the motor crushing motor jaw plate for periodic crushing and discharge, to achieve small batch production.

Use of jaw crusher

Laboratory jaw crusher as long as used for limestone, calcium carbide, calcium carbide slag, shale, basalt, river pebbles, bluestone and other kinds of ore coarse, medium, fine, in cement factory, sand factory, stone factory, hydropower plant desulfurization, calcium carbide plant use effect is significant, widely used in mining, metallurgy, chemical industry, building materials, water conservancy, transportation and other industries.

Technical parameters:

Product features:

1. Design into desktop style, save experiment space, easy to carry;

2. Zero point correction to compensate for jaw plate wear to ensure the accuracy of sample fineness;

3. High production efficiency, low energy consumption, compared with ordinary fine jaw breaking, compared with the same specification of processing capacity increased by 20-35%, energy consumption reduced by 15-20%;

4. Deep crushing chamber and no dead zone, improve feeding capacity and output;

5. The use of hyperboloid jaw plate wear is small, under the same process conditions, jaw plate life can be extended by more than 3-4 times, more obvious for high abrasive materials;

6. The instrument is equipped with safety lock protection, and the instrument does not run when the receiving box is not installed in place to ensure the safety of the operator;

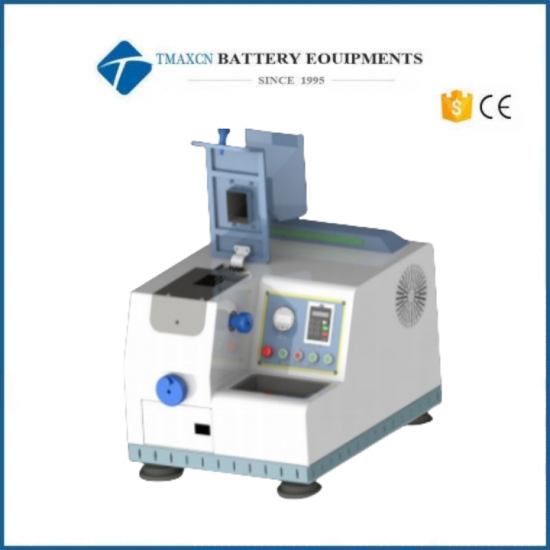

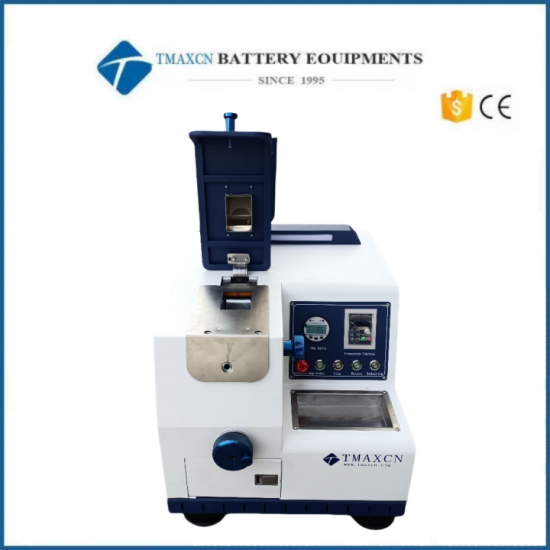

7. The funnel can be quickly overturned at 90°, manually disassembled, the crushing chamber is easier to clean or convenient to replace the jaw plate, and the funnel is equipped with anti-crushing material spatter device to prevent sample spatter;

8. Configure the operation indicator, the operation is green, abnormal alarm is red;

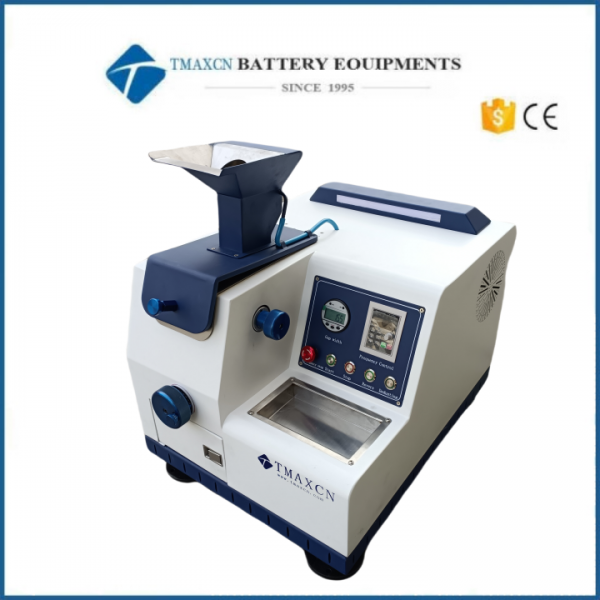

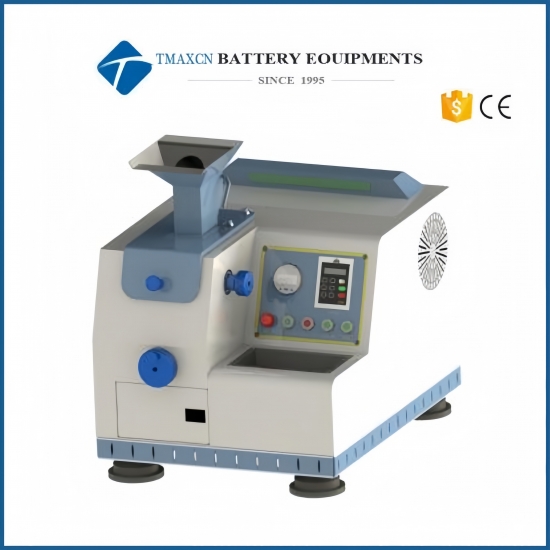

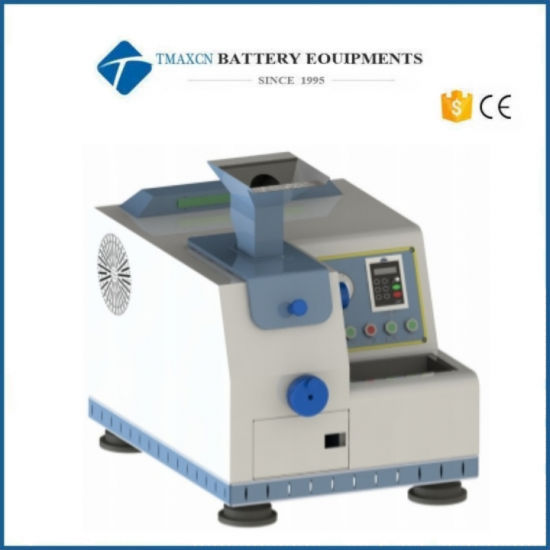

Jaw crusher products related pictures
