Comma Blade & Gravure Roll Dual Coating Heads Multifunctional Coating Machine
Model Number:
SIMY-COMGRACompliance:
CE CertifiedWarranty:
One Year limited warranty with lifetime supportShipping Port:
XiamenPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Customizable Anilox Roller Coating MachineNext:
Beeswax Wrapper Coating Machine Cotton Fabric Coater
Product Details

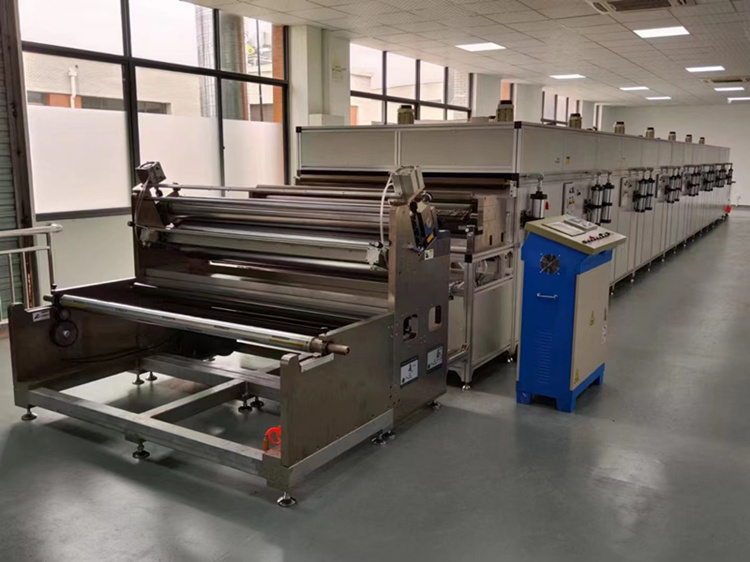

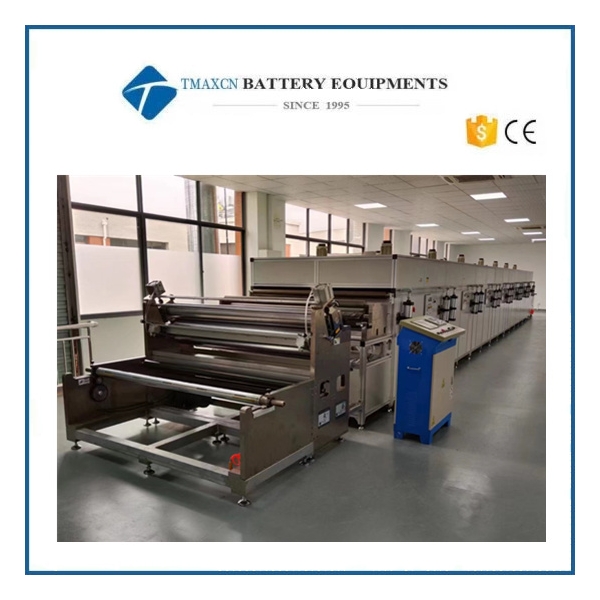

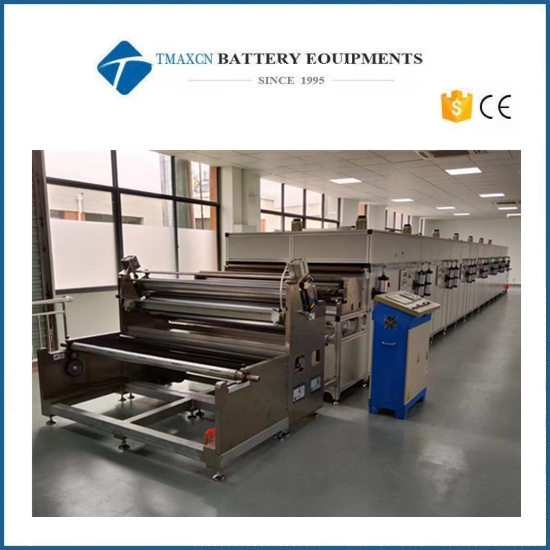

Comma Blade & Gravure Roll Dual Coating Heads Multifunctional Coating Machine
A coating machine is equipped with two types of coating heads, which can be changed according to different slurries.
The coating width, oven length, and temperature can be customized.
| Specification Parameters for coating machine | |||||
| Control system | self-developed PLC touch screen | ||||
| Coating width | 100-1200mm (customizable) | ||||
| Coating method | Comma blade + gravure roll | ||||
| Oven length | 1-20m (customizable) | ||||
| Temperature | normal temperature ~180 C | ||||
| Coating speed | 0.1-3; 1-5, 3-10, 5-30 meters/min (Customizable according to coating and oven length) | ||||
| Tension control | Automatic tension | ||||
| Winding device | Automatic winding | ||||
| Cutter | Flat cutter (Optional) |
||||
