Benchtop Vacuum Glove Box with Airlock and vacuum Flange and Gauge
Model Number:
TMAX-GBV-3Dimension(L*W*H):
1200*700*900mmCompliance:
CE CertifiedWarranty:
One year limited warranty with lifetime supportMOQ:
1Payment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13174506016
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Laboratory Transparent Acrylic Vacuum Glove Box (35"x19"x20") with Optional Vacuum Flange & GaugeNext:
Vacuum Glove Box with Purification System (Single Side Single Work Station)

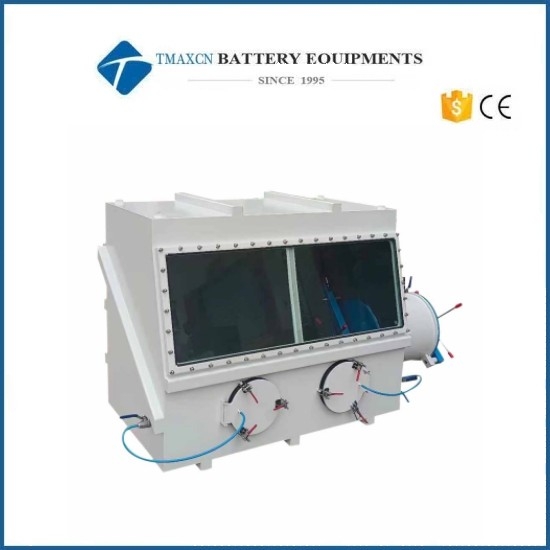

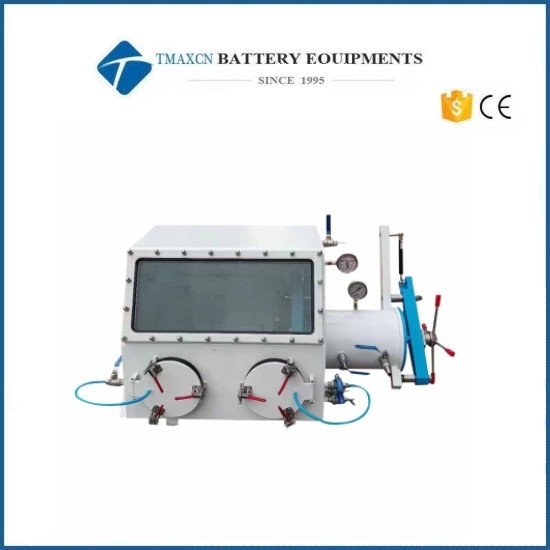

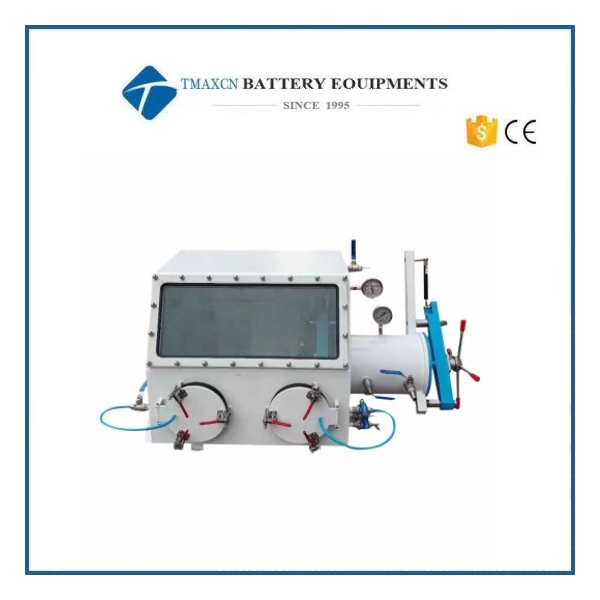

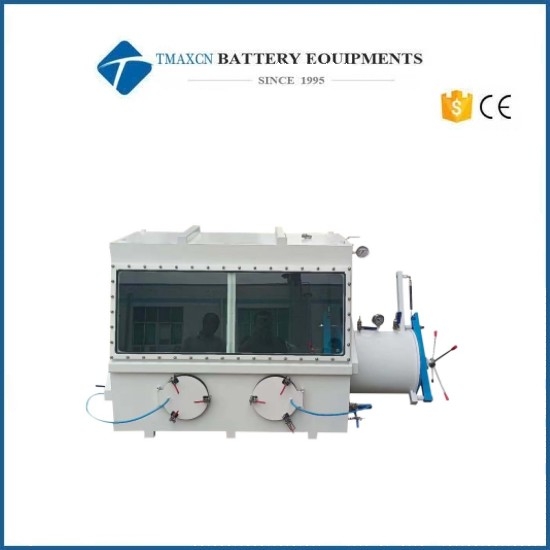

Benchtop Vacuum Glove Box with Airlock and vacuum Flange and Gauge
It is mainly composed of main Lab glove box, transit room and base. If user has special requirement, it can also be customized and designed according to customer needs.There are 2 or 3 glove interfaces. In front of the main box, user can clearly view the inner situation. There is one vacuum ball valve above the main box body. It can be used according to user needs. The ball valve can be connected with water faucet when needing water or ventilation. Light bulb can be also installed. Transit room means the transition between the main box and outdoor, composed by two sealed doors, two vacuum ball valves and one room. Two doors isolate main box from connecting with the outdoor, making material putting in and taking out for lab easily.
Parameters of Stainless Steel Vacuum Glove Box |
||||||
No. |
Model No. |
Outline Dimension |
Box Size |
Transition Cabinet |
Glove Port |
Vacuum Degree |
1 |
GBV-1 |
1030*570*530 |
600*500*500 |
Ф200*280 |
Ф145 |
0-0.1Mpa |
2 |
GBV-2 |
1295*715*675 |
800*650*650 |
Ф273*350 |
Ф145 |
|
3 |
GBV-3 |
1755*776*1010 |
1200*700*950 |
Ф350*400 |
Ф196 |
