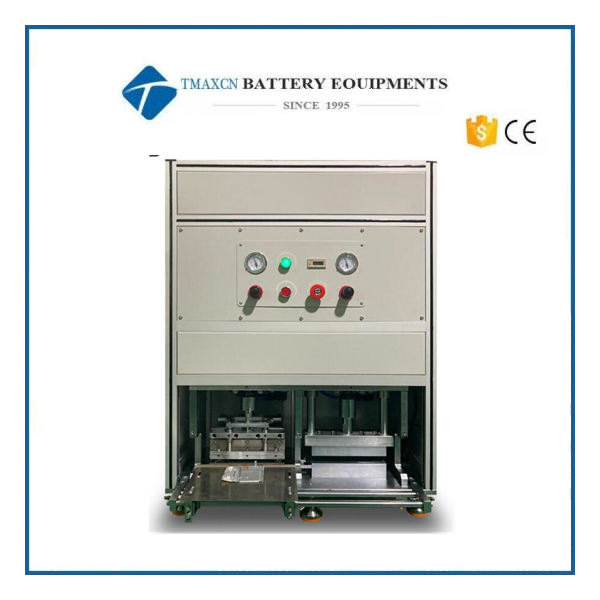

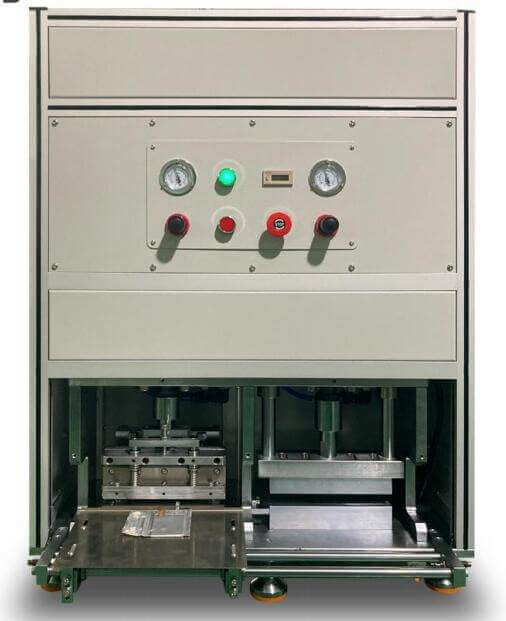

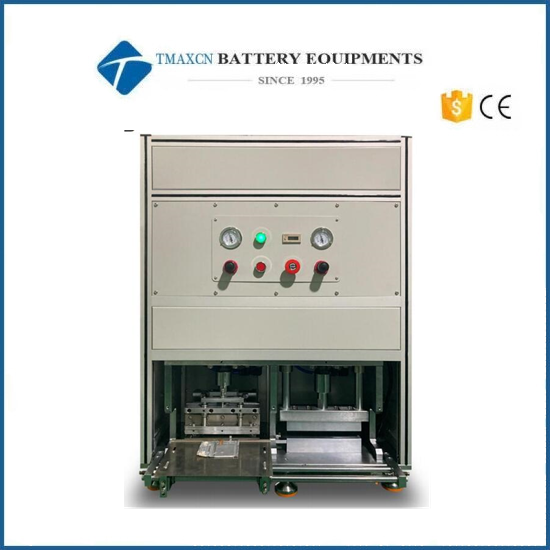

Battery Tab Shaping Press&Cutting Machine for Prismatic Cell

Compressed air

0.5-0.8 MPa

Cutting pressure

≤1000Kgf

Cutting strock

15mm

Cutter length

200mm

Press pressure

≤1000Kgf

Working speed

300-500 times/hour, accoridng to real process parameter

Equipment weight

About 140kg

Appearance Colour

According to customer requirement, customer provide colour plate

Voltage

Single-phase: 220V/60Hz

Power

100W

Suitable battery width

<225mm( this is standard machine, will custom accoridng to

customer’s real battery dimention)

Process performance

1. Manual feeding and unloading;

2. Manual conversion between cutting and flattening;

3. Manual or foot control action;

4. With automatic counting function;

5. There are safety protection door panels around.
