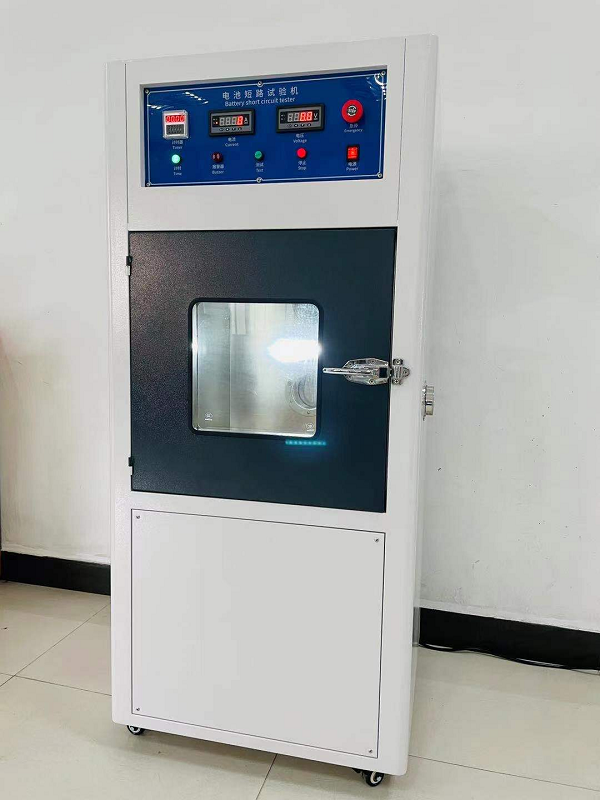

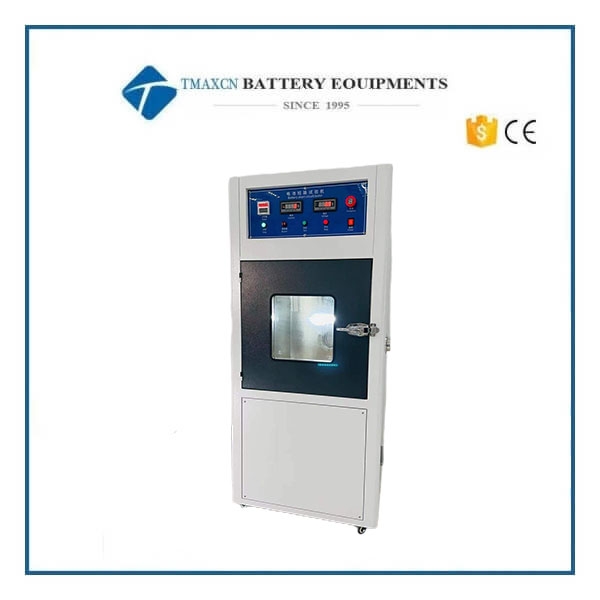

Battery Short Circuit Tester

Battery Short Circuit Tester for Overcurrent and Fire Hazard Simulation under Specific Resistance

  • Model Number:

    TMAX-ZS-1003

  • Compliance:

    CE Certified

  • Warranty:

    1 Year limited warranty with lifetime support

  • MOQ:

    1

  • Payment:

    L/C D/A D/P T/T Western Union

  • Delivery Time:

    5 days
Product Details

Battery Short Circuit Tester for Overcurrent and Fire Hazard Simulation under Specific Resistance


I. Product Overview

This machine is used to test whether a battery will explode or catch fire under short-circuit conditions with a certain resistance, and also displays the maximum short-circuit current through relevant instruments.


II. Standards

GB, IEC, EN, UN38.3, UL 2054, QC/T 744-2006, QC/T 743-2006, and other testing standards.


 III. Technical Parameters:

Working Voltage

AC 220V 50Hz-60Hz

Impulse Voltage

AC 1kV/1.2-50μs (peak value) for 1 minute

Test Voltage

0-100V

DC Response Time

≤5μs

Maximum Short-Circuit Current

500-2000A

Device Internal Resistance

80 ± 20mΩ

Action Time

Pickup/Release Time ≤30ms

Action Characteristics

Cold state pickup voltage ≤66% Us, cold state release voltage ≤30% Us, ≤5% Us

Inner Chamber Dimensions

500x500x500mm (LxWxH), customizable

Weight

Approx. 80kg

Power Supply

AC220V, 50Hz/60Hz
