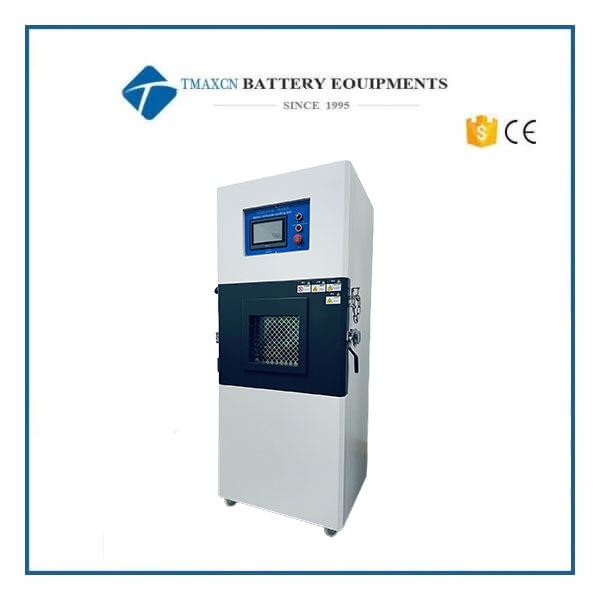

Battery Compression Tester for Simulating Crush Scenarios
Model Number:
TMAX-ZS-1002Compliance:
CE CertifiedWarranty:
1 Year limited warranty with lifetime supportMOQ:
1Payment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Battery Short Circuit Tester for Overcurrent and Fire Hazard Simulation under Specific ResistanceNext:
Battery Needle Penetration Testing Machine for Safety and Thermal Reaction Analysis

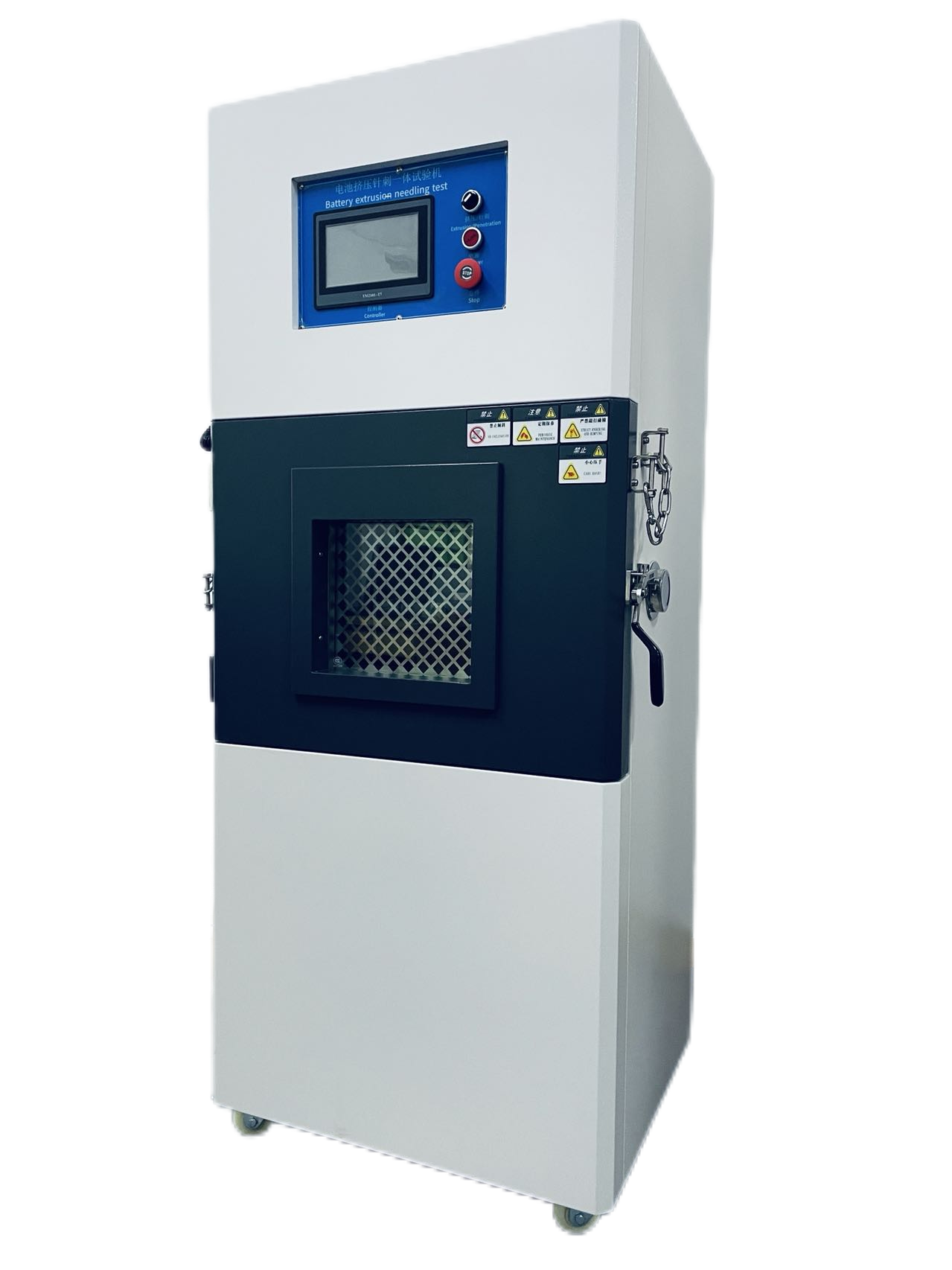

Battery Compression Tester for Simulating Crush Scenarios
I. Product Overview
This battery compression test machine is designed to simulate the compression of batteries during use, transportation, storage, or disposal, to evaluate their ability to withstand compression without explosion or fire. The battery passes the test if it does not explode or catch fire.
II. Standards
GB 31241-2014, GB/T 8897.4-2008, YD/T 2344.1-2011, GB/T 21966-2008, MT/T 1051-2007, YD 1268-2003, GB/T 19521.11-2005, YDB 032-2009, UL 1642, UL 2054, IEC 62281, IEC 60086
III. Technical Parameters:
Drive Method |
Hydraulic drive |
Force Range |
1 ~ 20kN |
Force Accuracy |
0.1N |
Unit Conversion |
kg, N, lb |
Compression Stroke |
200mm or 300mm |
Force Display |
LCD or touchscreen display |
Compression Head |
Standard compression head, area ≥ 20cm² |
Compression Force |
13 ± 0.2kN, hold for 1 minute |
Cabinet Material |
Stainless steel inner box, cold-rolled steel plate outer box with spray coating |
Features |
Ventilation and pressure relief design at the rear of the cabinet, lighting inside the test chamber |
Test Space |
300x300x300mm (LxWxH) |
Dimensions |
700x800x1830mm (LxWxH) |
Weight |
Approx. 220kg |
Power Supply |
AC380V, 50HZ |
