Automatic Plastic Sheet Reflective Film PVC Film Copper Foil Aluminum Foil Bubble Film PVC Film Mobile Phone Film Non Woven Fabric Cutting Machine
Model Number:
TMAX-HZX-400DDimension(L*W*H):
L800*W650*H390mmNet Weight:
55KGCompliance:
CE CertifiedWarranty:
One year limited warranty and lifetime supportMOQ:
1Payment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Automatic Heat Shrinking Tube Nickel Strip Plastic Tape Cutting Machine for PVC Tube/Label/Film/Foil/Sleeve/Copper Foil/Aluminum Foil CuttingNext:
Plastic Pipe Plastic Sheet Rubber Pipe Nickel Alloy Sheet Nickel Strip Nickel Belt Wire Rope Cutter Cutting Machine
Product Details

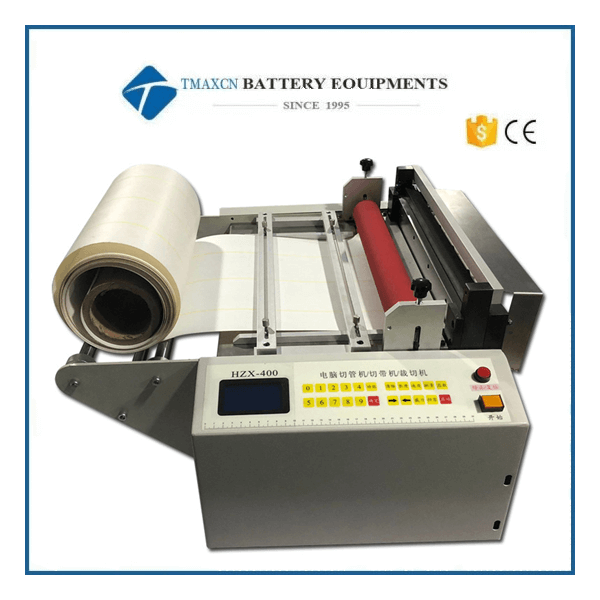

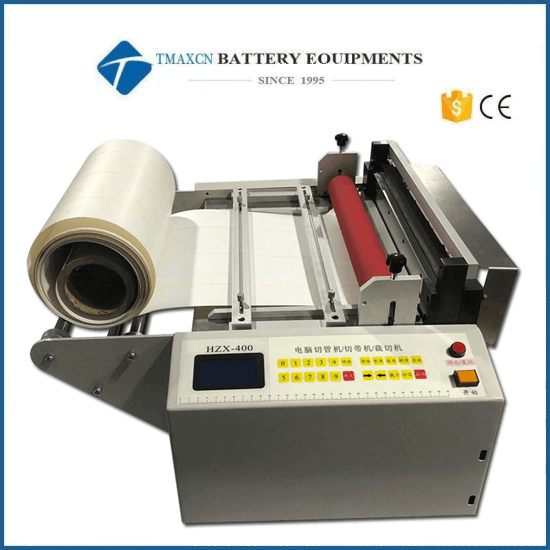

Automatic PVC Film Copper Aluminum Foil Bubble Film
Cutting Machine
Features :
Cutting speed:100 times per minute (50mm length,for example)
Cuttable materials: non-woven fabric, wallpaper edge, PVC film, reflective film, copper foil, aluminum foil, glass cloth, fiber cloth, mobile phone film, plastic sheet, bubble film, velvet, etc.
Specification:
Model |
Cutting Tool |
Speed (mm) |
Weight (kg) |
Cutting Width (mm) |
Cutting Length (mm) |
Precision (mm) |
Cutting Thickness (mm) |
HZX-400 |
Upper and lower knives |
34 |
50 |
1-360 |
0-9999.9 |
0.1 |
0.5 |
HZX-500 |
Upper and lower knives |
34 |
75 |
1-460 |
0-9999.9 |
0.1 |
0.5 |
HZX-600 |
Upper and lower knives |
34 |
83 |
1-560 |
0-9999.9 |
0.1 |
0.7 |
HZX-700 |
Upper and lower knives |
34 |
92 |
1-660 |
0-9999.9 |
0.1 |
0.8 |
