products
Cutting Machine

Automatic Heat Shrinking Tube Nickel Strip Plastic Tape Cutting Machine for PVC Tube/Label/Film/Foil/Sleeve/Copper Foil/Aluminum Foil Cutting

  • Model Number:

    TMAX-YS-100
  • Dimension(L*W*H):

    360*300*350mm
  • Net Weight:

    30KG
  • Compliance:

    CE Certified
  • Warranty:

    One year limited warranty and lifetime support
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details


Automatic Heat Shrinking Tube Nickel Strip Plastic Tape Cutting Machine for PVC Tube/Label/Film/Foil/Sleeve Cutting



Features :

1.High speed: It can cut 100~120 cut per minute. (50mm long)

2.High accuracy: Cut-length is accurate, cut length can be set between 0.1-9999.9mm.

3.Cutting type: For cold cut and Optional hot cut. Hot cut suitable for materials that needs hot sealing, such as Nylon webbing, polyester webbing, etc.

4.Automatic operation: It works automatically only by setting length and quantity. Save labor, high efficiency.

5.Automatic stopper: It stops automatically if materials run out during operation

6.Memory: Set-length, set-q'ty & set-speed are not erased even if power off & on

7.Application:The cutting machine is suitable for cutting tubes, cable, webbing/ribbon/belt, small wire, sheet and film, etc.

8.High speed, high accuracy, designed for cutting non-adhesive materials.



YS-100: Cut tubes with diameter less than 13mm

 Customization: cutting width from 100mm-1600mm.

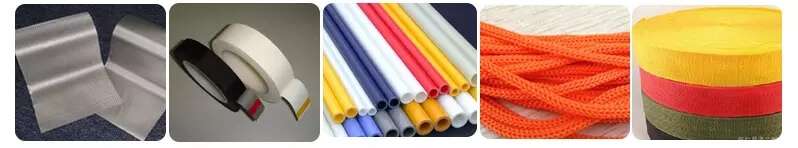

Application

The cutting machine is suitable for cutting tube, ribbon/webbing/belt, cable/wire, sheet, film etc.

Tube: PVC tube, heat shrink tube, PVC heat shrinking tube, fiberglass tube, corrugated tube, etc.

Cable: Flat cable, copper wire, etc

Tape: nickel strap, hook and loop, cotton tape, elastic band, plastic tape, zipper, conductive tape,foam, etc

Sheet: battory separator, Nickel sheet, diffusersheet, plastic/rubber sheet, pvc sheet,etc

Film: plastic film, reflecting film, double-sided tape, Malar film, insulation paper, PE, Copper/Aluminum foil, release paper,etc



Model

Cutting Length

Cutting Width

YS-100

  Customized

100mm

YS-200

 Customized

200mm

YS-300

 Customized

300mm

YS-400

 Customized

400mm

YS-500

 Customized

500mm

YS-600

 Customized

600mm

YS-700

 Customized

700mm

We can accept the cutting width from 100mm-1600mm according to your request.



Specifications

Model

Nickel Cutting Machine  YS-100

Source voltage

AC 220V/110V, 50/60HZ, Customized

Power

200W

Warranty

One year limited warranty with lifetime support

Advantages

1. In automatic stop without materials, unattended

2. With a knife or blade adjustment conveniently

3. Automatic grouping and total cumulative count

4. Suitable for all kinds of metal and no-metal strip materials, such as  copper foil,

aluminum foil, copper foil tape, batteries nickel belt and so on

Cutting speed

0-130times/min

Cutting length

0.1mm-9999.9mm

Cutting width

0.1-100mm, according to model customer choose

Dimension(L*W*H)

360*300*350mm

Weight

About 30kg



Cutting Material
