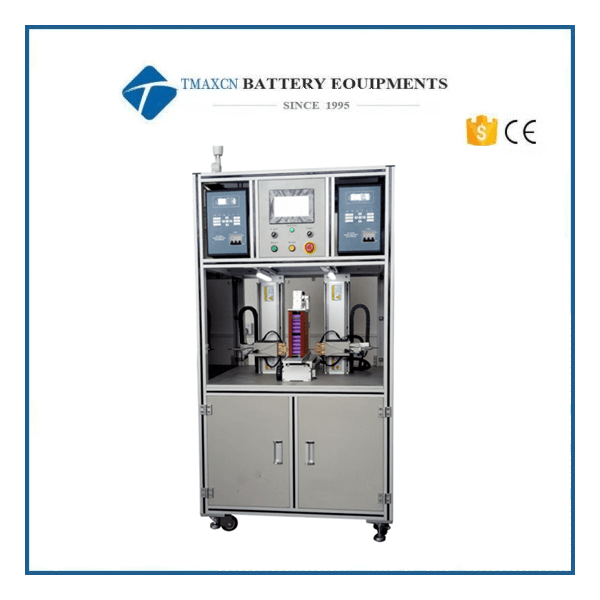

Automatic Double Side Pneumatic Numerical Control Spot Welding Machine for 18650 Power Battery Energy Storage Battery Pack Welding
Model Number:
Tmax-DW300Type:
AutomaticInput Power:
4000WDimension(L*W*H):
900mm*900mm*1700mmNet Weight:
350kgCompliance:
CE Certified/NRTL CertifiedWarranty:
One years limited warranty with lifetime technical supportShipping Port:
XiamenMOQ:
1Payment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13174506016
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Automatic Nickel Sheet Feeding Machine Wire BonderNext:
Automatic Double Side Energy Storage Spot Welding Machine

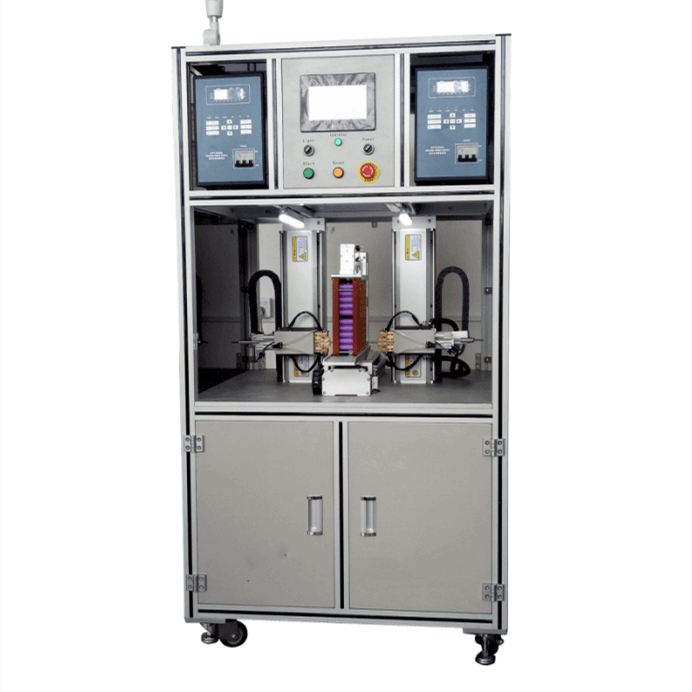

Automatic Double Side Pneumatic Numerical Control Spot Welding Machine for 18650 Power Battery Energy Storage Battery Pack Welding
Features
Full automatic double-sided spot welding machine is suitable for 18650 power, energy storage, solar battery pack and automobile battery pack welding. The key parts of welding precision are high density brass, high precision linear module and servo system.
Realize high-speed spot welding, precise positioning, low noise, stable welding, effectively improve the efficiency of the equipment. Using this equipment to process the same number of products on the same process can save more than 3 labors, which can effectively improve the equipment efficiency and improve the plant capacity.
Application:
New energy lithium battery production equipment, electric vehicle battery automatic production set up in the pool resistance voltage sorting matching scanner, 18650 positive insulation bonding machine, 186502665032650 and other cylindrical battery automatic spot welding machine, pack assembly line production, soft package polymer battery, hardware sheet welding. All of our Energy Storage Battery Assembly are greatly appreciated in a variety of different markets throughout the world.
Specification:
Y-axis Travel |
500mm (can be customized according to request) |
Z1. Z2-axis Travel |
350mm (can be customized according to request) |
Welding Speed |
0.35S/point,5500pcs/h |
Maximum speed of motor transmission |
1000mm/s |
Maximum number of cells loaded |
Y:26 pcs Z:18 pcs (adjustable) |
Number of storable file groups |
99 groups |
Operating system |
Embedded system + man machine interface |
Transmission mode |
Stepping + imported precision linear guide rail, optional servo + screw rod) |
Drying mode |
Stepping servo motor |
Repeat positioning accuracy |
±0.02mm |
Power supply |
Single phase, 220V,50Hz |
Power |
4000W |
Maximum bearing weight of Y-axis |
50kg |
Weight |
350kg |
Size |
900mm*900mm*1700mm |
