Automatic Double Side Energy Storage Spot Welding Machine
Model Number:
TMADX-ENS-SpotDimension(L*W*H):
900mm*1000mm*1750mmNet Weight:
200kgCompliance:
CE CertifiedWarranty:
Two years limited warranty with lifetime technical supportPlace of Origin:
ChinaUpdate:
OptionalShipping Port:
XiamenPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Automatic Double Side Pneumatic Numerical Control Spot Welding Machine for 18650 Power Battery Energy Storage Battery Pack WeldingNext:
Pneumatic Numerical Control Double Sides Spot Welding Machine for Electric Bike Battery/Lifepo4 Battery Pack Making

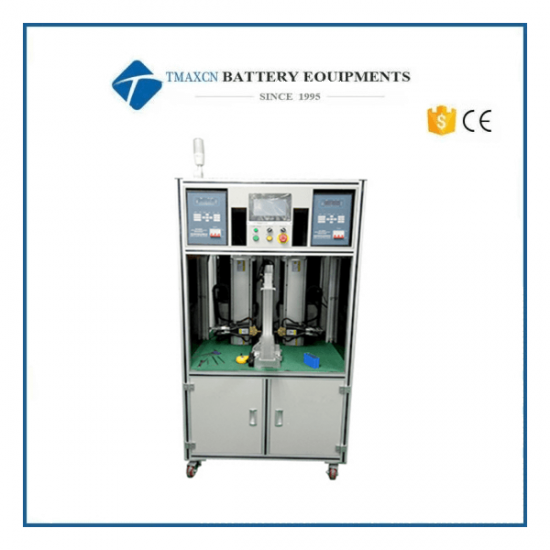

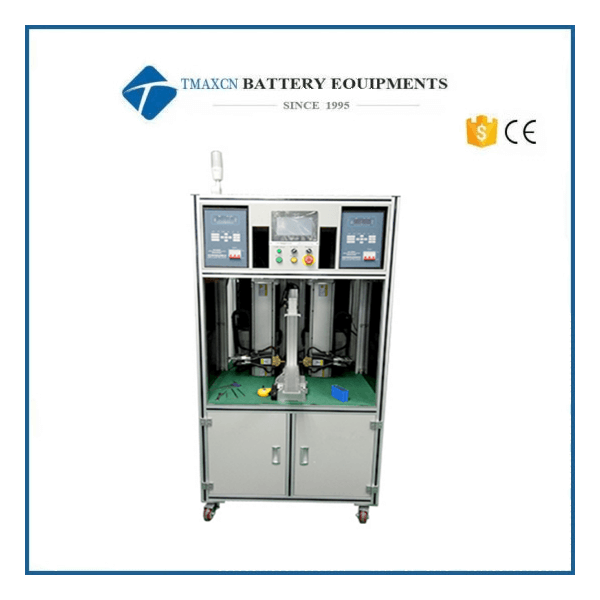

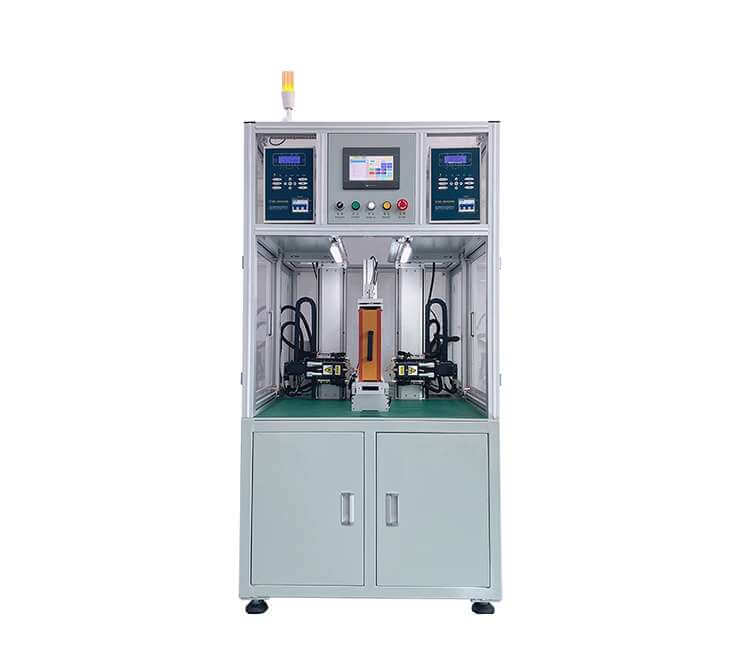

Automatic Double Side Energy Storage Spot Welding Machine
Feature
1. Support breakpoint start, automatic start and manual start mode conversion.
2. It has the function of false welding and desoldering alarm
3. The programming is simple, and supports any point programming and array programming. It can store 99 groups of programming files.
4. Warning of welding pin replacement forecast
5 with welding current monitoring system, can monitor welding current in real time.
We provide a full series of Energy Storage Battery Assembly for different customers.
Specification
Y-axis Travel |
350mm |
Z1. Z2-axis Travel |
350mm |
Welding Speed |
0.35S/point,3600pcs/h |
Maximum speed of motor transmission |
1000mm/s |
Maximum number of cells loaded |
450pcs(18650 cell) |
Number of storable file groups |
99 groups |
Operating system |
Embedded system + man machine interface |
Transmission mode |
Stepping + imported precision linear guide rail, optional servo + screw rod) |
Power supply |
Single phase, 220V,50Hz |
Air supply |
0.4-0.7Mpa |
Weight |
200kg |
Size |
900mm*1000mm*1750mm |
