Automatic Cutting Machine for PVC Wires Electronic Wire Teflon Wire Silicone Line Casing Wires
Model Number:
TMAX-HZX-220Dimension(L*W*H):
450*720*360mmNet Weight:
39KGCompliance:
CE CertifiedWarranty:
One year limited warranty and lifetime supportMOQ:
1Payment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Automatic Cutting Machine for Casing Wires Electronic Wire Teflon Wire PVC Wires Silicone Line CasingNext:
Automatic Cutting Equipment for Wires/Flat Wires/Sheathed Wires/Steel Wires/Electronic Wire/Stainless Steel Wire
Product Details

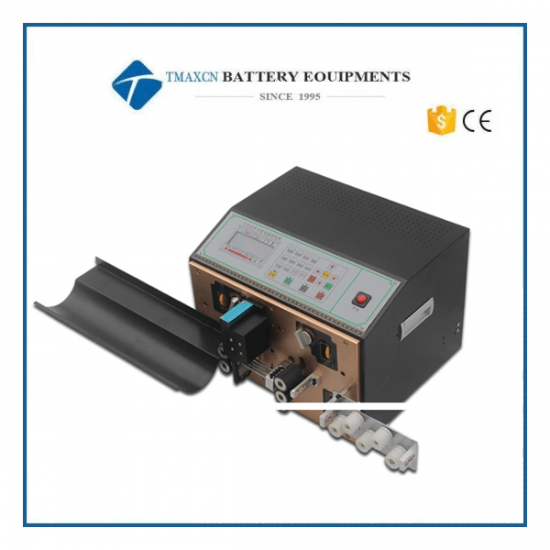

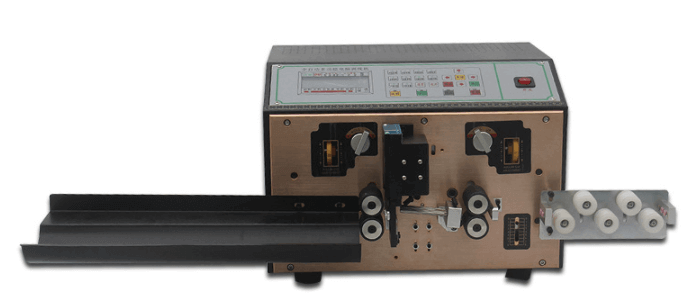

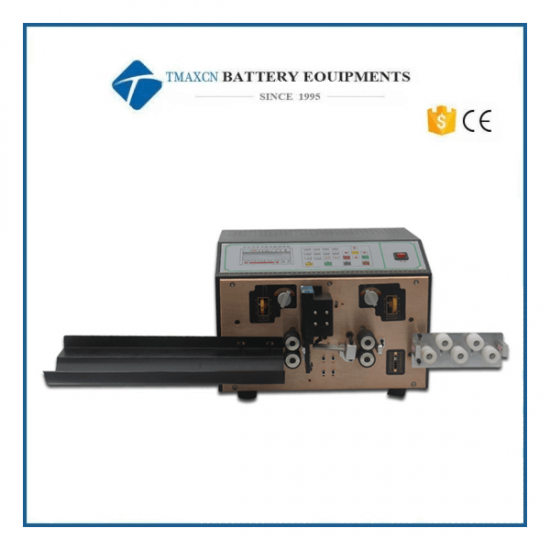

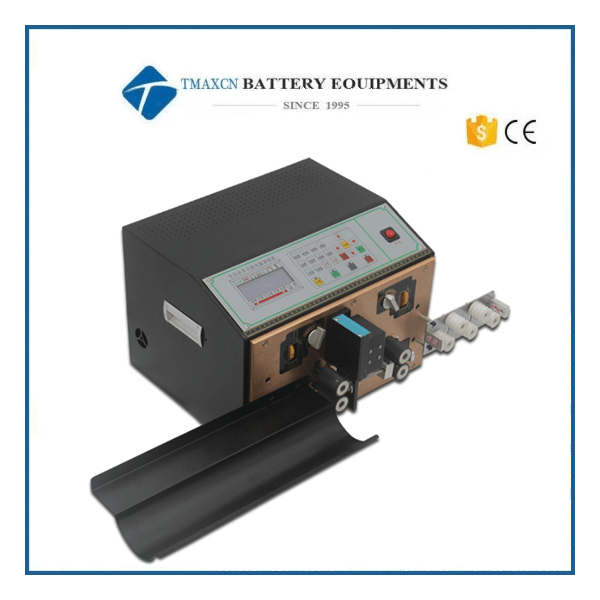

Automatic Cutting Machine for Electronic Wire Teflon Wire Silicone Line
Features :
TMAX-HZX-220 has the function of stripping and cutting, and the function of twisting is added on the basis of hzx-200. The machine is suitable for stripping, intermediate stripping and twisting of electronic wires, casing wires, silicone wires, Teflon wires, glass fiber wires, isolation wires, silica gel wires, coaxial lines, PVC wires, etc. It also enhanced the design of ultra short line.
Stripping range： For electronic wire, Teflon wire, silicone line, glass fiber lines, isolated lines, coaxial, etc.

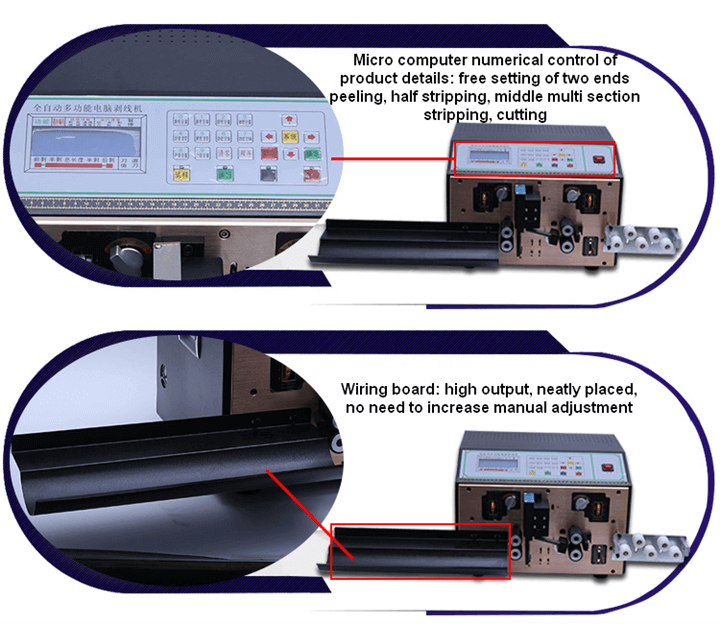

Stripping function： Automatic cut, skinned, intermediate stripping, etc.
Specification:
Model |
HZX-220 |
Dimensions |
450mm*720mm*360mm |
Weight |
39kg |
Voltage |
AV110V/220V |
Power |
0.18kw |
Cutting length |
0.1 -6000mm |
Simultaneously |
2pcs(more can be customized, such as cutting 3 / 4 at the same time) |
Stripping length |
0.1-99mm （Depending on the material）Determined on wire materials |
Stripping speed |
5000-6000PCS |
Accuracy |
0.002*Lmm |
Applicable wire |
AWG#12-AWG#32 |
