Automatic 18650 Cells Single Side Spot Welding Machine
Model Number:
TMAX-DH10000Input Power:
500wMax. Loading Capacity:
About 1000mm*1000mm*1800mmNet Weight:
200KGCompliance:
CE CertifiedWarranty:
One years limited warranty with lifetime technical supportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Ultra Quiet and Oil-Free Steel Tank Air Compressor with connection kitNext:
1-40 Layers Stacked Electrode Ultrasonic Welder for (Cu&Al) Tab Welding

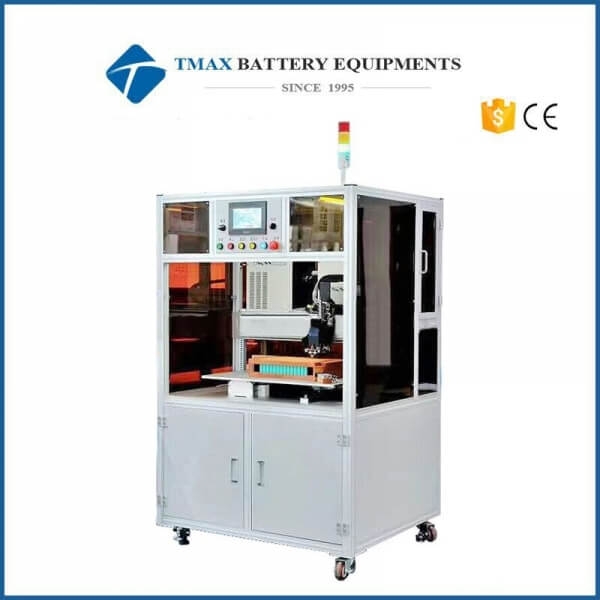

Automatic 18650 Cells Single Side Spot Welding Machine
This machine is used for 18650,26650,32650 cylinder battery pack automatic spot welding.
Features :
1.Support break point start, support automatic start and manual start
mode conversion.
2.It has a false spot welding and out of spot welding alarm function.
3.Programming is simple, and it supports any point programming and
array programming. 999 groups can be saved programming files.
4.Welding needle replacement forecast reminder.
5.Own welding current monitoring system, real-time monitoring of
welding current.
Model |
TMAX-DH-10000 |
X-axis
travel |
380mm |
Y-axis
travel |
540mm |
Spot
welding speed |
0.5s /
point; 1600pcs / h |
Maximum
speed of motor drive |
1000mm/s |
The maximum
number of batteries loaded |
300pcs
(standard 18650 lithium battery) |
Number of
groups for storing files |
99 groups |
Operating
system |
Embedded
system + man-machine screen |
Transmission |
Stepper +
imported precision linear guide (optional servo + screw) |
Power
supply |
Single-phase
220V ± 10% / 50Hz ± 10% |
Power |
<500w |
Air supply |
0.3 ~
0.4Mpa |
Weight |
200KG |
Dimensions |
About
1000mm*1000mm*1800mm |

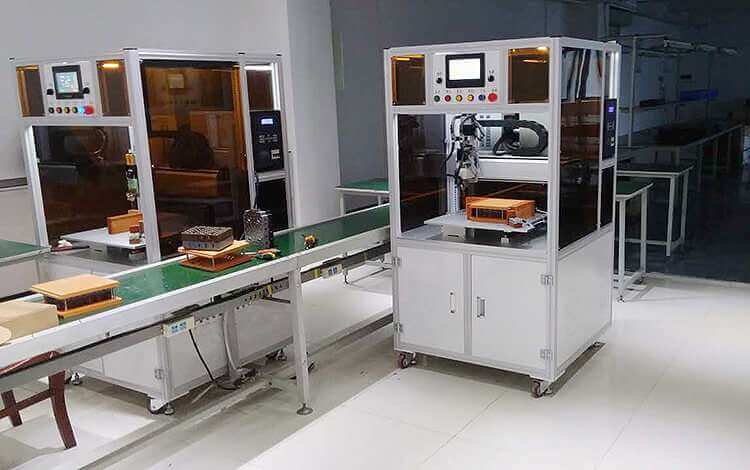

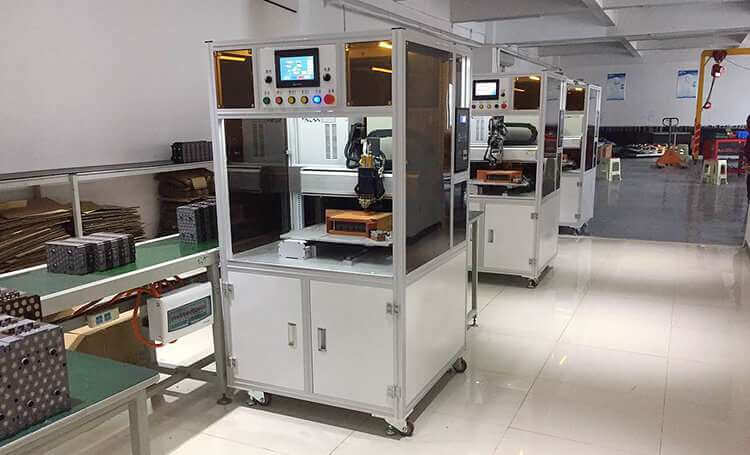

Product Display

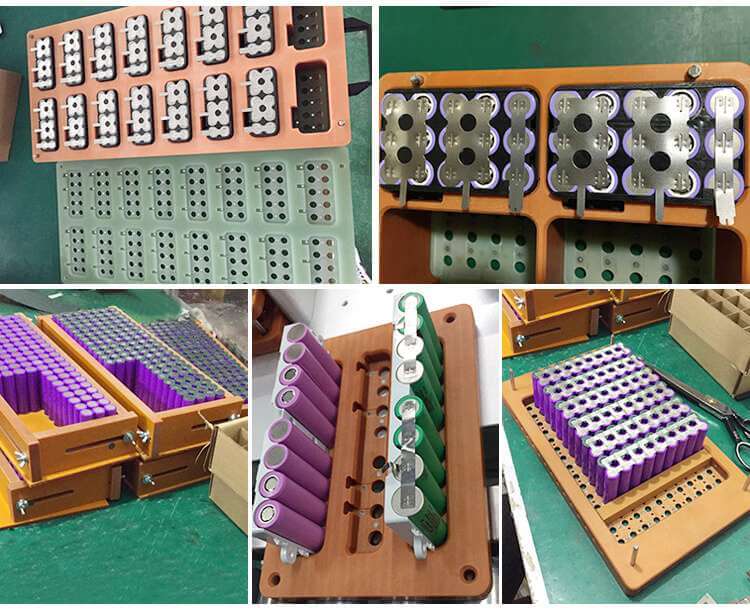

Welding Clamp Display
