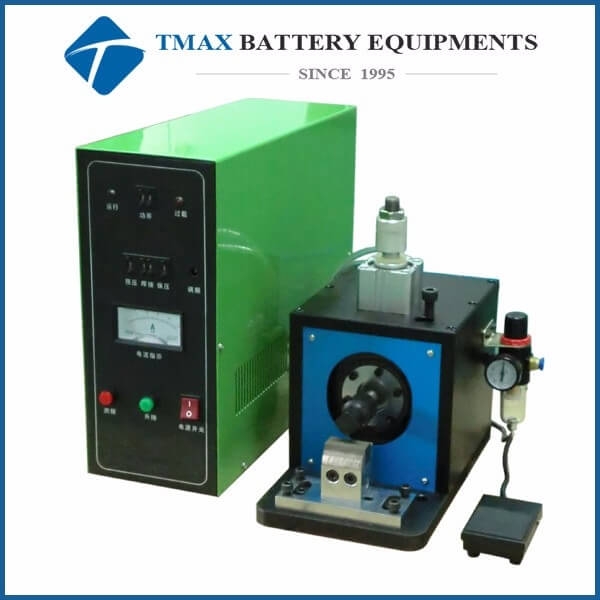

1-40 Layers Stacked Electrode Ultrasonic Welder for (Cu&Al) Tab Welding
Model Number:
TMAX-DH1000Input Power:
800W-2000WDimension(L*W*H):
5.2mm(L) x 5.2mm(W)Net Weight:
61 kg (135 lbs)Compliance:
CE CertifiedWarranty:
One Year limited warranty with lifetime supportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Automatic 18650 Cells Single Side Spot Welding MachineNext:
Al Tab Ni Tag Ultrasonic Welding Machine
1-40 Layers Stacked Electrode Ultrasonic Welder for (Cu&Al) Tab Welding
Ultrasonic metal welder/welding machine/battery welder/battery spot welder/battery pack for lithium ion battery in R&D lab ultrasonic welder for battery
1.lithium ion battery in R&D lab
2.anode&cathode tabs welder
TMAX-DH1000 ultrasonic metal welderis a CE Certified ultrasonic metal welder designed for welding stacked electrode sheets (Copper & Aluminum) and tab onto current collectors to prepare Li-Ion pouch cells in R&D laboratories. We will continue to provide better Ultrasonic Welding Machine for you.
Specifications：
Features |
Preset welding programs selectable for Al and Cu (Note: Welding power can be readjusted to fit the needs for welding other types of metals such as Au, Fe, Ni, Ag...). |
Input Voltage |
AC 110V or 220V +/-10%, 50/60Hz |
Max. Power Consumption |
800W |
Welding Area |
4mm(L) x 4mm(W) |
Welding Head |
The welding heads and welding bases are included for welding both aluminum & copper current collectors from 2 to 15 layers |
Ultrasonic Frequency |
40K Hz |
Product Dimensions |
1. Controller: 360mm(L) x 480mm(W) x 200mm(H) 2. Welder: 200mm(L) x 460mm(W) x 270mm(H) |
Net Weight |
60kg |
Compliance |
CE Certificate |
Warranty |
One Year limited warranty with lifetime support |
Application Notes |
Nickel and Aluminum Tabs can be welded onto different types current collecting substrates (Aluminum or Copper) when making battery electrodes. |
