Auto Grooving Machine Beading Machine for Batch Processing of Cylindrical Battery Casings
Model Number:
Tmax-grooving003Dimension(L*W*H):
W1080mm*D660mm*H1200mNet Weight:
1000lbsCompliance:
CE CertifiedWarranty:
2 Year limited warranty with lifetime supportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Auto Crimping Machine for Cylindrical Battery CasingsNext:
Automatic Battery Cleaning Machine for Cylinder Cell

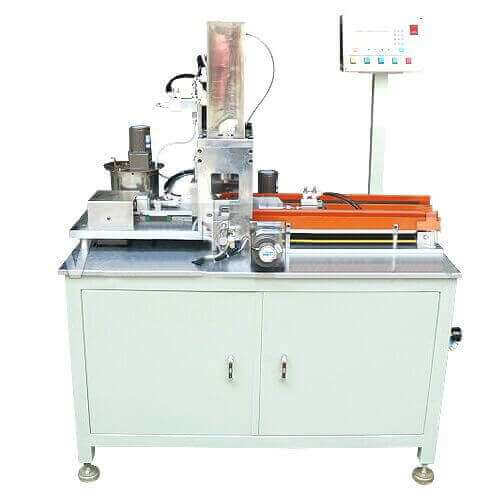

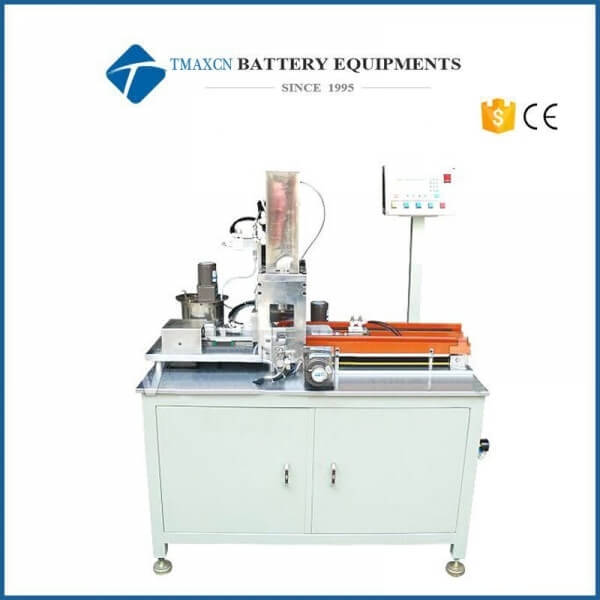

Auto Grooving Machine Beading Machine for Batch Processing of Cylindrical Battery Casings
It is an auto grooving machine for cylindrical battery cases. It
provides a continues workflow for case batch loading
- neck grooving - case unloading without dedicated labor.
Advanced Features:
· Efficient

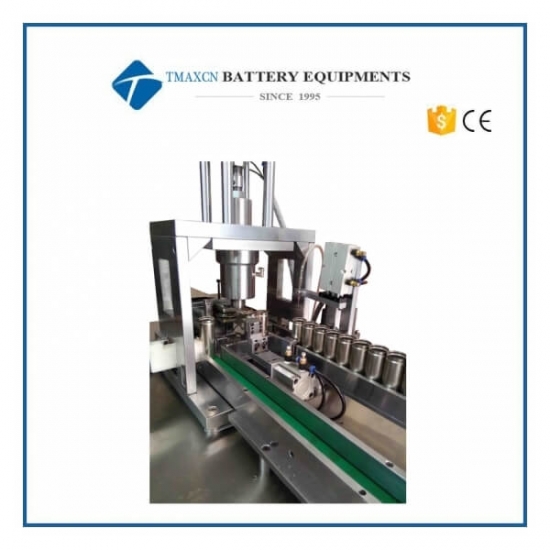

batch loading/unloading mechanism with case feeding conveyor
· Horizontally positioned grooving blade
ensures the most stable and accurate grooving
· Micrometer assisted grooving depth &
height adjustment
· Ability to compensate the axial deformation of
a cylindrical casing
· User-friendly human-machine interface with
PLC touch screen control
· Floor-Stand enclosure with transparent front
& side openable windows allow clear process monitoring and adjustment
Specifications:
Working Voltage |
110/220V AC, 50/60Hz |
Max. Power Consumption |
1KW |
Air Pressure |
0.5 MPa~0.8Mpa is required |
Compatibility |
Standard grooving capability for 18650 case |
Control |
User-friendly HMI with PLC touch screen control ensures easy program setup |
Grooving Dimensions |
Micrometer assisted grooving depth & height adjustment · Depth: 1 - 2.0 mm · Width: 1 - 1.5 mm |
Grooving Accuracy |
+/- 0.1 mm |
Grooving Blade Life Span |
>1 million times |
Grooving Force |
6kgf/cm^2 |
Compression Ratio |
Percentage in height: 80% |
Productivity |
· Material feeding conveyor is able to load upto 22 pcs per batch · 30 pieces per minute |
Product Dimensions |
W1080mm*D660mm*H1200mm |
Net Weight |
1000lbs |
Warranty |
· One year limited with lifetime support · Rusting and damage due to improper storage condition or maintenance are not covered by warranty |
