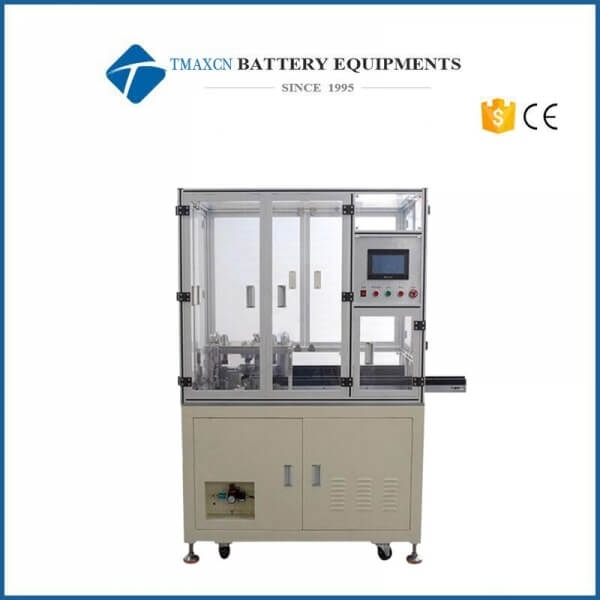

Auto Crimping Machine for Cylindrical Battery Casings
Model Number:
Tmax-crimper003Dimension(L*W*H):
W1200mm*D690mm*H1765mmNet Weight:
800lbsCompliance:
CE CertifiedWarranty:
Two years limited warranty with lifetime technical supportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Crimping Machine for Cylindrical Battery ResearchNext:
Auto Grooving Machine Beading Machine for Batch Processing of Cylindrical Battery Casings
Auto Crimping Machine for Cylindrical Battery Casings
Ⅰ、Introduction
It is an auto crimper designed for sealing the cylindrical battery cases. It provides a continues workflow for case batch loading - crimping - case unloading without dedicated labor.
Ⅱ、Advanced Features
· Efficient
batch loading/unloading mechanism with case feeding conveyor

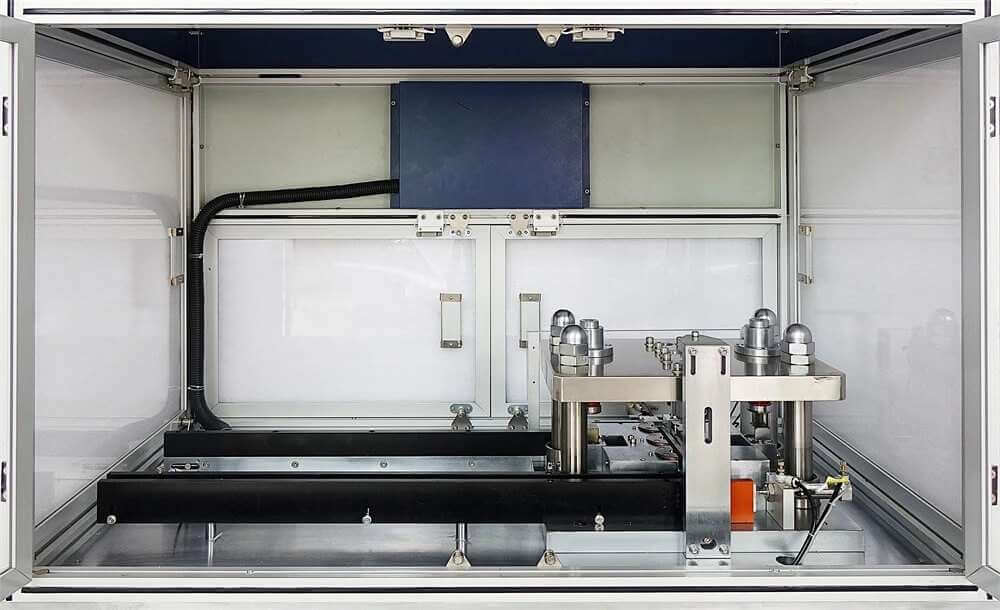

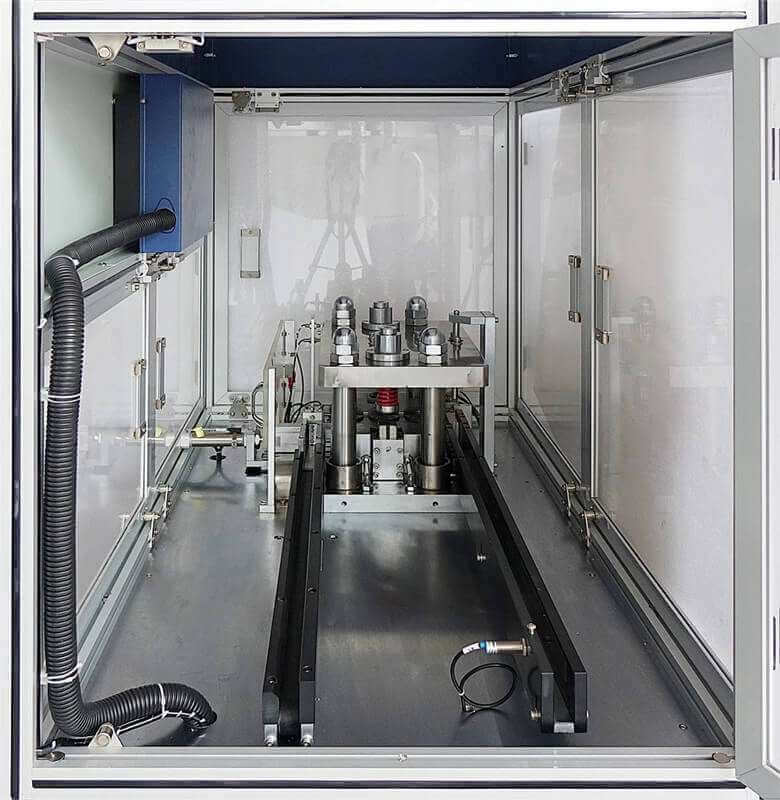

· Dedicated Four-step crimping process (1st
& 2nd trials for pre-deformation, 3rd trial for complete sealing and 4th
trial for case consolidation) ensures the most stable & consistent sealing
quality
· Crimping speed and pressure is adjustable
· User-friendly human-machine interface with
PLC touch screen control

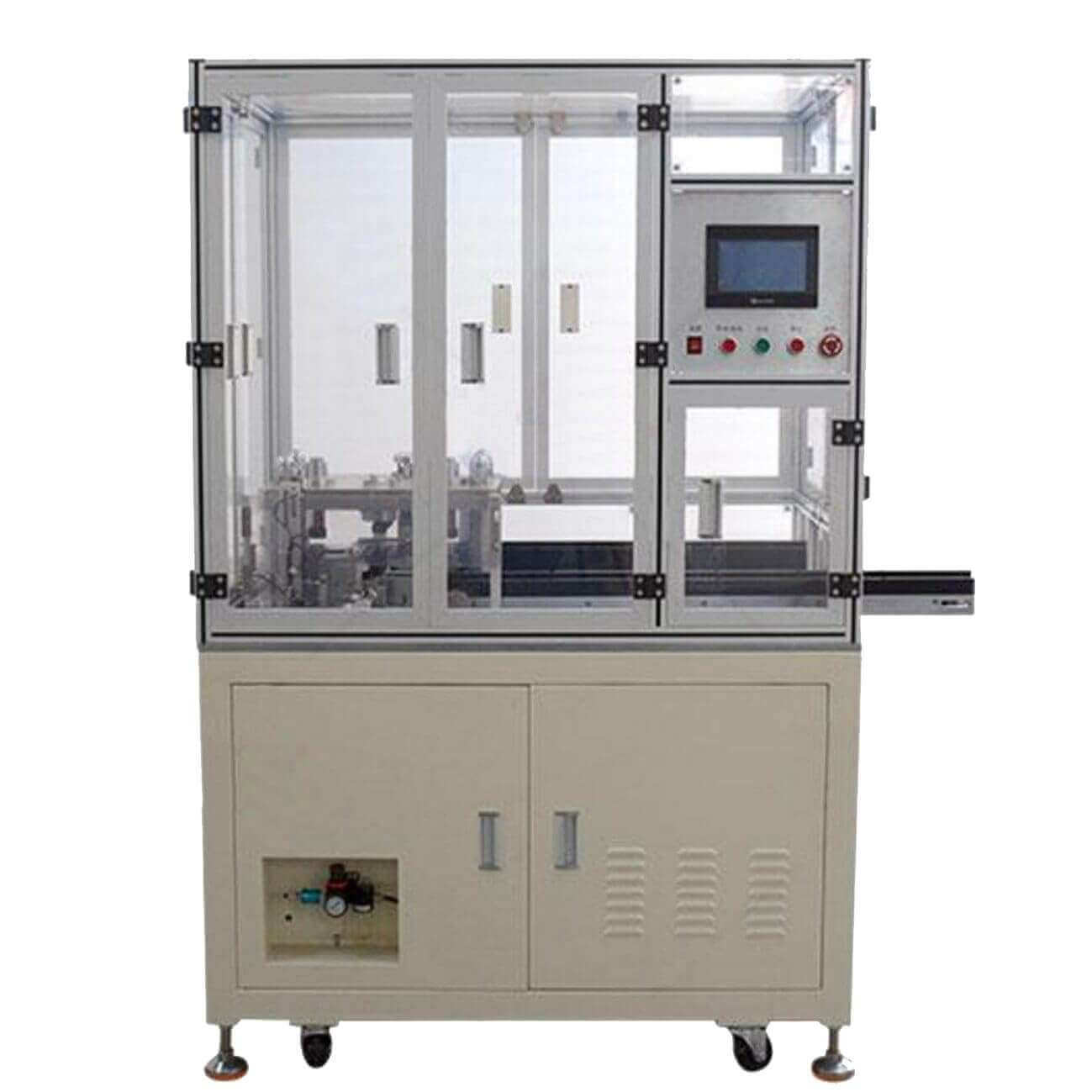

· Floor-Stand enclosure with transparent front
& side openable windows allow clear process monitoring and adjustment
Ⅲ、Specification
Working Voltage |
110/220V AC, 50/60Hz, three Phase |
Max. Power Consumption |
4KW |
Driving Force |
Penumatic, 0.5 - 0.8 MPa compression gas is required |
Compatibility |
Standard crimping capability for 18650 case |
Control |
User-friendly HMI with PLC touch screen control ensures easy program setup |
Crimping Force |
Upto 6kgf/cm² |
Productivity |
· 30 pieces per minute · Material feeding conveyor is able to load upto 22 pcs per batch |
Warranty |
· One year limited with lifetime support · Parts rusted without regular cleaning and maintenance are not covered |
Product Dimensions |
W1200mm*D690mm*H1765mm |
Net Weight |
800 lbs |
