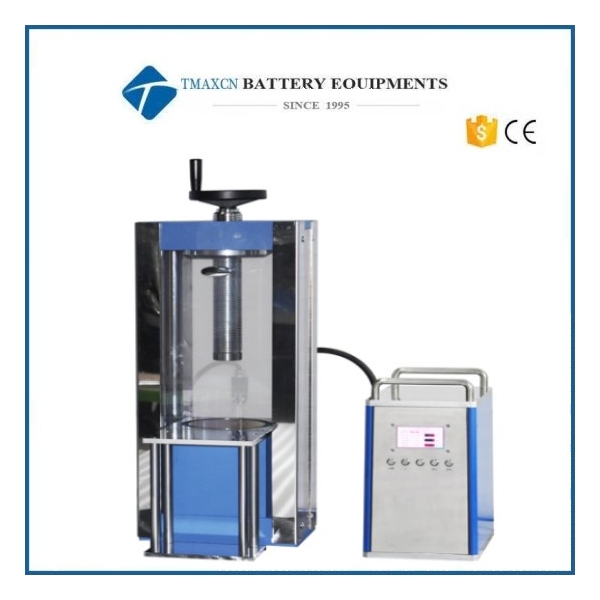

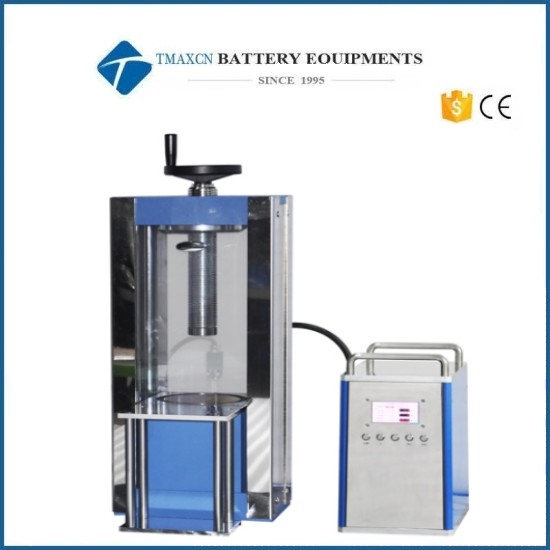

65T Electric Powder Tablet Press with 4.3 Inch LCD Screen
Model Number:
TMAX-DYP-65TFSCompliance:
CE CertifiedWarranty:
One year limited standard warrantyPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
100T Automatic Lab Hydraulic Press with Plexiglass Doorsheet Steel ProtectionNext:
Lab 60T Automatic Isostatic Powder Pressing Machine
Product Details

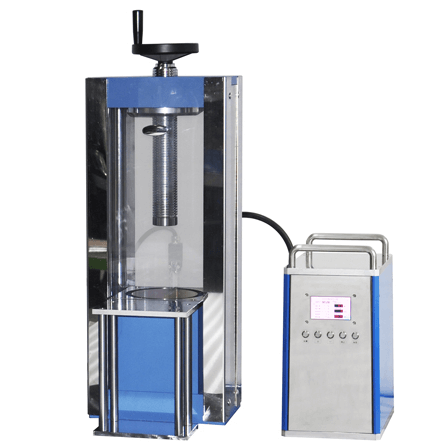

65T Electric Powder Tablet Press with 4.3 Inch LCD Screen
A. Parameter
Model |
DYP-65TFS |
Pressure range |
0-65T |
Piston diameter |
Cylinder diameter 160mm(d) |
Pressurization process |
Program pressurization - program pressure maintenance - timed pressure relief |
Compress time |
0-999.59 minutes |
Pressure conversion |
The program automatically converts the pressure on the sample |
LCD |
4.3 inch LCD screen |
Equipment protection |
Steel protectionwith plexiglass door |
Cylinder stroke |
50mm (T) |
Space size |
220*300mm(M*N) |
Dimensions |
580*700*800mm(L*W*H) |
Device power |
220V(50Hz/60Hz) |
Equipment weight |
280kg |

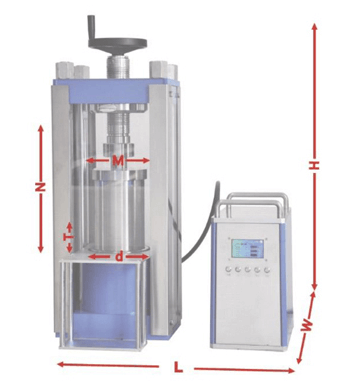

Tablet press size diagram |
|

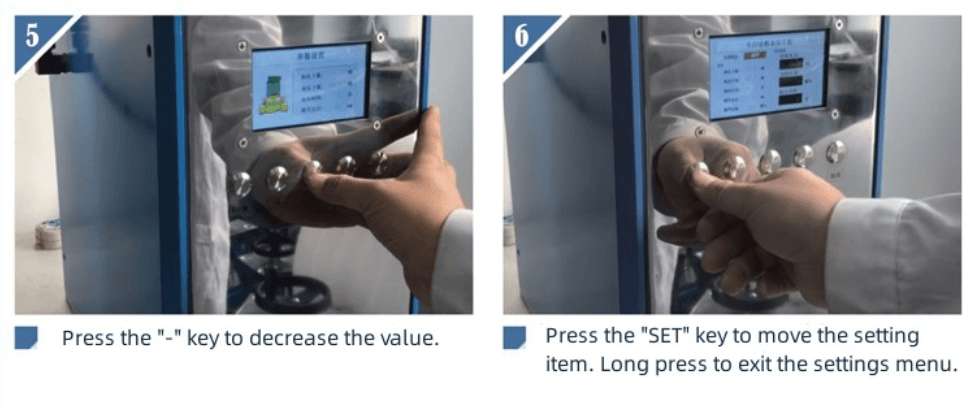

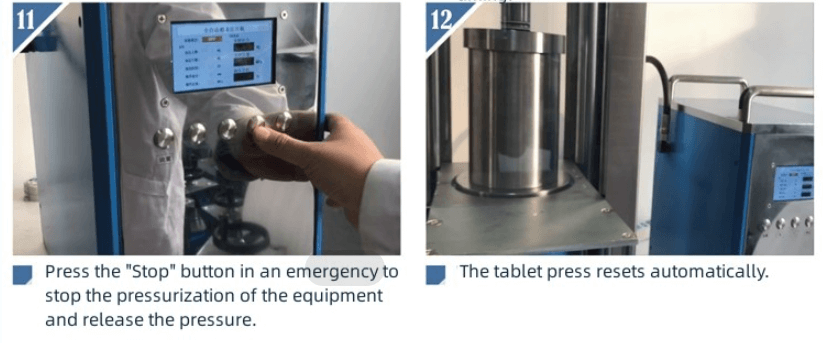

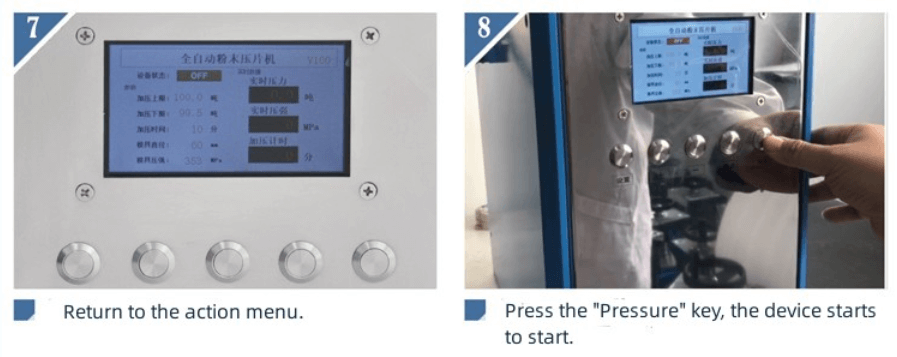

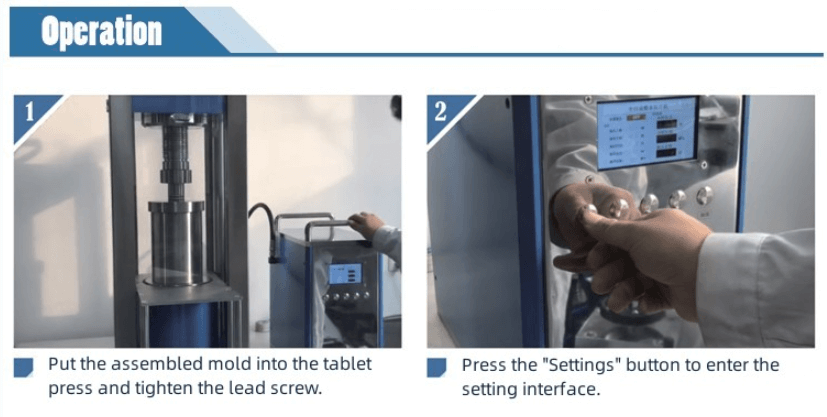

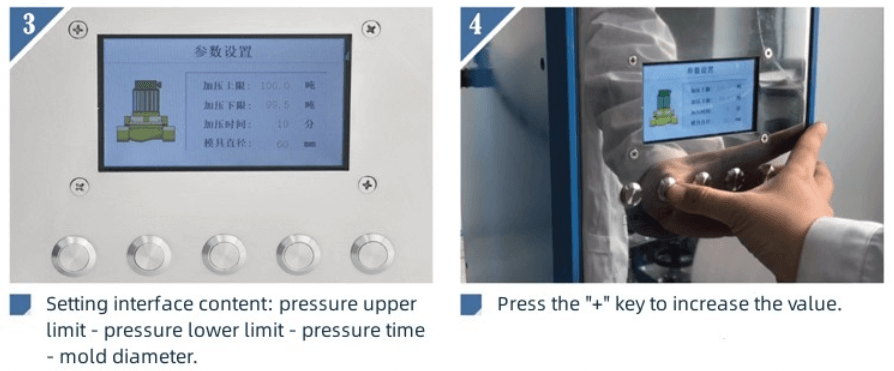

B. Operation
