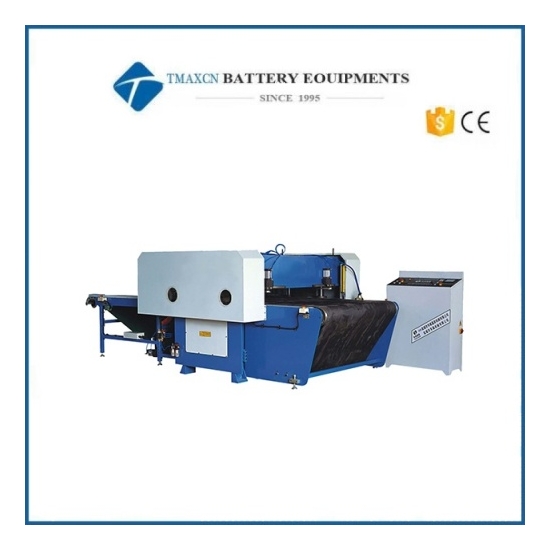

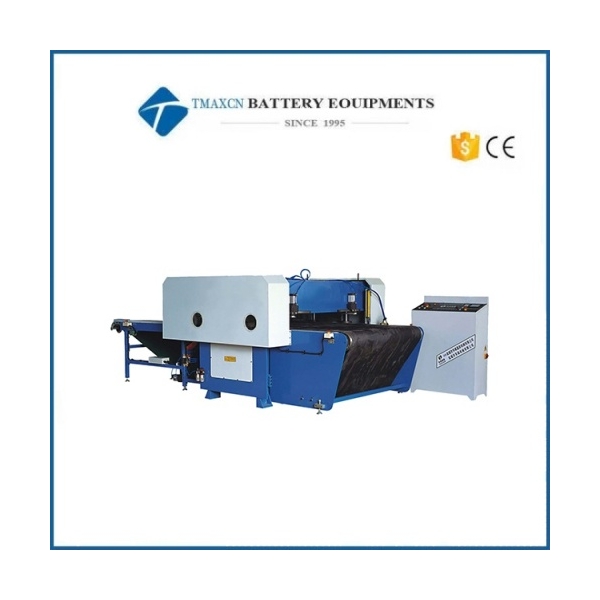

600KN Automatic Continuous Beam Press Die Cutting Machine For Leather/Rubber Cutting

600KN Automatic Continuous Beam Press Die Cutting Machine For Leather/Rubber Cutting

Application and characteristics

1. This machine is suitable for large factories to use molding die to carpet, leather, rubber, cloth and other non-metallic materials for continuous mass blanking operations

2. The conveying part is controlled by PLC, the material is input from one side of the machine by servo motor, and output from the other side after die cutting to ensure accurate feeding and smooth running; And the feeding length can be easily adjusted through the touch screen.

3. The main machine adopts four-column guide, double crank balance, four-column block fine-tuning mechanism, hydraulic system control, to ensure the speed and accuracy of the machine die cutting, all the sliding connection parts adopt central oil supply automatic lubrication device, so that the wear is minimized.

4. The input and output of materials are transported on the conveyor belt, and the die-cutting and punching of materials are also automatically completed on the conveyor belt.

5. Photoelectric pneumatic correction device is used to ensure the accuracy of the conveyor belt operating position.

6. The feed and discharge ports in the cutting area of the machine are equipped with safety light curtains to ensure the personal safety of the operator.

7. Pneumatic clamping device is used to fix the tool die, and the replacement of the tool die is convenient and fast.

8. Special specifications can be customized.

Main technical parameters:
