5V 10A Battery Tester

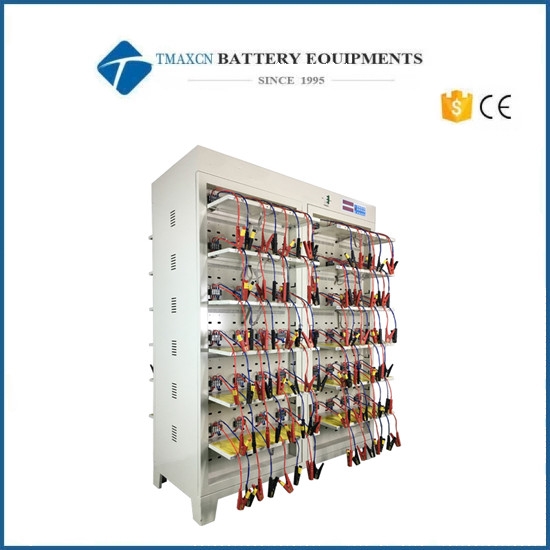

5V 10A 192 Channel Power Battery Capacity Cabinet (w Regenerative Function)

  • Model Number:

    TMAX-CTS-5V10A

  • Input Power:

    16KW

  • Dimension(L*W*H):

    L1850*W900*H1840mm

  • Compliance:

    CE Certified

  • Warranty:

    1 year

  • MOQ:

    1

  • Payment:

    L/C D/A D/P T/T Western Union

  • Delivery Time:

    25 days
Product Details

5V 10A 192 Channel Power Battery Capacity Cabinet (w Regenerative Function)


1. Equipment structure:
Number of equipment channels: customizable channels for the whole machine are - 512 channels - 256 channels 192 channels - 128 channels - 96 channels - 64 channels
Overall dimensions: 185cm W * 90cm W * 184cm H
Customizable model: 5V-10A 5V-20A 5V-30A
Applicable battery type: power battery (cylindrical battery, polymer battery, flexible battery, square battery)
Chassis color: standard off white (customizable)
Fixture form: terminal+polymer, terminal+alligator clip, cylindrical four wire method, etc. (customizable)
Center distance of fixture: 35mm~155mm
Working power supply: three-phase five wire AC380V+10%, 50Hz
Working power consumption: ≤ 8KW/≤ 11KW/≤ 16KW
Working environment: temperature 0~40 ℃, relative humidity ≤ 80%

Heat dissipation mode: natural air intake and upward exhaust.


2. Channel parameters:
Voltage measurement range: 0V~5V, resolution: 1mV
Battery voltage range: charging 0~4.5V; Discharge 4.5V~2V
Constant voltage range: 2.5V~4.5V
Voltage accuracy: ± (1 ‰ reading+1 ‰ full scale)
Current range: 100mA~10A 200mA~20A 300mA~30A;

Current accuracy: ± (1 ‰ reading+1 ‰ full scale)


3. Software functions:
Control mode: the computer connects the equipment to work, and the whole cabinet controls.
Communication mode: RS485, baud rate 57600
Process settings: Up to 32 work steps and 256 cycles can be set
Charging mode: constant current, constant voltage
Charging cut-off conditions: voltage, current, time, capacity.
Discharge mode: constant current
Discharge cut-off conditions: voltage, time, capacity.
Protection function: overvoltage, undervoltage, overcurrent, undercurrent, overcurrent, etc.
Time range: any setting within 0~30000 minutes
Time accuracy: ≤± 1 ‰
Sampling inspection cycle: ≤ 8S
Minimum data recording frequency: ≤ 8S
Battery sorting: by capacity, time, discharge platform, etc
Data processing: data, graph, etc.
