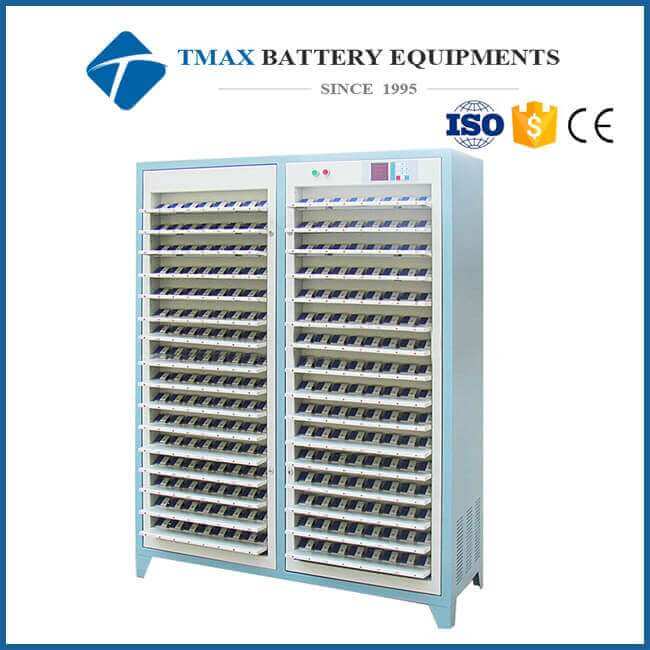

512 Channel Polymer Capacity Battery Tester Machine
Model Number:
TMAX-BT0502-512-LPInput Power:
7000wDimension(L*W*H):
1500*1500*1900mmCompliance:
CE CertifiedWarranty:
1 Year limited warranty with lifetime supportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Battery High Current High Temperature Short Circuit Tester Up to 1000A/2000ANext:
256/ 512 Channel 18650 Li Ion Battery Charge and Discharge Tester
512 Channel Polymer Capacity Battery Tester Machine
FEATURE
This equipment
mainly constitute by the computer system and control software, communication
interface and battery detecting cabinet. Battery detecting cabinet comprises a
fixture and placed the plate body of the fixture, charging, constant current
and constant voltage source discharge constant
current source, storage control circuit, current sampling circuit, voltage
sampling circuit, the main control CPU, data memory, microcontroller
programming and control panel.
FUNCTION
1. It is pecially used for chemical and
capacity separation of polymer lithium ion batteries.
2. Per device consists of a set of
completely independent MCU control system, using double-sided structure for our
customers to save plant area, the whole equipment can test constant current
charging and constant voltage of 512 monomer lithium ion battery;
3. The tester uses an unique constant current
constant voltage power, constant current to constant voltage switch without
impact, especially suitable for lithium ion battery charging and discharging
requirements;
4. The device can control center by using
P89C668 single chip computer, device can control by upper computer or break
away it with the external sampling circuit to complete constant current
constant voltage charging, constant current discharge test, capacity sorting
work.
5. Each battery test station has
independent constant current and constant voltage power.
SPECIFICATION
Project index |
Parameter index |
Model |
TMAX-BT0502-512-LP |
Demension |
1500*900*1900(mm) |
Working power supply |
AC 220V ±5% 50HZ |
Max Power Dissipation |
10000w |
Channel no |
512 |
Support battery height range |
10-95mm( stepless adjustment) |
Clamp spacing |
35mm |
Voltage measurement range |
DC100~4500mV |
Voltage accuracy |
±0.1%FS ±0.1%RD |
Voltage measurement range |
DC100-4500mV |
Voltage resolution |
1mV |
Constant voltage range |
DC2000~4500mV |
Minimum discharge voltage |
2000mV |
Charge discharge current range |
DC5~3000 |
Current accuracy |
±0.1%FS ±0.1%RD |
Current resolution |
1mV |
Time measurement range |
999min/step |
Time measurement erro |
±0.1% |
Working temperature |
0~40 ℃ |
Relative humidity |
≤85% |
