Battery Discharge Tester

256/ 512 Channel 18650 Li Ion Battery Charge and Discharge Tester

  • Model Number:

    TMAX-BT0502-512-C
  • Input Power:

    7000w
  • Dimension(L*W*H):

    1500*500*1900(mm)
  • Compliance:

    CE Certified
  • Warranty:

    2 Year limited warranty with lifetime support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

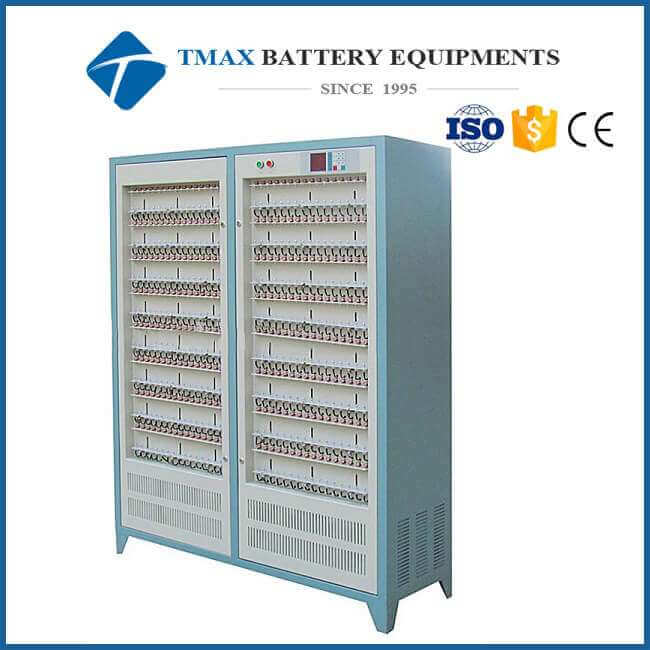

256/ 512 Channel 18650 Li Ion Battery Charge and Discharge Tester


FEATURE

This machine is mainly used for lithium battery charging and discharging cycle test. The test items include battery charging protection voltage, discharging protection voltage, capacity, etc. The equipment has four test steps: charging, discharging, shelving and cycling. By editing the corresponding step, the battery can be tested according to the set process.


Contact us for more details about Battery Charge Tester!


SPECIFICATION

Number of Device Channels

The whole machine has 256/ 512 channels in total

Workflow Control Mode

Whole cabinet control

Charging Mode

Constant current and constant voltage

Charging Cut-off Conditions

Voltage, current, time, capacity

Discharge Mode

Constant current

Discharge Cut-off Conditions

Voltage, time and capacity

Sampling Inspection Cycle

≤10s

Voltage Measurement Range

0 ~ 5V,

Resolution 1mV

Battery Voltage Range

Charging: 0 ~ 4.5V,

Discharging: 4.5 ~ 2V

Constant Voltage Range

3~4.5V

Voltage Accuracy

±0.05%RD+0.1%FS

Current Range

Charge 0.025-2A/3A/5A/6A,

Discharge 0.025-2A/3A/5A/6A,

Resolution 1mA

Current Accuracy

±0.1%RD+0.1%FS

Time Frame

Any setting within 0 ~ 30000 minutes, time unit is min

Time Accuracy

≤±0.1%

Fixture Type

Cylindrical four wire fixture

Fixture Spacing

35mm

Support Battery Height

0~90mm

Working Power Supply

Three phase four wire system, AC380V ± 5%, 50Hz,

power consumption ≤14KW for 256 channel

 and  28KW for 512 channel

Communication Mode

RS485, baud rate 57600

Overall Dimension

720mmWidth*500mmDeep*1840mmHigh)for 256 channel

1440mmWidth*500mmDeep*1840mmHigh

for 512 channel

Work Environment

Temperature: 0-40 ℃, relative temperature ≤ 85%

Full Load Operating Current

he maximum phase line is 30A, and the maximum zero line is 3A

Equipment Starting Current

The closing moment of air switch is about 60A

Machine weight

About 100kg for 256 channel/ 250 kg for 512 channel
