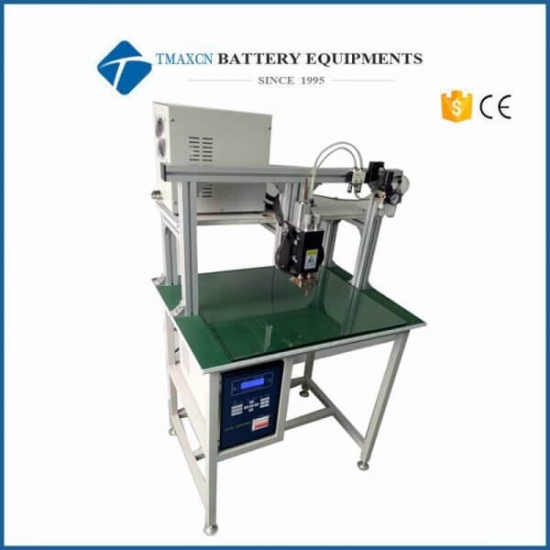

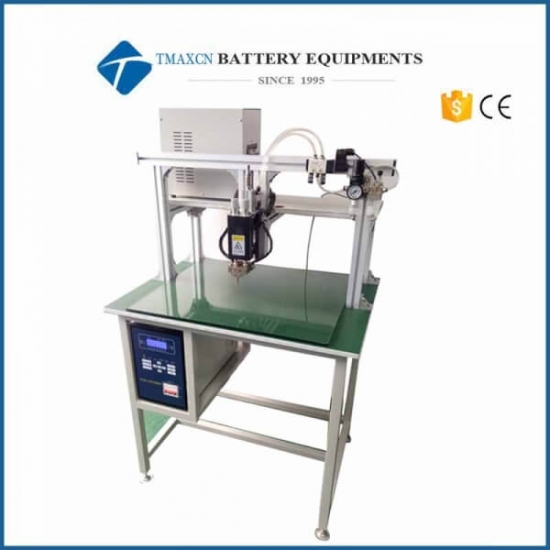

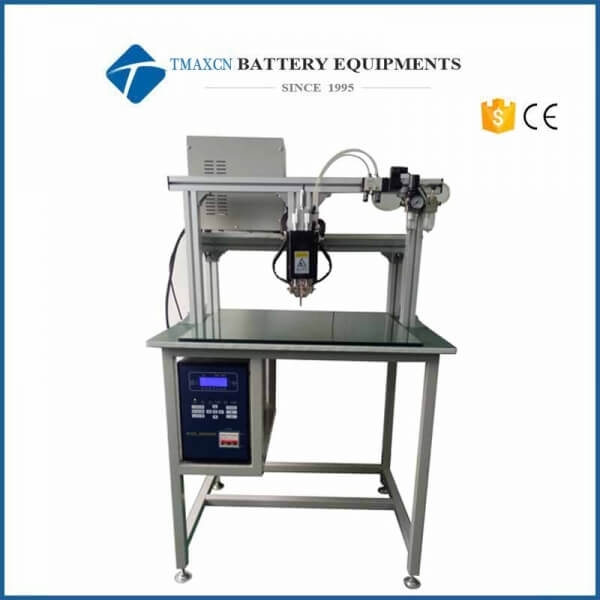

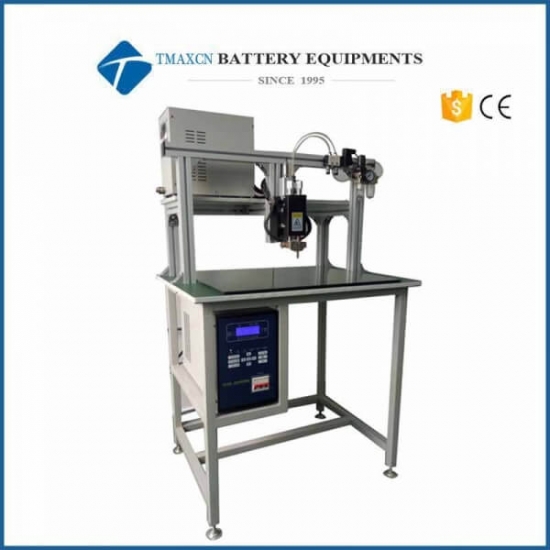

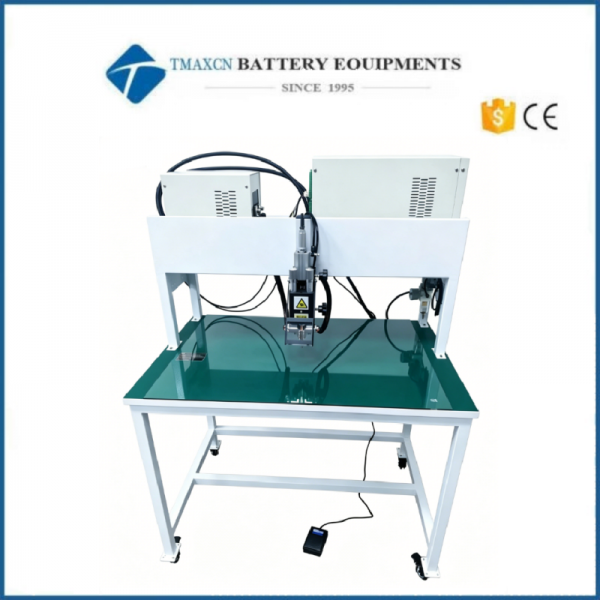

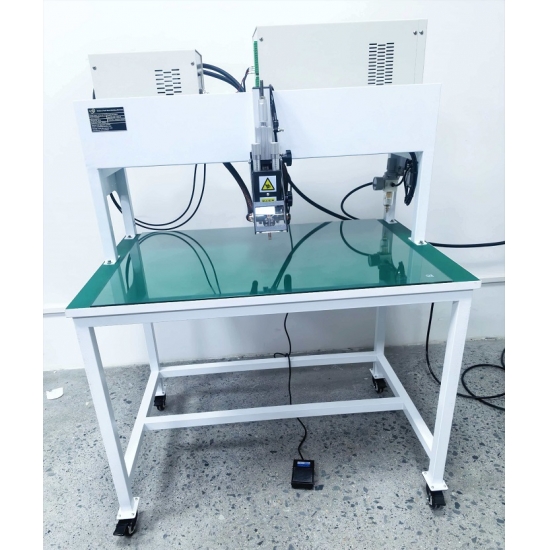

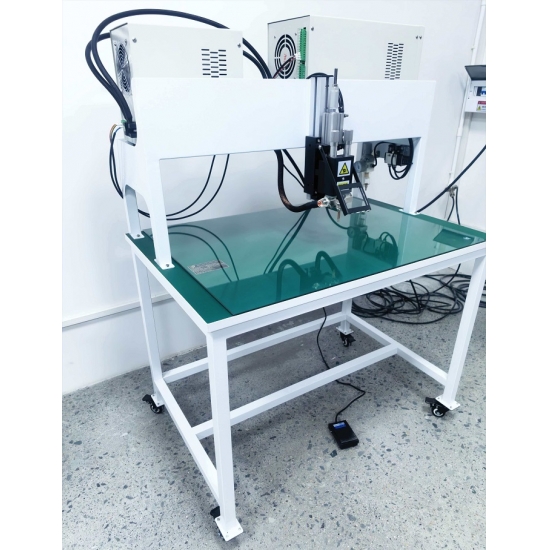

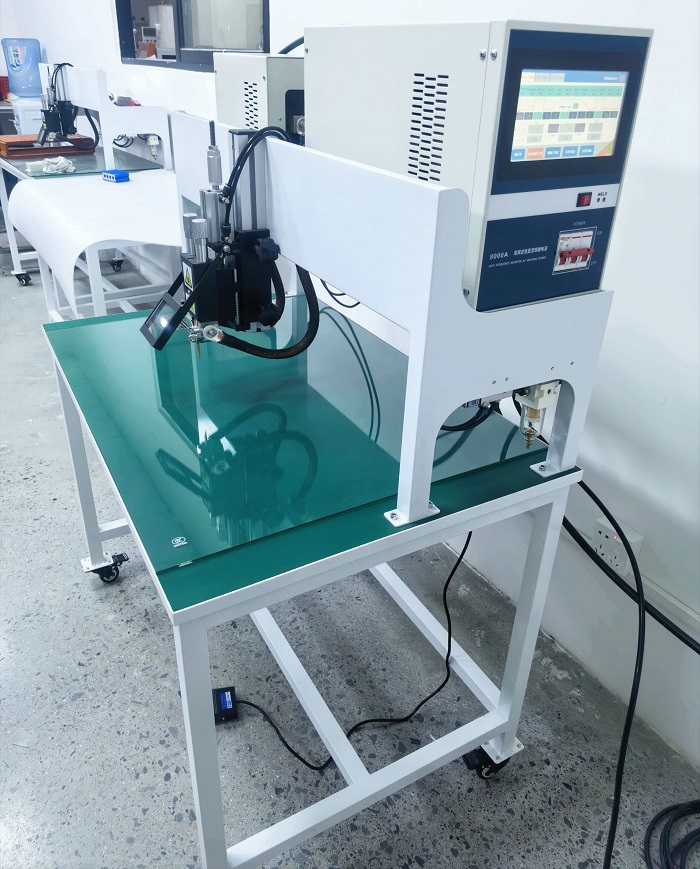

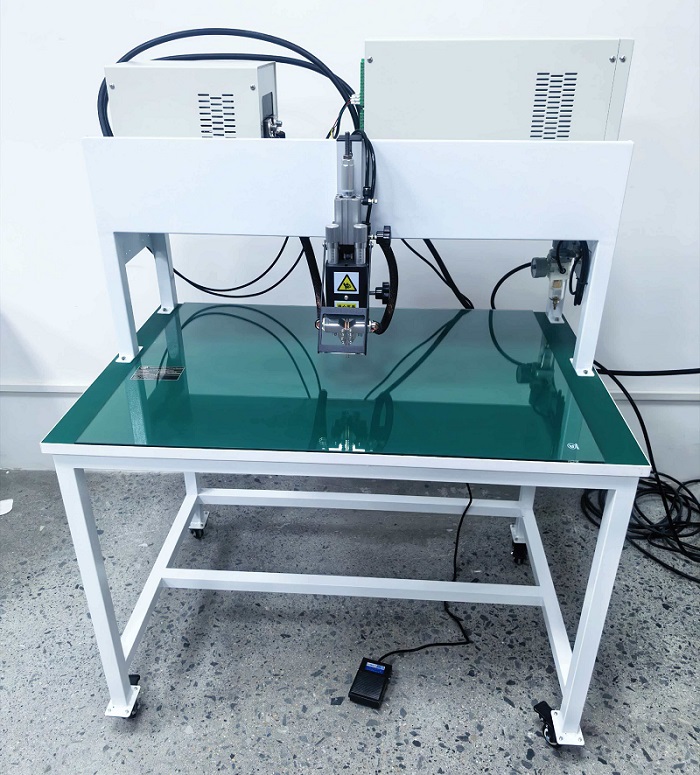

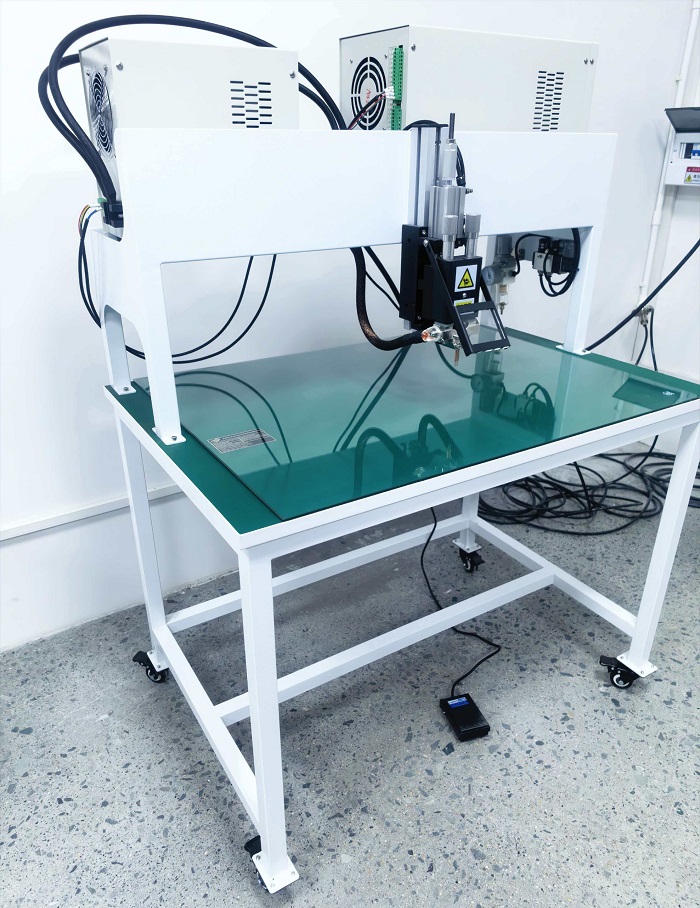

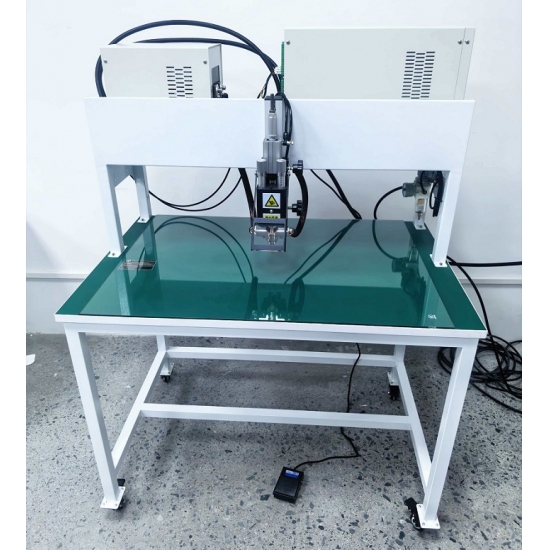

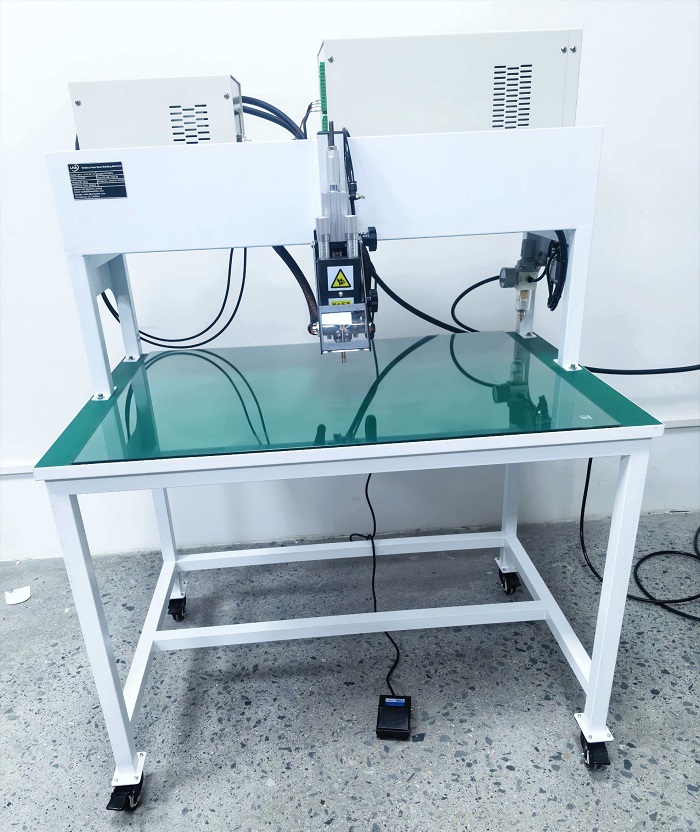

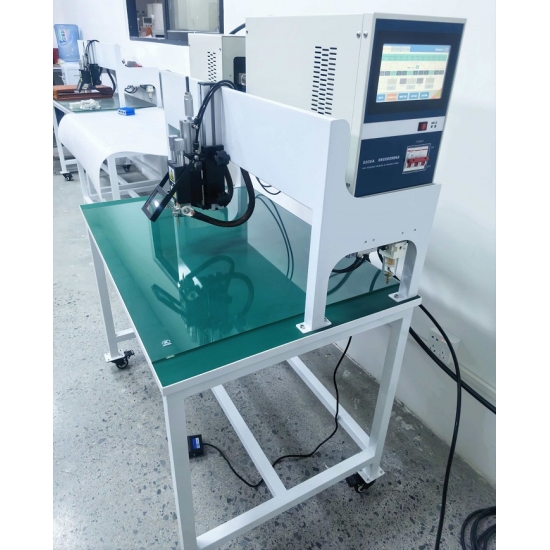

5000A/8000A Pneumatic Inverter DC Spot Welding Machine for Power Battery Pack
Model Number:
TMAX-DC-01Type:
PneumaticInput Power:
35KVADimension(L*W*H):
185x280x420mmCompliance:
CE CertifiedWarranty:
One years limited warranty with lifetime technical supportMOQ:
1Payment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13174506016
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Automatic PVC and Nickel Strip Cutting Machine for Alloy Strip CuttingNext:
18650/26650/32650 Cylindrical lithium Battery Labling Insulation Paper Sticking/Pasting Machine
5000A/8000A Pneumatic Inverter DC Spot Welding Machine for Power Battery Pack
Features:
*Suitable for 18650, 26650..Battery pack welding, like E-bike, scooter and electro mobile battery pack welding.
*Induction load voltage, feedback mode to control the constant voltage, to achieve high-quality welding.
*PRE HEAT, MAIN HEAT power mode, preheats before welding, to ensure a stable welding quality.
*To maintain the continuity of energy density welding time is short, reduce the base metal deformation and discolor.
*Easy to change from low current to high current, suitable for precision welding.
*Can set the upper and lower limits of the current, simply determine the quality of welding is good or not.
*The welding current increases with the welding time to ensure the welding results.
Advantages:
1.The current is rectified in order to supply DC welding current.
2.It helps to reduce the energy of iron core material.
3.Transform the electric energy into DC power
4.DC output.Heat concentration,the heat efficiency is increased, the welding process is stable, the welding quality is improved, and the electrode life is prolonged.
Get the best prices on electrode welding machine from Tmax.
Technical parameters:
Current |
5000A |
8000A |
Input Power |
AC 380V±10%, 50Hz±2Hz |
AC 380V±10% , 50Hz±2Hz |
Rated capacity |
25KVA |
35KVA |
Maximum output short circuit current |
5000A |
8000A |
Output current range |
800-5000A |
500-8000A |
Output voltage |
10V |
10V |
Inverter frequency |
4KHz |
4KHz |
Welding time |
1.0ms—99.0ms adjustable, accuracy:0.1ms |
1.0ms—99.0ms adjustable, accuracy: 0.1ms |
Welding pulse section |
2 |
3 |
Welding cycle period |
1 |
11 |
Working table size |
600mm*800mm |
600mm*800mm |
Welding range |
580mm*580mm |
580mm*580mm |
Adjustable height range of welding head |
10-150mm |
10-150mm |
Welding needle specification |
1.5mm-3mm/6mm optional |
1.5mm-3mm/6mm optional |
Adjustable distance between welding needles |
0-10mm |
0-10mm |
Adjustable stroke of cylinder |
5-30mm |
5-30mm |
Specification of secondary discharge cable |
95mm² |
95mm² |
Cable length |
500mm |
500mm |
Adjustable range of welding head pressure |
1-5kg |
1-5kg |
Welding speed |
0.5-0.8s/point |
0.5-0.8s/point |
Plane double needle welding thickness |
0.08-0.25mm plated nickel/pure nickel |
0.08-0.3mm plated nickel/pure nickel |
Welding thickness of convex point and flat needle |
0.15-0.3mm plated nickel/pure nickel |
0.2-0.5mm plated nickel/pure nickel |
Number of settable specifications |
8 |
99 |
Display |
LED |

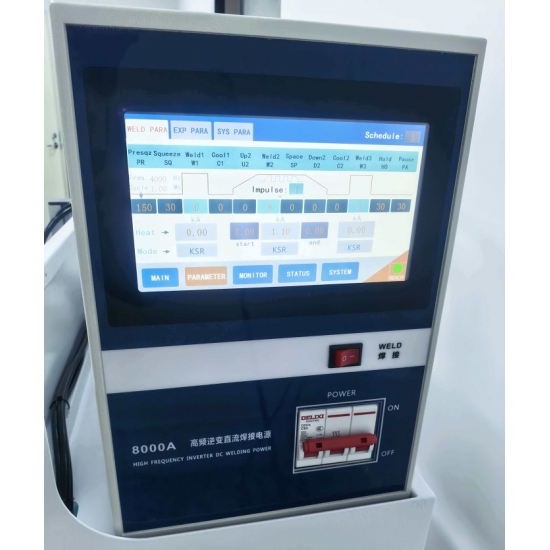

TFT 800X480 Capacitive touch screen |
Over limit alarm setting mode |
Current setting |
Current setting + current wave monitoring |
Welding mode |
Single welding |
Single or double welding |
control mode |
PWM |
PWM |
Control way |
1200V 200A IGBT |
1200V 300A IGBT |
Control mode |
Constant current |
Constant current and constant voltage |
Cooling |
Forced air cooling |
Forced air cooling |
Weight |
35KG |
40KG |
Weight of main machine |
430L*185W*280H mm |
455L*205W*315H mm |
Transformer size |
265L*180W*255H mm |
475L*200W*290H mm |
Whole main size |
800Lx600Wx1200H mm |
800Lx600Wx1200H mm |
Welding application |
Battery connection piece, hardware sheet, wire harness, terminal block, etc |
Battery connection piece, hardware sheet, wire harness, terminal block, etc |
