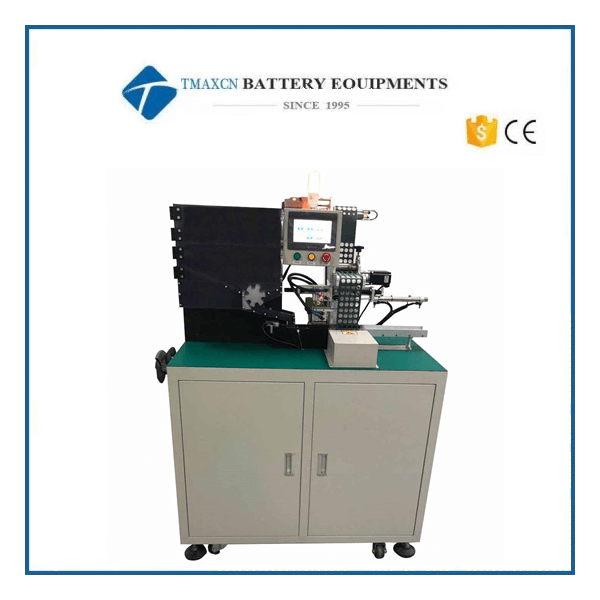

18650/26650/32650 Cylindrical lithium Battery Labling Insulation Paper Sticking/Pasting Machine
Model Number:
TMAX-MMBType:
AutomaticDimension(L*W*H):
1.3M*1M*1.3MCompliance:
CE CertifiedWarranty:
One year limited with lifetime supportPlace of Origin:
ChinaShipping Port:
Xiamen portPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
5000A/8000A Pneumatic Inverter DC Spot Welding Machine for Power Battery PackNext:
High Precision Battery Impedance Tester Internal Resistance Tester for Lithium Batteries

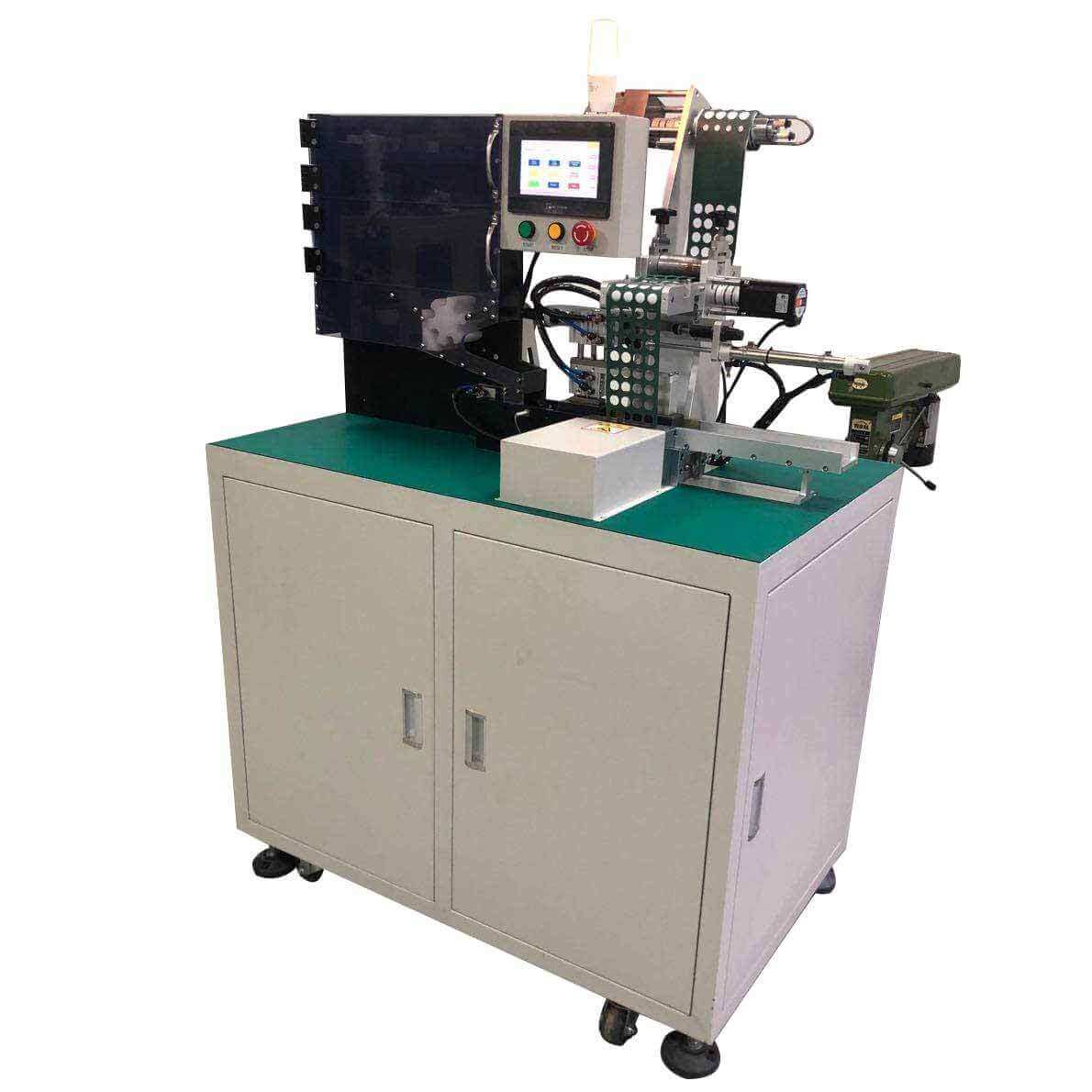

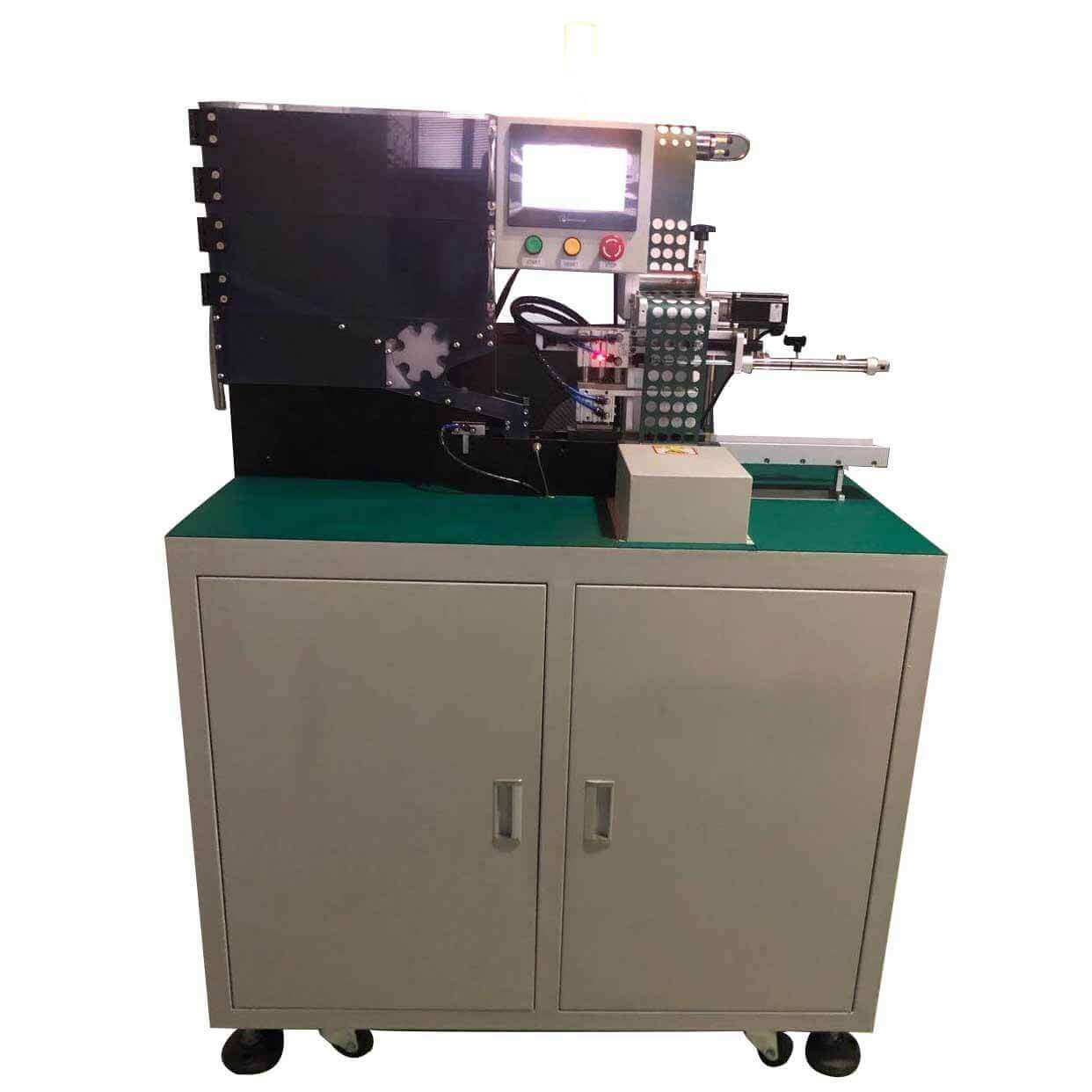

18650/26650/32650 Cylindrical lithium Battery Labling Insulation Paper Sticking/Pasting Machine
Function Description：
Paste insulation paper on the positive pole to prevent the short circuit.
Feature：
Equipment with fault alarm.
The equipment is easy to debug. east to operate.
High efficiency and low cost.
Note：
The machine can't be shared, standard machine is used for 18650, like the images showed, one machine is for one cell size only, it does not fit any other size of cell.
Technical Parameters：
Input gas source |
0.4-0.8Mpa |
Function Style |
Stepper drive with pneumatic |
Input voltage |
AC220V |
Sticker matrials |
Barley paper or PVC |
Sticker matrials size |
Barley paper Maxium 350mm;Scroll Internal Diameter 72-75mm |
Adaptable battery cell |
18650 battery Plus-n-Minus |
Power |
Electric power or pneumatic |
Control instrument |
7.5feet contact screen,PLC programming machine and step motor |
Electrodes to the body distance |
100 mm (Scalable adjustable) |
Producivity |
4000pcs/h; singal 4pcs |
External dimensions |
L1300*W1000*H1300mm |
Weight |
225kg |

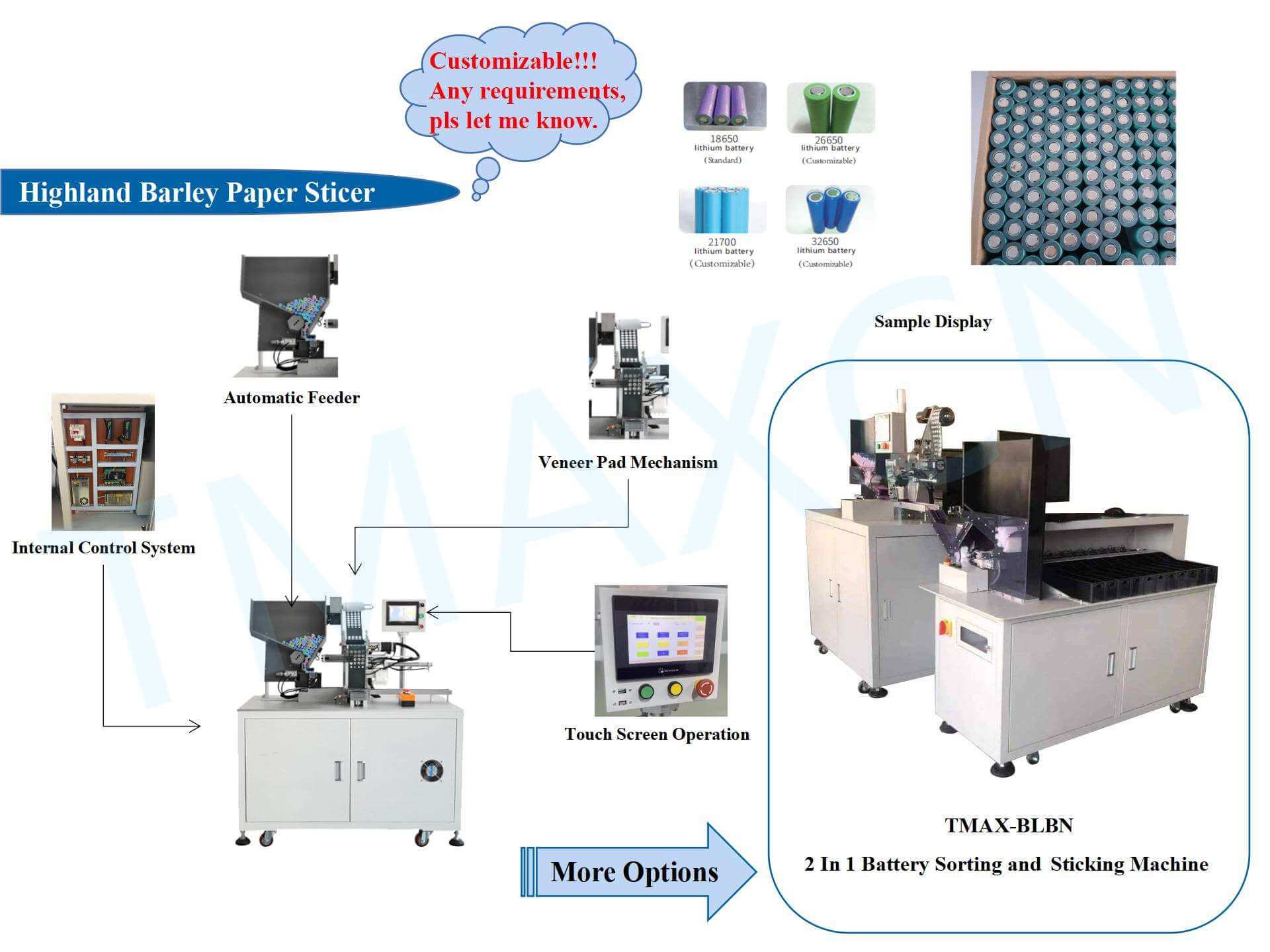

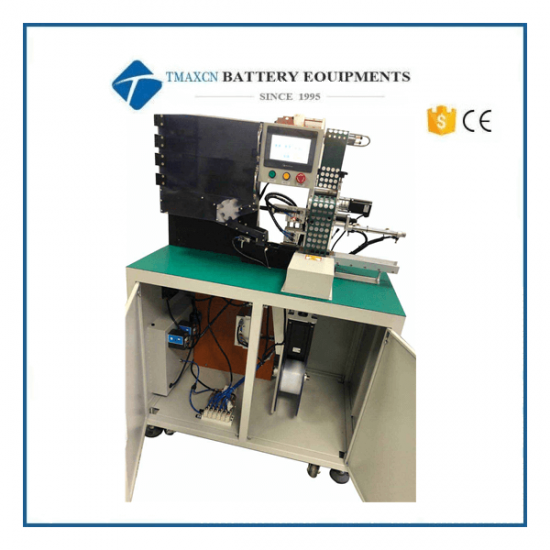

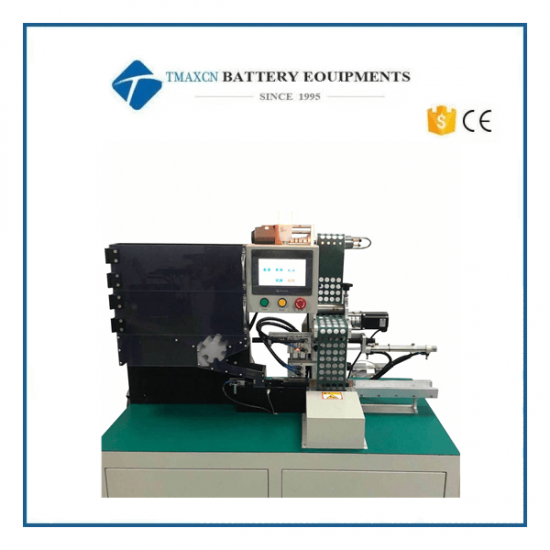

Product Details：
