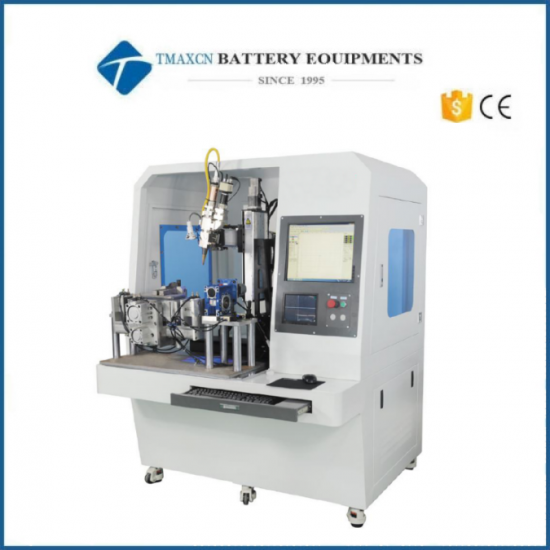

1500W Fiber Laser Welding Machine for Aluminium Sheet

A specialized model designed and developed for the welding of lithium-ion batteries (communication power batteries, energy storage, etc.). After being equipped with appropriate fixtures, this series of systems can complete laser welding of aluminum sheets with liquid injection holes for square battery shell covers.

1. Real time processing feedback control performance and waveform control function, achieving ideal welding conditions;

2. The combination design of the galvanometer scanning head enables spot welding and seam welding within the processing range;

3. The gradual in and out function completes the overlap at the beginning and end of the seam welding;

4. The setting of input and output terminals (signals) makes automation easier;

5. Standardized workbench design, simple and flexible debugging of welding fixtures;

6. Strong compatibility of battery models, equipped with universal welding fixtures;

7. PC control operation is convenient, with trajectory teaching function, and easy to use;

8. Equipped with three axes as standard, it can be expanded to four axis linkage to achieve any three-dimensional welding in space;

9. Touch screen human-machine dialogue interface, user-friendly operation, simple and intuitive.

1. Configuration power supply: AC380V, 50Hz, voltage fluctuation range:+10%~-10%;

2. Compressed air: 0.2~0.8MPa, with a pressure fluctuation of ± 1% (clean air after water removal, oil free, filtration, and pressure stabilization);

3. Equipment specifications:

1) Equipment weight: approximately 1000Kg;

2) Outline dimensions: approximately L (1.5mm) * W (1.2mm) * H (1.6mm);

3) Appearance color: light gray.

4. Environmental requirements:

1) Environmental temperature: 25 ± 5 ℃;

2) Relative humidity: 30% to 75% RCH, ensuring that the on-site air is dry and unobstructed, without acid or alkali corrosion;

3) Ground wire: protective grounding.
