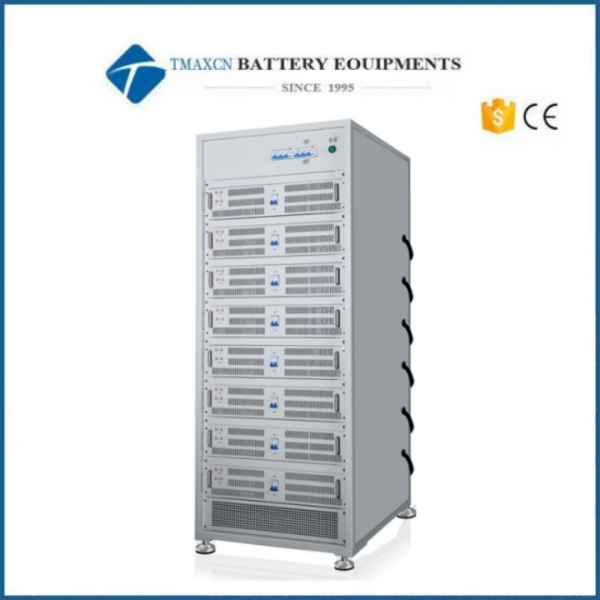

120V 30A Regenerative Type Battery Pack Charge Discharge Aging Machine
Model Number:
TMAX-TG8000-120V30ACompliance:
CE CertifiedWarranty:
One years limited warranty with lifetime technical supportPlace of Origin:
ChinaMOQ:
1Payment:
L/C D/A D/P T/T Western UnionDelivery Time:
15 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
84V10A 60A Battery Pack Comprehensive TesterNext:
Battery Repair Instrument for LFP and NMP Cell
120V 30A Regenerative Type Battery Pack Charge Discharge Aging Machine
1. System Function Description:
TG8000 series electric energy feedback battery charging and discharging aging system is a test system of charged energy feedback power supply system, which can realize AC DC conversion to charge the electric energy of the grid to the battery module, and can also feed back the electricity released from the battery module to the grid in the form of grid connected inverter, so that this part of electric energy can be recycled. The equipment is a two-way battery charging and discharging power supply processing system controlled by computer background software.
2.Applicable scope of equipment:
1) Battery module production inspection of battery manufacturers;
2) EV/HEV power battery system high current charge and discharge detection;
3) Carry out battery simulation test under actual road conditions;
4) The research institute conducts high current charging and discharging tests on battery modules, battery performance tests, etc;
5)Daily battery module maintenance of battery factory and charging station;
3. Technical parameters:
Indicator items
Indicator parameters
Equipment model
TG8000-120V30A
Number of single machine channels
AC 380V ±15% / 50Hz±2Hz
Maximum output power
18KW
Charge discharge power factor
>0.99 (full load)
Total harmonic distortion rate of charging and discharging current
<5% (full load)
Overall efficiency
85% MAX
Sampling resolution
AD:24bit
Input impedance
≥1MΩ
Voltage
Output voltage range
Charging: 5V~120V, discharging: 5V~120V continuously adjustable
Accuracy
±0.1%FS
Sampling time (S)
<1S
Stability
±0.1%FS
Current
Output current range
Charge and discharge: 100mA~30A continuously adjustable
Accuracy
±0.1%FS
Sampling time (S)
<1S
Stability
±0.1%FS
Power
Accuracy
±0.1%FS
Time
Step time range
≤ (365 * 24) hours/step time format supports 00:00:00 (H, min, S)
Rise time of charging and discharging current
(5%~95%)
≤20ms
Charge discharge switching time
≤40ms
Data record
Data recording conditions
time frame Δ t: (10ms-60000 s)
Voltage Δ U:(7.4V ~ 120V)
Current Δ I:(0.1 ~ 30A)
Recording frequency
50Hz
Charge
Charging mode
Constant current charging, constant voltage charging, constant current constant voltage charging
Cut off conditions
Voltage, current, relative time, capacity, unit voltage, unit temperature
Discharge
Discharge mode
Constant current discharge
Cut off conditions
Voltage, current, relative time, capacity, unit voltage, unit temperature
Loop
Cycle test range
1~65535 times
Number of work steps per cycle
254 step
loop nesting
With nested loop function, supporting up to 3 layers of nesting
Protection
Security protection (global protection)
Power loss data protection
The safety protection conditions can be set, and the setting parameters include: voltage upper limit, voltage lower limit, current upper limit, current lower limit, energy, monomer voltage, monomer temperature
Equipment protection function
Transformer over temperature protection, output short circuit protection, power module over temperature protection, equipment over-voltage protection, equipment over-current protection, equipment battery reverse connection protection, emergency shutdown.
Equipment exhaust mode
Forward air and backward air
Whether the equipment has emergency stop function
Yes
Isolation mode
High frequency isolation
Cooling mode
Forced air cooling
Channel characteristics
The constant current source and constant voltage source adopt independent double closed loop structure
Channel control mode
Independent control
Voltage and current detection sampling
Four wire connection
Weight
<800kg
Degree of protection
IP20
Noise
<75dB
Database
MySQL database is used for centralized management of test data, which can be uploaded to the client's background server
Communication mode of upper computer
Based on TCP/IP protocol
Data output mode
EXCEL, TXT, charts
Working temperature
-10℃~40℃

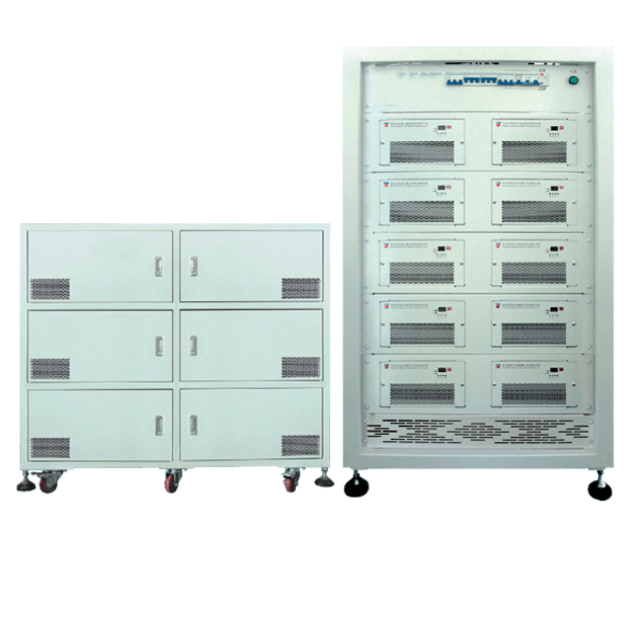

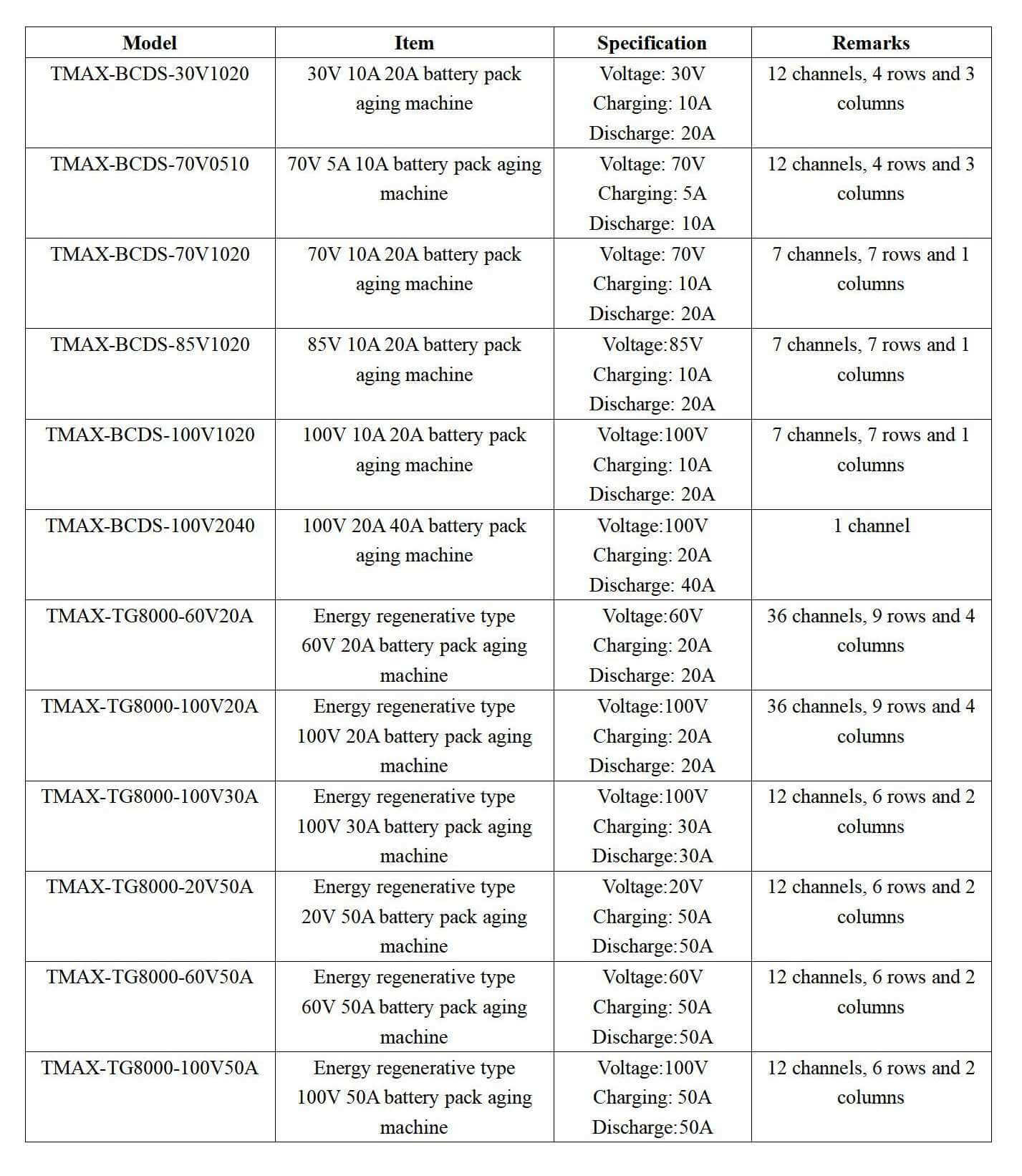

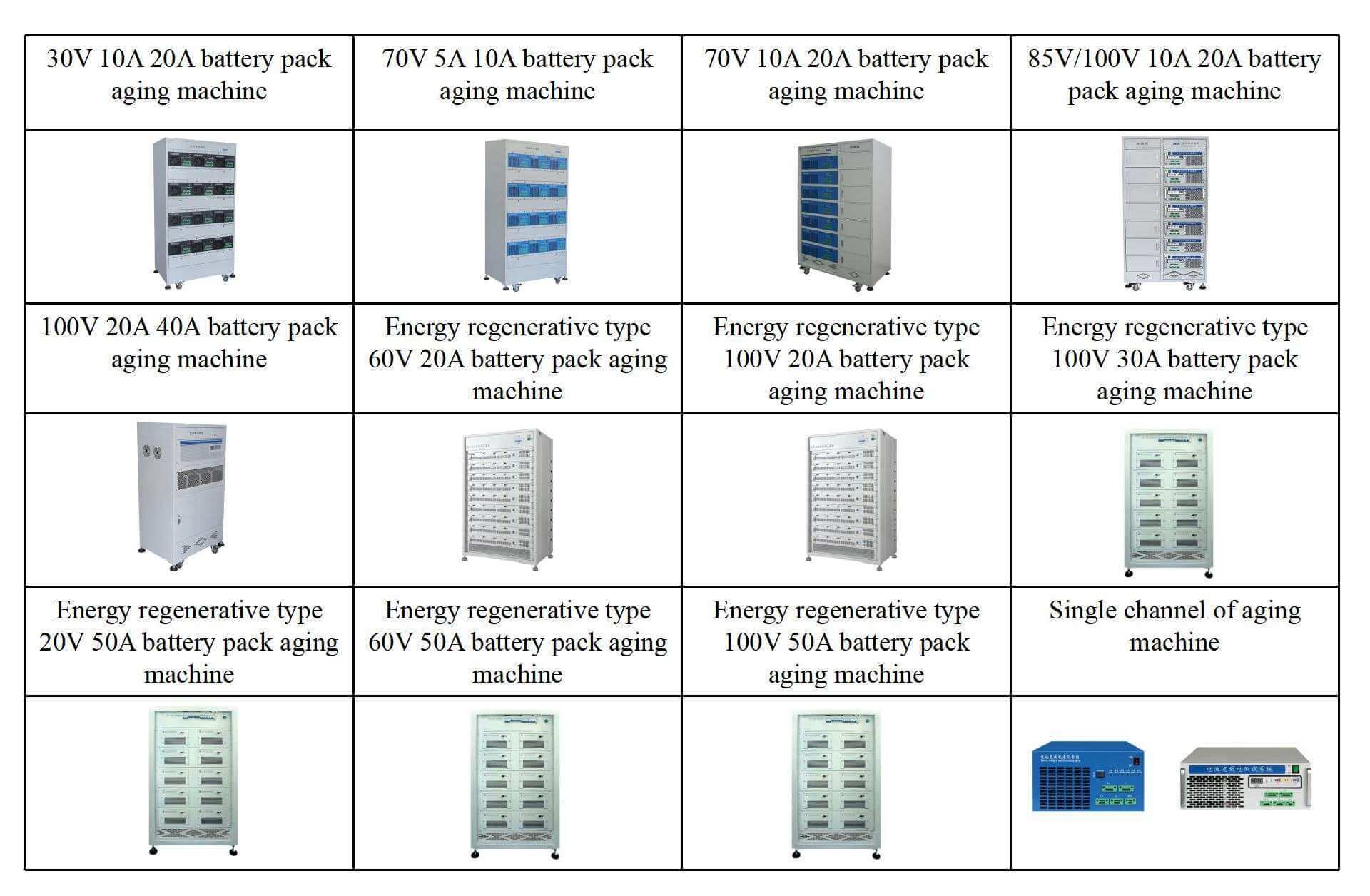

4.Selection of battery pack charge and discharge aging machine:
