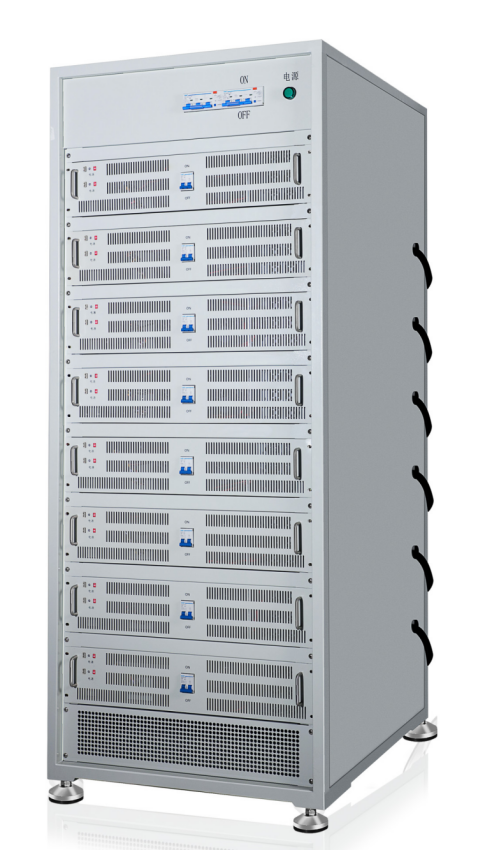

100V 120A Charging and Discharging Battery Pack Aging Machine

Using a 32-bit ARM main control chip

Significantly improves execution speed and accurately records changes in battery voltage status

Scan the code to search for data

Accurate retrieval of battery aging parameters on the computer through barcode scanning

Protection and abnormal warning

Equipped with anti reverse connection function, voltage upper and lower limit protection setting protection, testing abnormal alarm prompt

CCCV charging

During the charging process, there is no gap transition and no voltage or current surge. It can effectively prevent protection actions and secondary protection actions caused by islanding effects on PCBs, or overshoot caused by thermal concentration of electrode ears due to peak currents. Stable current and voltage sampling, high accuracy, and good long-term stability

Voltage clamp

Voltage clamp is used to set the voltage to prevent damage to the battery or battery pack protection board during battery protection operations or equipment abnormalities during charging

Customizable

① Battery pack temperature sampling function; ② Single cell voltage sampling function of battery pack;

③ Frequency output function;

④ Switch action function;

⑤ Connect MES system functions

SN

Item

Specification

1

Product model

TMAX-TG8002-100V120A

2

Chassis size

H：1938mm、L：950mm、W：985mm

3

Equipment weight

339KG

4

Operating ambient temperature

1-50℃

5

Operating environment humidity

0-90%RH

6

Input power supply

AC380V±15%/50Hz+2Hz

7

Equipment operating temperature

0-35℃

8

Work noise

65-75dB

9

Maximum output power

96KW

10

Voltage range

0-100V

11

Charging and discharging

0-100V,Continuously adjustable

12

Charging and discharging output current range

200mA-120A,Continuously adjustable

13

Voltage and current resolution

0.01mV、0.01mA

14

Accuracy

±0.1%FS
