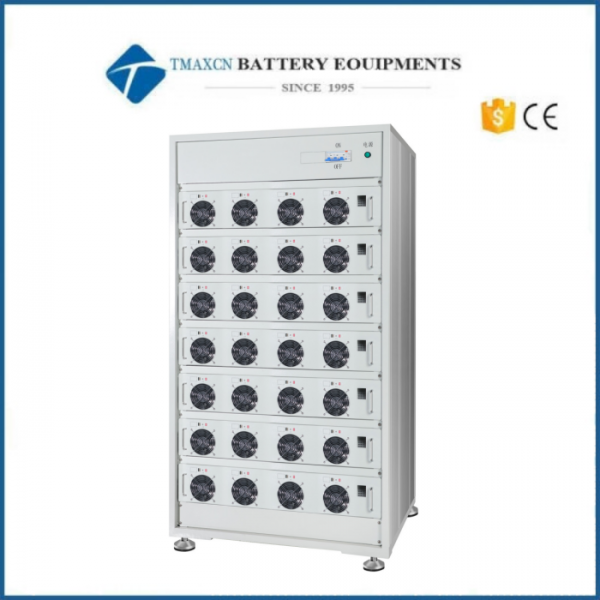

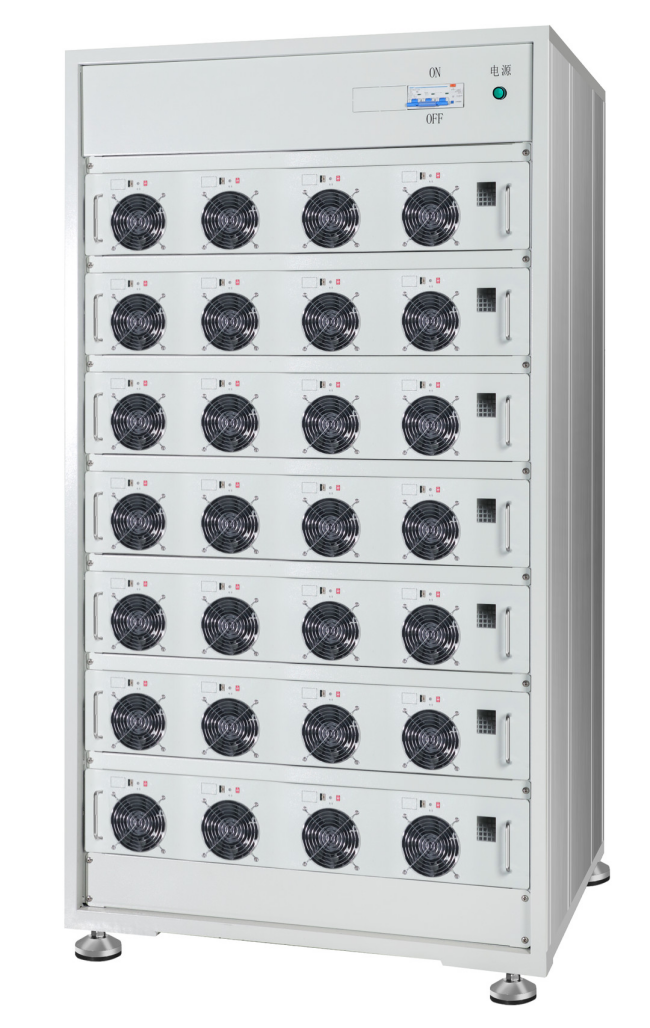

100V 10A 20A Battery Pack Aging Machine

Using a 32-bit ARM main control chip

Significantly improves execution speed and accurately records changes in battery voltage status

Scan the code to search for data

Accurate retrieval of battery aging parameters on the computer through barcode scanning

Protection and abnormal warning

Equipped with anti reverse connection function, voltage upper and lower limit protection setting protection, testing abnormal alarm prompt

CCCV charging

During the charging process, there is no gap transition and no voltage or current surge. It can effectively prevent protection actions and secondary protection actions caused by islanding effects on PCBs, or overshoot caused by thermal concentration of electrode ears due to peak currents. Stable current and voltage sampling, high accuracy, and good long-term stability

Voltage clamp

Voltage clamp is used to set the voltage to prevent damage to the battery or battery pack protection board during battery protection operations or equipment abnormalities during charging

Supported testing projects

① Battery cycle life test;

② Battery capacity test;

③ Test of battery charging and discharging characteristics;

④ Battery charging and discharging capacity test

Data protection

Support for power outage, manual shutdown, step-by-step testing from data files, or online parameter modification, and can set safety protection conditions

Customizable

① Battery pack temperature sampling function; ② Single cell voltage sampling function of battery pack;

③ Frequency output function;

④ Switch action function;

⑤ Connect MES system functions

SN

Item

Specification

1

Product model

TMAX-TG5009-100V1020

2

Chassis size

H：1653mm、L：970mm、W：845mm

3

Equipment weight

240-340KG

4

Operating ambient temperature

1-50℃

5

Operating environment humidity

0-90%RH

6

Input power supply

AC380V±15%/50Hz+2Hz

7

Equipment operating temperature

0-35℃

8

Work noise

65-75dB

9

Maximum output power

Charge:28KW

10

Voltage range

Discharge:56KW

11

Charging current

0-100V

12

Discharge current

0.3-10A, accuracy ± 1 ‰

0.3-20A, accuracy ± 1 ‰

13

Voltage and current resolution

0.1mV、0.1mA

14

Accuracy

±0.1%FS
