Small Hydraulic Press

100T Electric Powder Tablet Press with Holding Time 0-999.59 Minutes

  • Model Number:

    TMAX-DYP-100TFZ
  • Compliance:

    CE Certified
  • Warranty:

    One year limited standard warranty
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

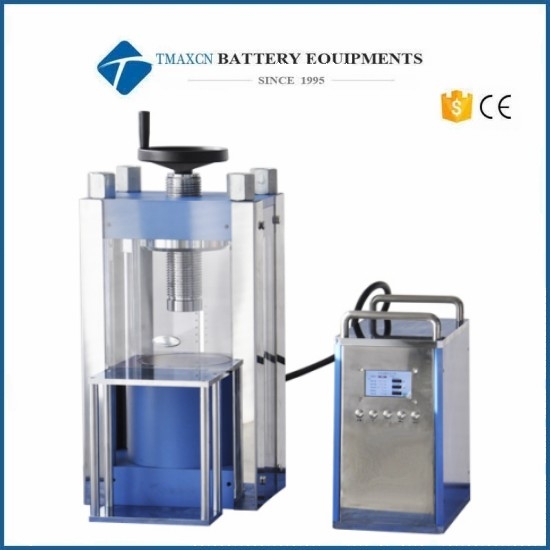

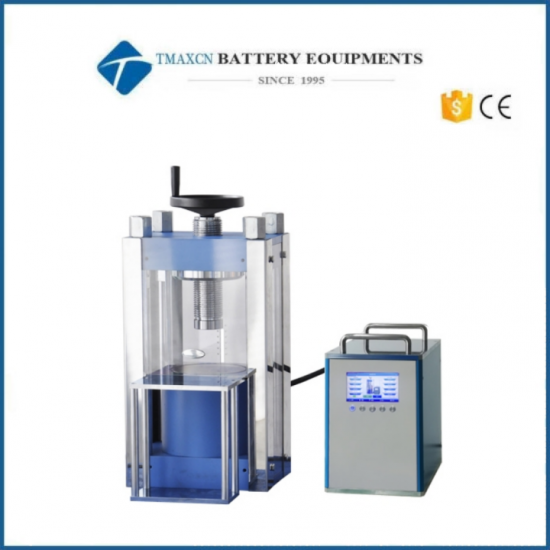

100T Electric Powder Tablet Press with Holding Time 0-999.59 Minutes









Application field





Operation interface (Manual mode)



Standard interface: you can set various parameters, pressure, die withdrawal, time, sample size, etc., in this interface alone

Pressurization button: Press according to the parameters set on the interface.

Stop button: Press the stop button during the pressurization process to stop the pressurization.

Demoulding button: Press the demoulding button to release the sample according to the demoulding pressure.

Timing switch: The timing function can be turned on and off.





Operation interface (Automatic mode)



Activate button: Can be pressed according to the multi-stage pressurization program.

Stop button: During the pressurization process, you can stop the pressurization process.

List/Curve: The current display state can be switched between list and curve





Setting interface



Tap Settings on the operation screen to enter the Settings screen. The Settings screen has four ICONS.

Program Settings: you can set up multiple pressure procedures and pressure holding time.

Sample setting: The shape and size of the sample can be set to facilitate the user to calculate the pressure of the sample.

Data management: Previously saved data records can be invoked and modified..

System Settings: Administrators can set various parameters, enter the password "666"




Setting interface



Multi-segment program Settings: Up to 5 segments of pressurized programs can be set.

Invoke button: Call the set parameters to the automatic operation interface for pressure.

Save button: Save the set parameters to the database for later invocation.

Back button: Returns to the Settings screen




Operation procedure











Technical parameter

Instrument type

PCD-100S

Pressure range

1-100.0 tons

Piston diameter

Chrome plated cylinder Φ200mm(d)

Pressurization process

Programmed pressure - programmed pressure retention - timed pressure relief

Holding time

1 s to ∞ s

Pressure conversion

The program automatically converts the pressure of the sample

Liquid crystal display

7 inch LCD screen

Equipment protection

Steel plate protection with plexiglass doors

Cylinder stroke

50mm(T)

Space size

260x250mm(MXN) can be configured with a tall column

Overall dimension

850x500x950mm(LxWXH)

Equipment power supply

1500W(220V/110 can be customized)

Equipment weight

520Kg

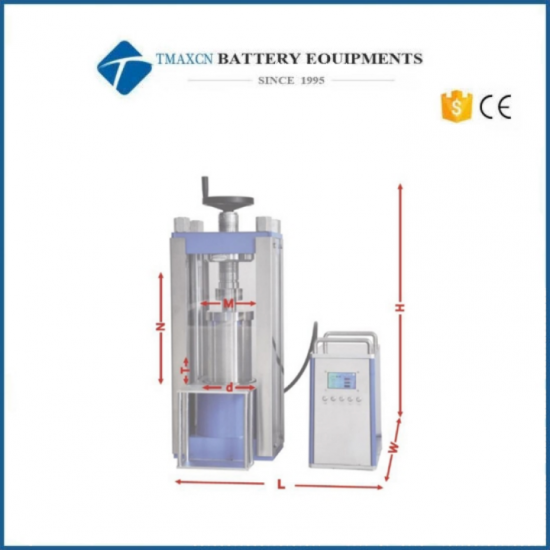

Powder tablet press size diagram
